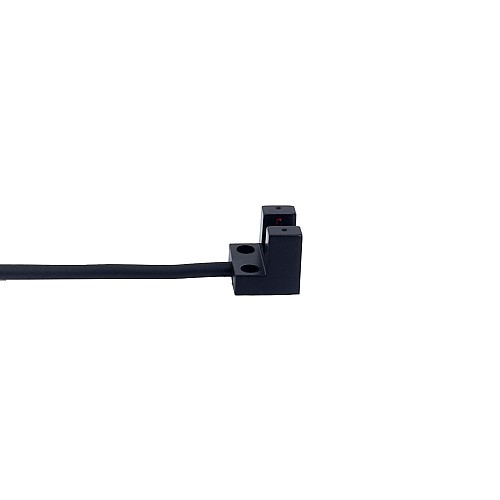

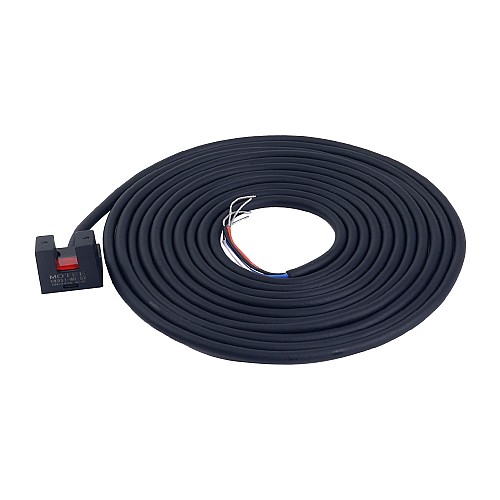

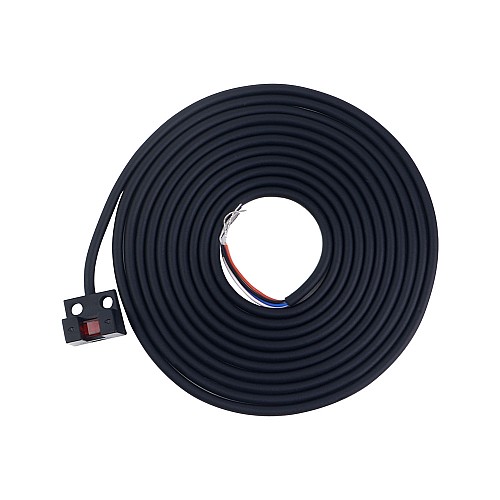

Ultra-compact L-shaped Pre-wired Photomicrosensor EE-SX95

This pre-wired, ultra-small size L-shaped EE-SX95 series sensor offers a output type of NPN and reliable sensing slot depth of 6.5mm. It can be mounted using M2 or M3 screws. It features in indication of sensing window for easy confirmation of insertion depth and bright indicator for confirmation from many directions. It is a perfect sensing solution for space constrained locations and provide a compact, low-cost method to detect workpieces in automotive, food, transportation, and material handling industries, etc.

Features

• Mount using M3 or M2 screws
• Reliable sensing slot depth of 6.5mm
• Indication of sensing window for easy confirmation of insertion depth
• Bright indicator for confirmation from many directions
• Both light-ON and dark-ON outputs provided
• Load short-circuit protection circuit provided
• 2m cable length

Specifications

• P/N: EE-SX951-W
• Shape: L-shaped
• Output Type: NPN
• Repeat Accuracy: < 0.03mm
• Sensing Distance: 5mm(slot width)
• Standard Sensing Object: Opaque 1.8x0.8mm min.
• Differential Travel: 0.025mm max.*1
• Light Source(Wave Length): Infrared LED(940nm)
• Indicator: Ligth Indicator(red LED)
• Power Supply Voltage: 5 to 24VDC±10%, ripple(p-p): 10% max.
• Load Power Supply Voltage: 5 to 24VDC
• Load Current: 50mA max.
• OFF Current: 0.5mA max.
• 50mA load current with a residual voltage of 0.7V max.
• 5mA load current with a residual voltage of 0.4V max.

Connection
