LK86-60DL10S3-610
Input Shaft Diameter(mm)14
Input Shaft Length(mm)30
Stroke Length(mm/ft)610/2.00
Max. Speed(mm/s) 500
Question

Downloads

LK86-60DL10S3-610.stepSTEP · 3.15MBLog in to downloadLK86-60DL10S3-610_Full_Datasheet.pdfPDF · 143.63KBLK86_User_Manual.pdfPDF · 837.46KB
Same series
ModelInput Shaft Diameter(mm)Input Shaft Length(mm)Stroke Length(mm/ft)Max. Speed(mm/s) PriceStock
LK60-23DL103-510821510/1.67166C$225.50In stock
LK60-40DL10S3-110825110/0.36500C$165.02In stock
LK60-40DL10S3-210825210/0.69500C$174.81In stock
LK60-40DL10S3-310825310/1.02500C$198.72In stock
LK60-40DL10S3-410825410/1.35500C$208.80In stock
LK60-40DL10S3-410-SALE825410/1.35500C$203.97In stock
LK60-40DL10S3-510825510/1.67500C$225.50In stock
LK86-24DL103-510830510/1.67166C$286.56In stock
LK86-24DL103-510-SALE830510/1.67166C$279.94In stock
LK86-60DL10S3-2101430210/0.69500C$230.12In stock
LK86-60DL10S3-3101430310/1.02500C$248.83In stock
LK86-60DL10S3-4101430410/1.35500C$271.01In stock
LK86-60DL10S3-5101430510/1.67500C$286.56In stock
LK86-60DL10S3-6101430610/2.00500C$318.81In stock
LK86-60DL10S3-8101430810/2.66500C$381.03In stock
LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 610mm
This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload o... Read More
0 reviews • Write a review
from
C$318.81
5 + C$309.50
10 + C$300.73
50 + C$292.44
100 + C$284.58

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

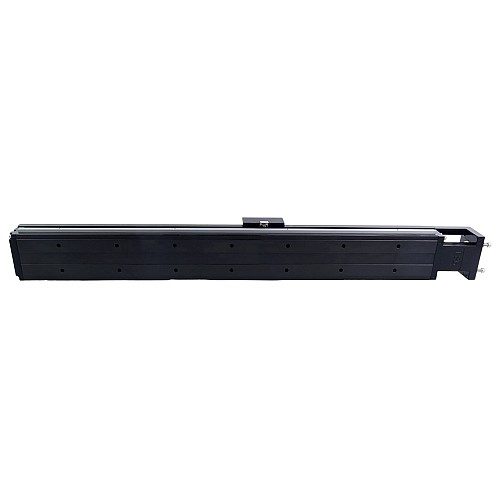

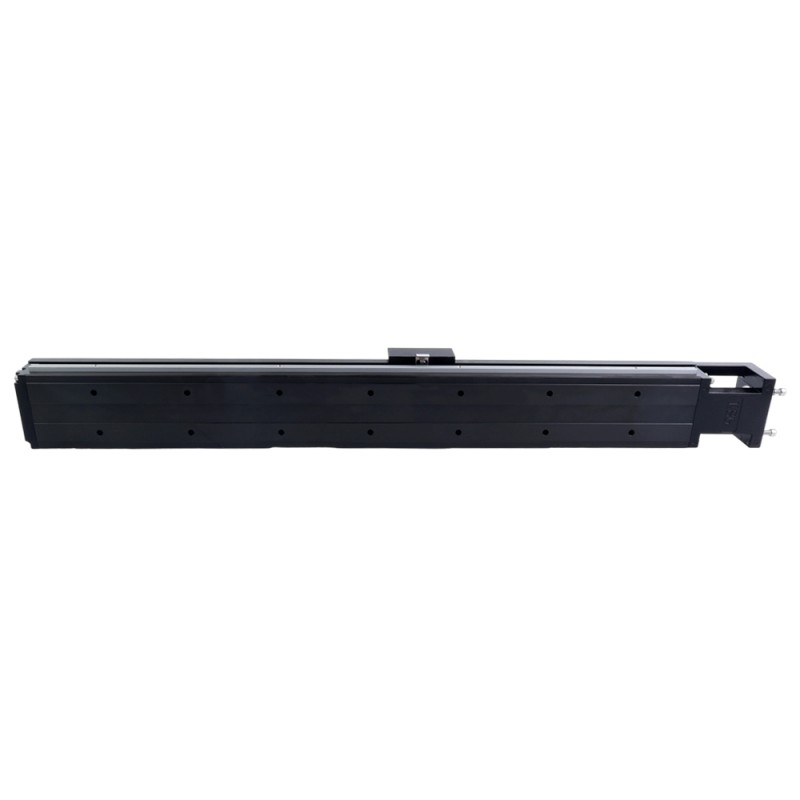

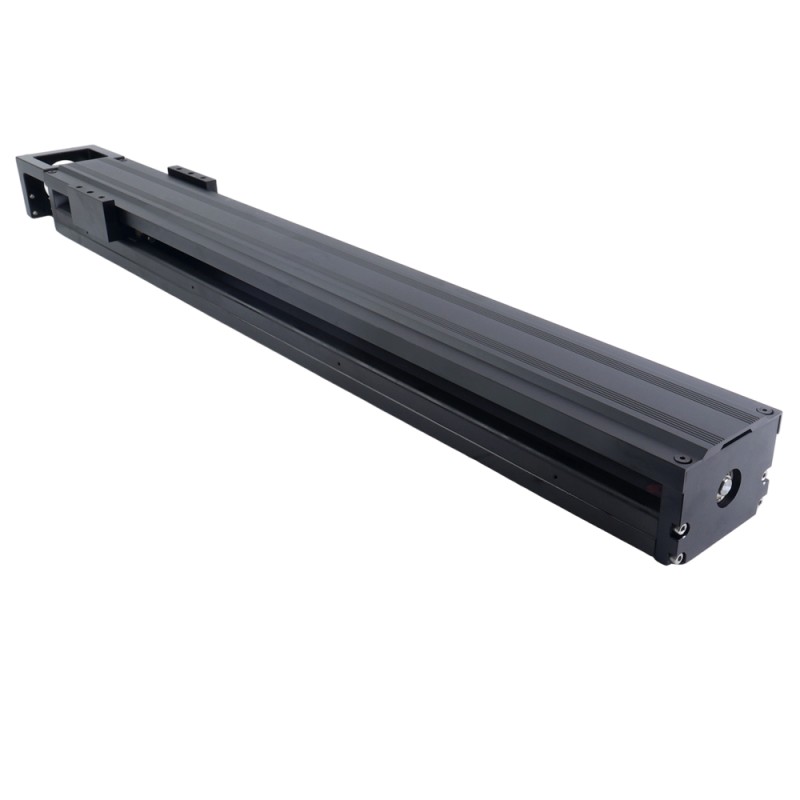

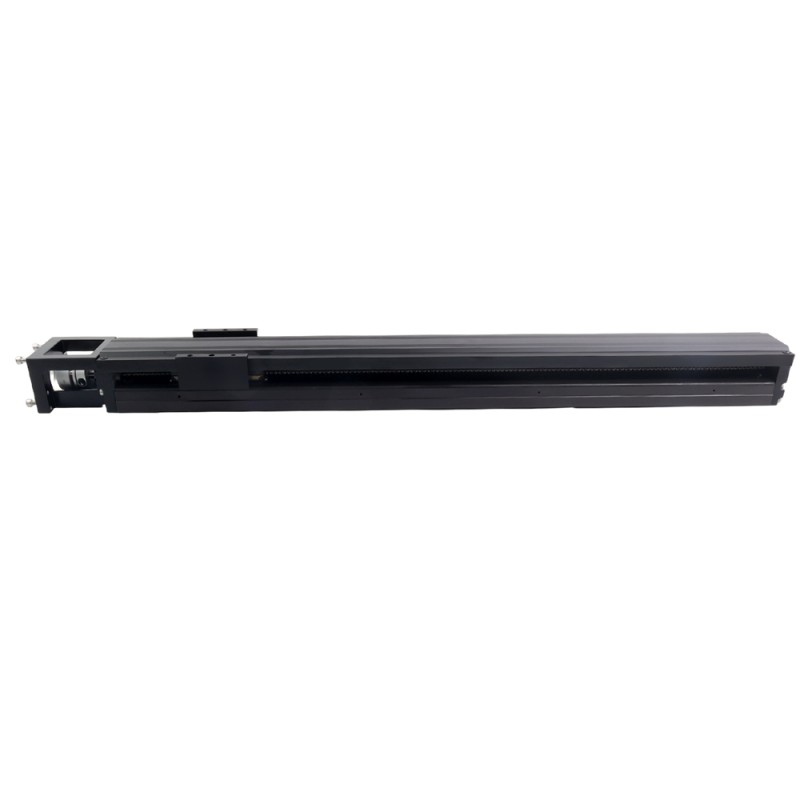

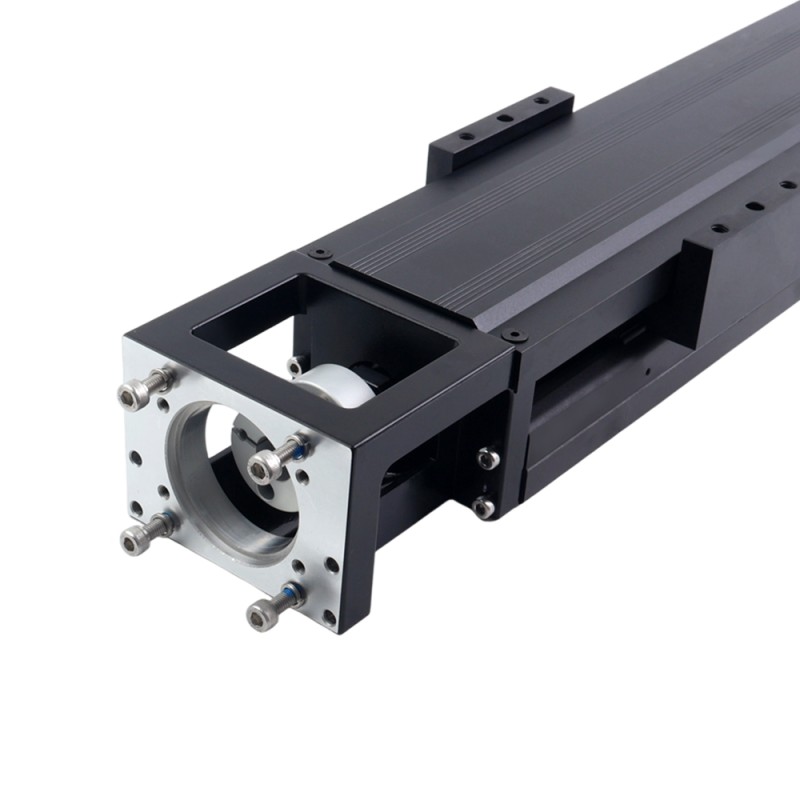

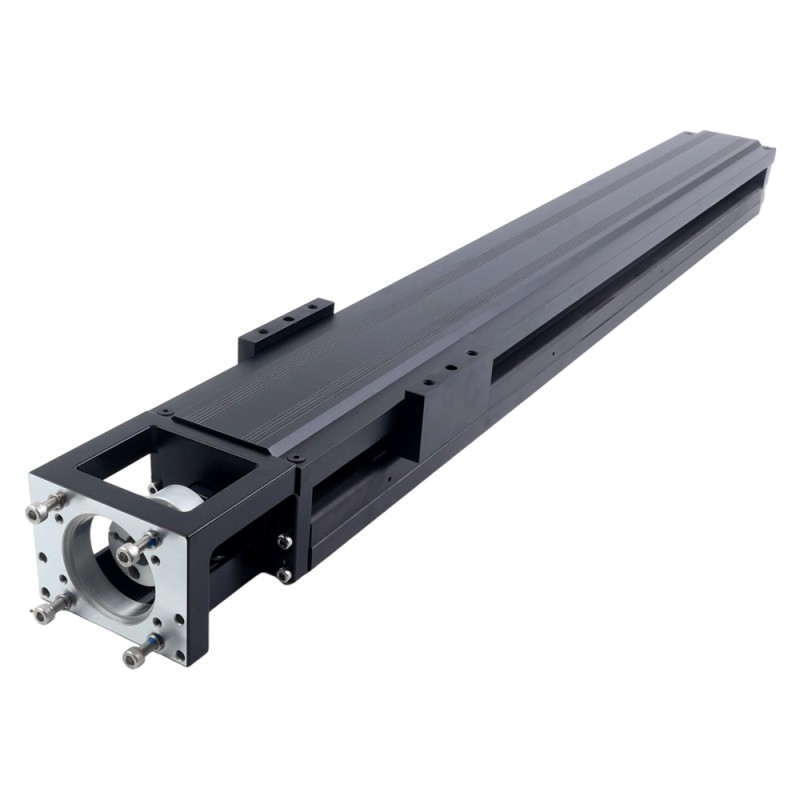

This LK86 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 40kg(88.18lb) and maximum vertical payload of 12kg(26.46lb), a stroke length of 610mm(2.00ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LK series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • Part Number: LK86-60DL10S3-610
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.033ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Maximum Horizontal Payload: 40kg(88.18lb)
  • Maximum Vertical Payload: 12kg(26.46lb)
  • Rated Thrust: 694N
  • Sensor Type: NPN
  • Number of Sensors: 3
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ15mm
  • Motor Frame: 60mm Servo Motor(400W)
  • Stroke Length: 610mm(2.00ft)
  • Input Shaft Length: 30mm
  • Input Shaft Diameter: 14mm
Physical Specification
Input Shaft Diameter(mm) 14
Input Shaft Length(mm) 30
Lead(mm/ft) 10/0.033
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 40/88.18
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Max. Vertical Payload(kg/lb) 12/26.46
Motor Mounting Flange 60mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 694
Stroke Length(mm/ft) 610/2.00
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
YS Series 1 Axis 12.00Nm(1699.34oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
YS Series 1 Axis 12.00Nm(1699.34oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
This CNC kit includes: 1 x 34HS59-6004D-E1000: Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in) with Encoder 1000PPR(4000CPR) 1 x CL86Y: Y Se..
from
C$148.18
Add to Cart
Add to Wish List Compare this Product
Quickview

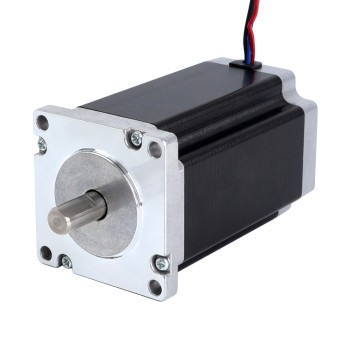

S Series Nema 24 Bipolar 1.8deg 4.2Nm(594.77oz.in) 4.2A 60x60x100mm 4 Wires
S Series Nema 24 Bipolar 1.8deg 4.2Nm(594.77oz.in) 4.2A 60x60x100mm 4 Wires
This is the strongest Nema 24 stepper CNC motor with a step angle of 1.8degrees and a size of 60x60x100mm. It has 4 wires, draws 4.2A per phase and ha..
from
C$45.40
Add to Cart
Add to Wish List Compare this Product
Quickview
DSY Series 400W RS485 DC Servo Motor 24-70VDC 1.27Nm 3000rpm 17-Bit Incremental Encoder IP65
DSY Series 400W RS485 DC Servo Motor 24-70VDC 1.27Nm 3000rpm 17-Bit Incremental Encoder IP65
This is the latest DSY series DC servo system, consisting of a 48VDC 400W servo motor and a 24-70VDC 400W servo driver. The servo motor has a rated to..
from
C$195.92
Add to Cart
Add to Wish List Compare this Product
Quickview

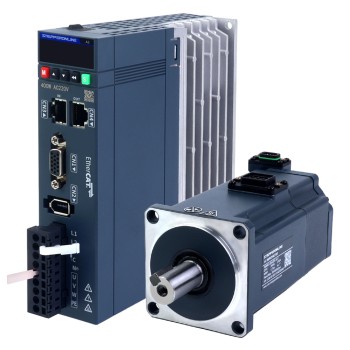

A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm w/ Brake 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor with the built-in 17-bit multiturn absolute encoder and a 24V 7.3..
from
C$198.87
Add to Cart
Add to Wish List Compare this Product
Quickview
10m(393.7") Motor and Encoder Cable with Connectors Kit for A6 Series 17-bit Servo Motor
10m(393.7") Motor and Encoder Cable with Connectors Kit for A6 Series 17-bit Servo Motor
This is a 10m(393.7") motor and encoder cable kit with connectors for A6 series 17-bit servo motor. This cable kit includes: 1 x AS7-C-PWR075-10.0..
from
C$35.13
Add to Cart
Add to Wish List Compare this Product
Quickview
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm 17-Bit Absolute Encoder IP67
A6 Series 400W EtherCAT AC Servo Motor Kit 3000rpm 1.27Nm 17-Bit Absolute Encoder IP67
This is an A6 series AC servo motor and driver kit consisting of a 220VAC 400W motor and a single-phase 220V 400W servo driver that supports EtherCAT ..
from
C$162.47
Add to Cart
Add to Wish List Compare this Product
Quickview

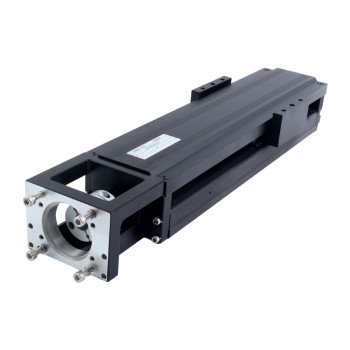

LK86 Series Ball Screw Driven Max. Horizontal/Vertical Payload 40kg/12kg Stroke 210mm
