DSY Series 400W RS485 DC Servo Motor 24-70VDC 1.27Nm 3000rpm 17-Bit Incremental Encoder IP65

0 reviews - Write a review

C$199.98

5 + C$193.14

10 + C$186.76

50 + C$180.78

100 + C$175.17

In Stock: 10000
Model: DSY-RS400L2A2-M17S
Gross Weight: 2.54kg
Certificated: ISO, CE

Available Options

Ships from (Click country for real-time stock)

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

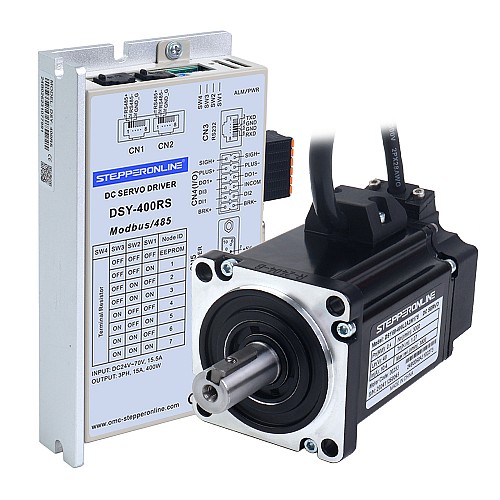

This is the latest DSY series DC servo system, consisting of a 48VDC 400W servo motor and a 24-70VDC 400W servo driver. The servo motor has a rated torque of 1.27Nm, a peak torque of 3.81Nm, and a rated speed of 3000rpm.
It comes standard with a 17-bit single-turn magnetic incremental encoder and adopts a high power density design, allowing it to deliver strong power in a compact size, achieving 3 times the instantaneous overload. The new magnetic circuit design reduces torque ripple, minimizing vibration during operation and providing smoother torque output.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

Items in Kit

1 x DSY-400RS: 400W Pulse/RS485 DC Servo Motor Driver
1 x DSY60-400L2A2M17S: 400W 48V DC Servo Motor 3000rpm 1.27Nm 17-Bit Encoder IP65
1 x P1-DS-03P15M: 3.0m Motor Cable
1 x E2-DS-03AM: 3.0m Encoder Cable
1 x RS232-5: 1.0m Debugging Cable

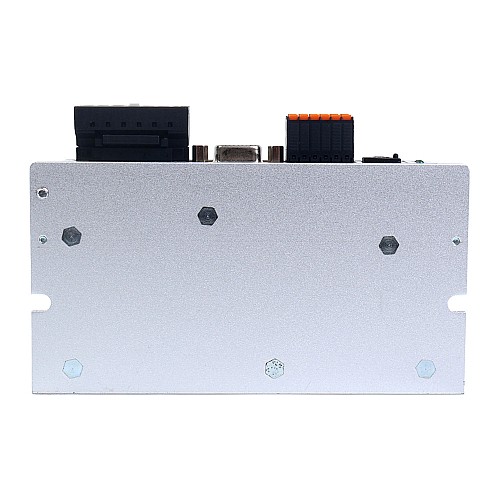

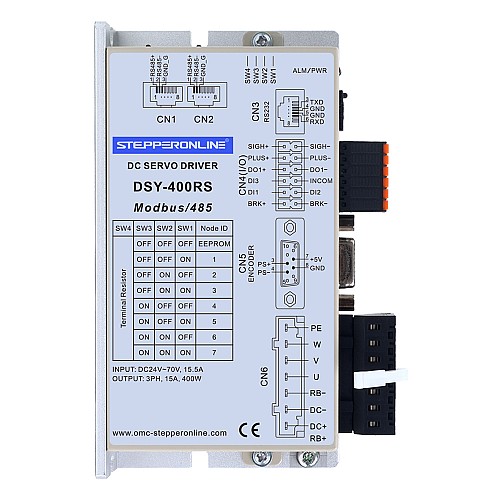

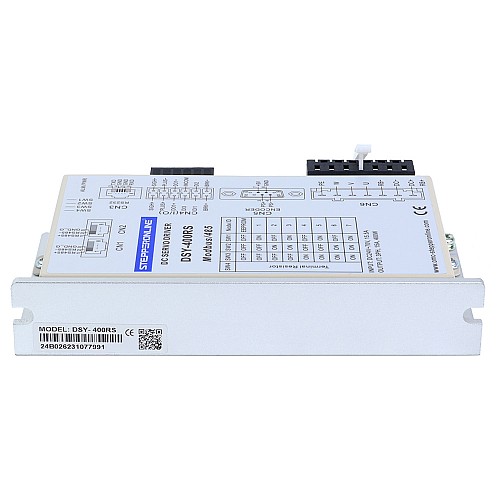

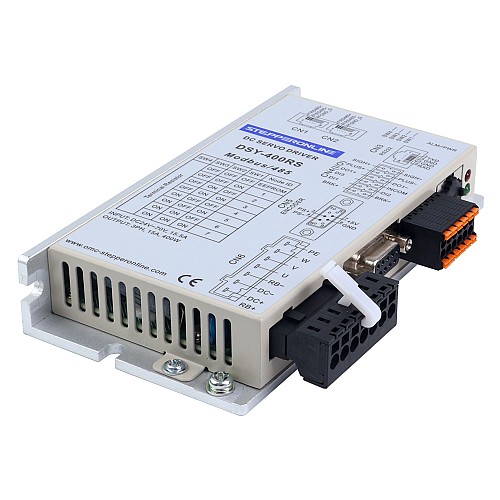

Servo Driver Specification

Part Number: DSY-400RS
Continuous Output Current: 15.0A
Maximum Output Current: 48.0A
Power Supply Input: 24-70VDC
Rated power 400W
Dimension: 141*75.5*25.4mm

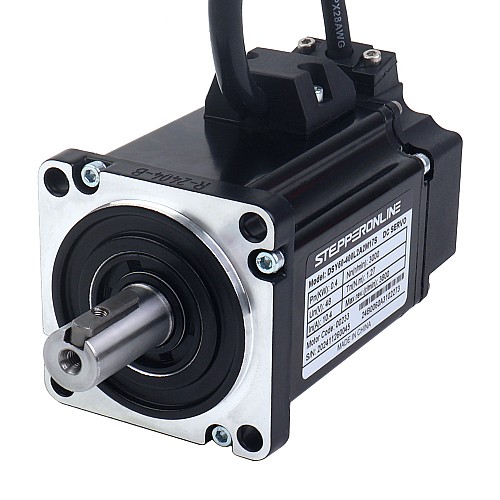

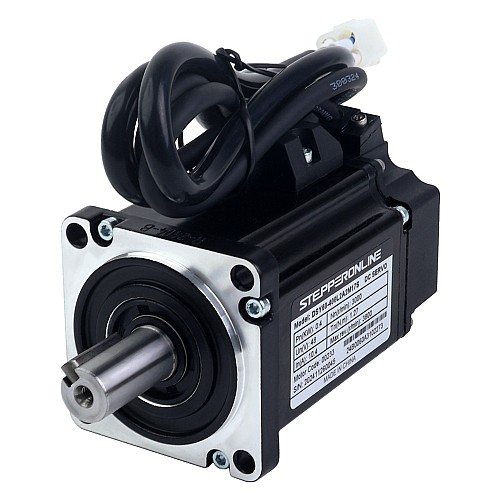

Servo Motor Specification

Part Number: DSY60-400L2A2M17S
Rated Power: 400W
Rated Voltage: 48VDC
Rated Torque: 1.27Nm
Peak Torque: 3.81Nm
Rated Current: 10.2A
Rated Speed: 3000rpm
Torque Const: 0.124N.m/A
Line-line Resistance: 0.33ohms ± 10%
Line-line Inductance: 0.65mH ± 20%
Inertia: 0.49kg*m²*10^-4
Encoder: 17-bit single-turn magnetic incremental encoder
Poles: 10
IP Rating: IP65
Shaft diameter: 14mm
Cable Length: 3m(optional lengths are 1.5m and 5m)

Please download DSY series servo debug software here.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

The DSY series debugging software by STEPPERONLINE was developed and tested on Windows 10. Using other Windows versions may cause compatibility issues (e.g., garbled text) or affect software functionality.

Electrical Specification
Control Modes	Pulse/RS485
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	24 - 70VDC
Peak Speed(rpm)	3800
Peak Torque(Nm)	3.81
Rated Power(W)	400
Rated Speed(rpm)	3000
Rated Torque(Nm)	1.27
Rated Voltage(V)	48VDC
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	14

File	Size
DSY60-400L2A2M17S_Full_Datasheet.pdf	132.82KB	Download
DSY60-400L2A2M17S.STEP	2.64MB	Download
DSY-400RS.STEP	16.58MB	Download
DSY-RS_Series_Low_Voltage_Servo_Drive_User_manual_(V1.0).pdf	14.58MB	Download
