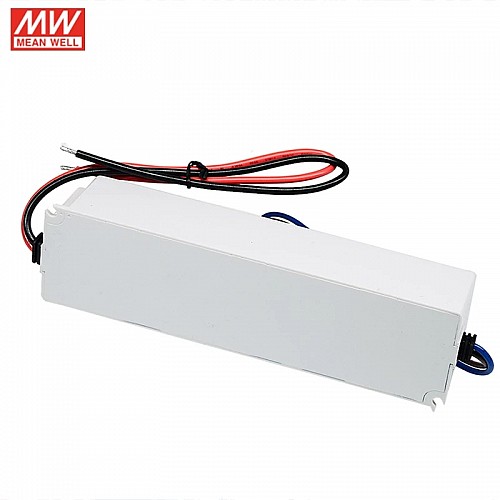

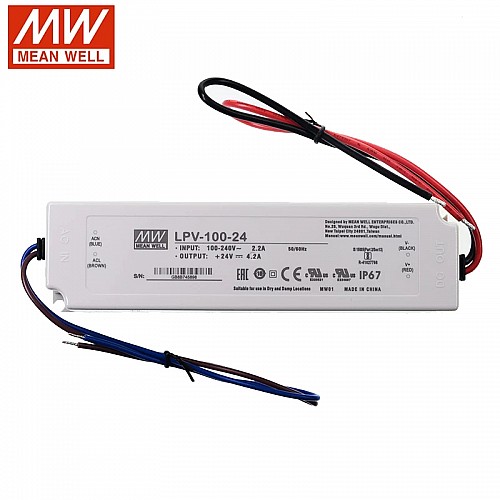

LPV-100-24 MEANWELL 24V 4.2A 100W Single Output Switching Power Supply

0 reviews - Write a review

C$28.80

5 + C$27.97

10 + C$27.17

50 + C$26.42

100 + C$25.71

In Stock: 10000
Brand: MEANWELL
Model: LPV-100-24
Gross Weight: 0.71kg
Certificated: ISO, CE, RoHS

Sold: 16

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
24V DC 4.2A output
AC input voltage range: 90 ~ 264VAC
Rated power: 100.8W
Constant voltage design
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level(Note.7)
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED related fixture or appliance
100% full load burn-in test
Low cost, high reliability
2 years warranty

Product Type
Product Type	Power Supply
Electrical Specification
Efficiency(%)	88
Max. Output Current(A)	4.2
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	190 x 52 x 37
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	24
PFC Function	No
Power(W)	100.8
Physical Specification
Inventory Method	Dedicated Inventory
