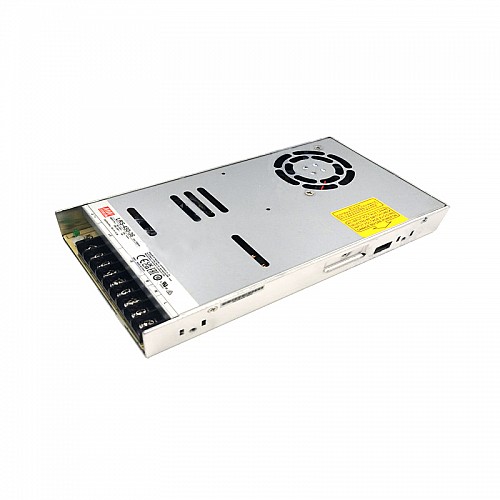

LRS-450-36 MEANWELL 450W 36VDC 12.5A 115/230VAC Enclosed Switching Power Supply

LRS-450-36 MEANWELL 450W 36VDC 12.5A 115/230VAC Enclosed Switching Power Supply - LRS-450-36 | StepperOnline CA
LRS-450-36 MEANWELL 450W 36VDC 12.5A 115/230VAC Enclosed Switching Power Supply
0 reviews - Write a review
C$76.43
5 + C$74.19
10 + C$72.09
50 + C$70.11
100 + C$68.23
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: LRS-450-36
  • Gross Weight: 0.85kg
  • Certificated: ISO, CE, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 450W 36VDC 12.5A power supply. MEANWELL LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 92%, with the built-in long life fan LRS-450 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.
LRS-450 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1. LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.


Features

  • Brand MEANWELL
  • 36V DC 12.5A output
  • AC input voltage range: 90 ~ 132VAC/180 ~ 264VAC
  • Rated power: 450W
  • Withstand 300VAC surge input for 5 second
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • Built-in cooling Fan ON-OFF control
  • 1U low profile
  • Withstand 5G vibration test
  • LED indicator for power on
  • No load power consumption < 0.75W
  • 100% full load burn-in test
  • High operating temperature up to 70℃
  • Operating altitude up to 5000 meters (Note.8)
  • High efficiency, long life and high reliability
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
Electrical Specification
Efficiency(%) 92%
Max. Output Current(A) 12.5
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 225 x 124 x 35
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 90 - 132 / 180 - 264
Output Voltage(VDC) 36
PFC Function No
Power Type Switching Power Supply
Power(W) 450
Physical Specification
Inventory Method Shared Inventory
File Size
LRS-450.pdf 830.12KB Download
