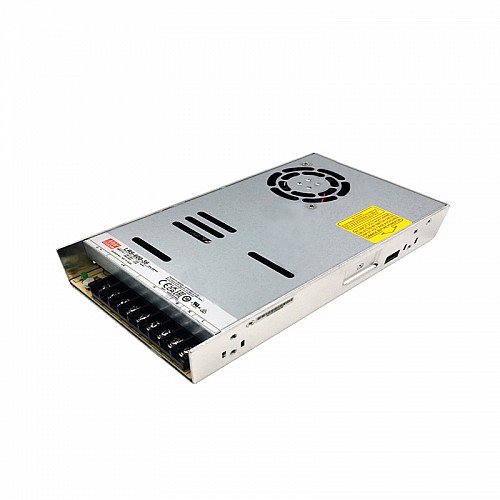

LRS-600-36 MEANWELL 597.6W 36VDC 16.6A 115/230VAC Enclosed Switching Power Supply

This is a 597.6W 36VDC 16.6A power supply. MEANWELL LRS-600 series is a 600W single-output enclosed type power supply with 41mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 27, 36V and 48V.
In addition to the high efficiency up to 92%, with the built-in long life fan LRS-600 can work under -25~ +70℃ with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.
LRS-600 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1. LRS-600 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

• Brand MEANWELL
• 36V DC 16.6A output
• AC input voltage range: 90 ~ 132VAC/180 ~ 264VAC
• Rated power: 597.6W
• Withstand 300VAC surge input for 5 second
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling by built-in DC fan
• Built-in cooling Fan ON-OFF control
• 1U low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption < 0.75W
• 100% full load burn-in test
• High operating temperature up to 70℃
• Operating altitude up to 5000 meters (Note.8)
• High efficiency, long life and high reliability
• 3 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus
