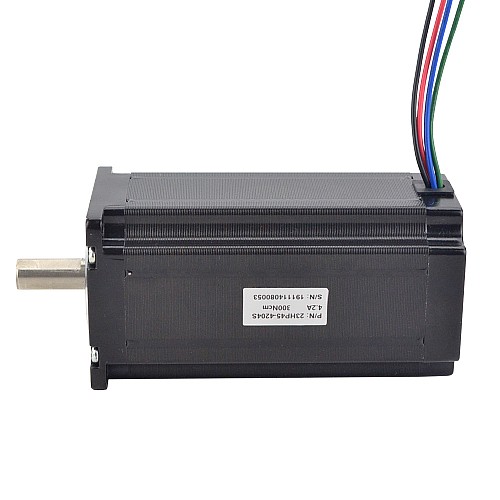

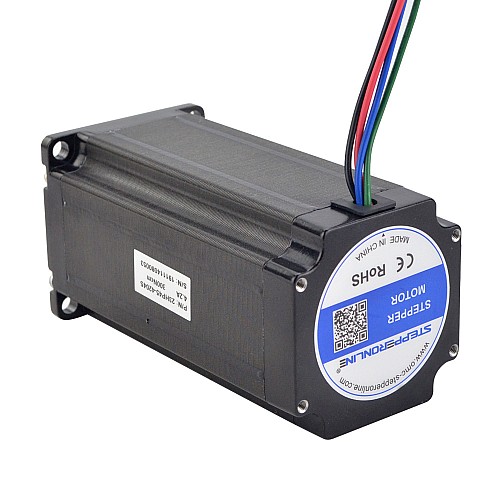

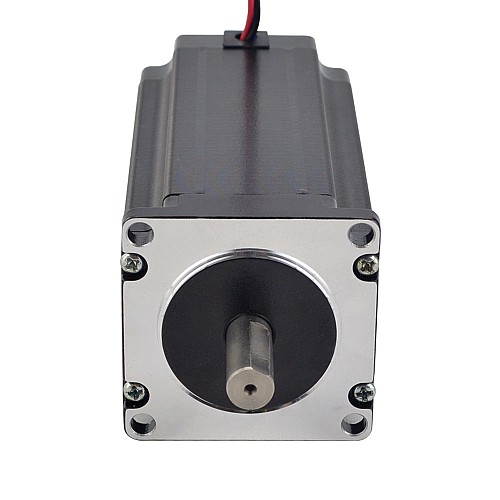

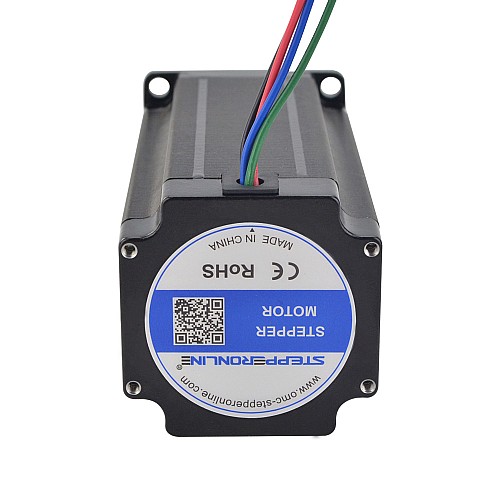

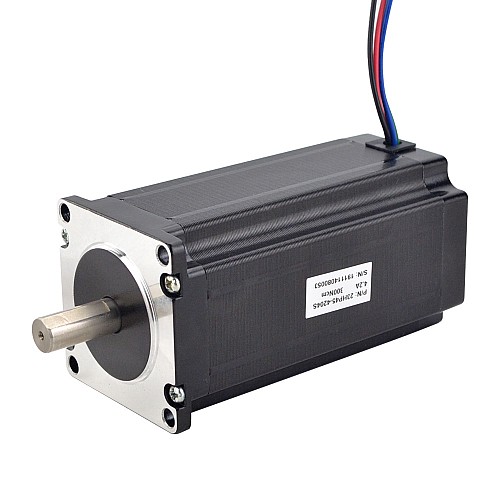

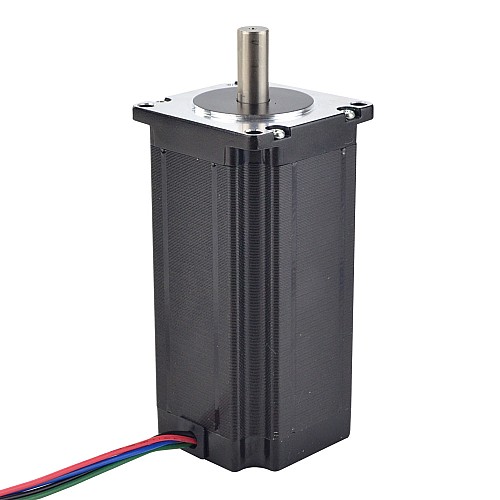

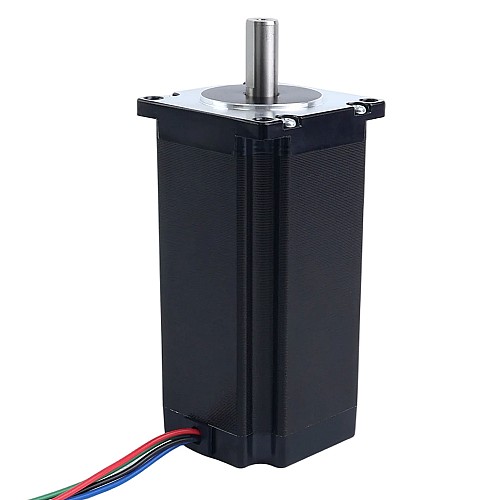

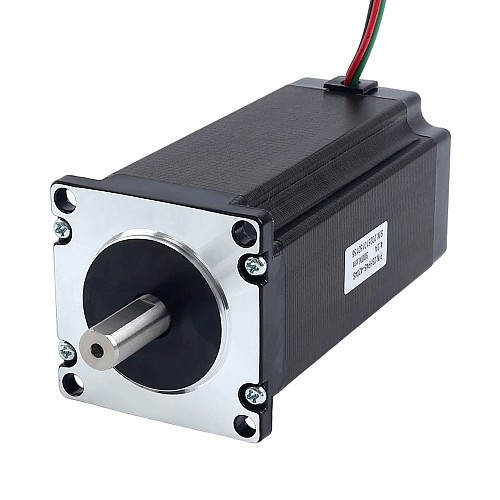

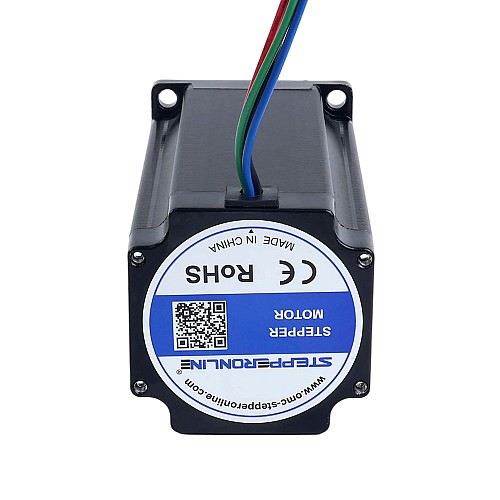

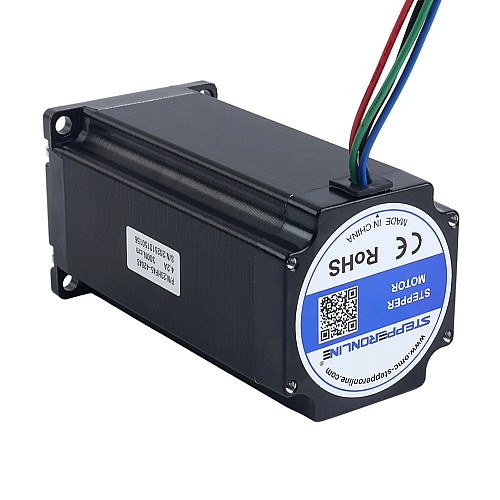

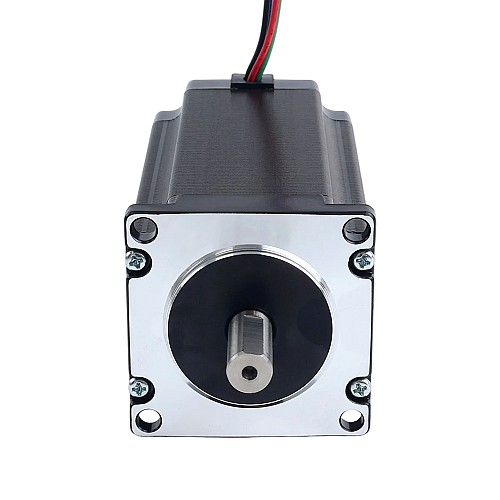

P Series Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC

2 reviews - Write a review

C$52.92

5 + C$49.86

10 + C$47.12

50 + C$44.68

100 + C$42.48

In Stock: 10000
Model: 23HP45-4204S
Gross Weight: 1.79kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 23HP45-4204S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms± 10%
Inductance: 3.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-CUT Shaft Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Inductance(mH)	3.4
Phase Resistance(ohms)	0.88
Rated Current(A)	4.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	113
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	D
Product Series	P
Shaft Diameter(mm)	10
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1600
