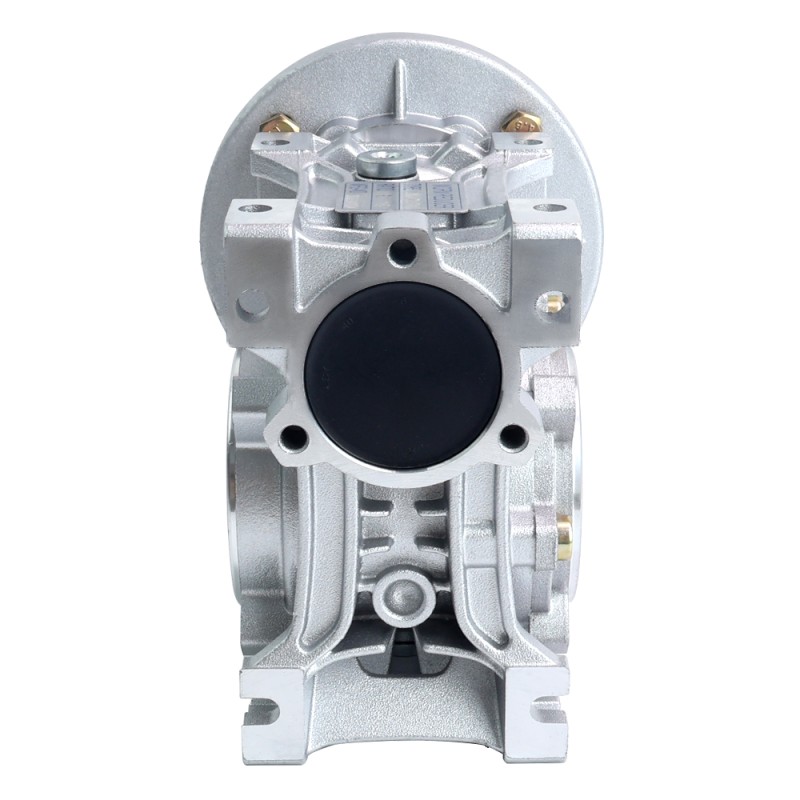

MRVR040 Worm Drive Gearbox 50:1 Ratio Φ9mm Input Shaft with 56B5 Motor Input Flange

This MRVR040 series worm gearbox, with a gear ratio of 50 and an input shaft diameter of 9mm, is suitable for all standard IEC motors with frame 56B5.

Different from low-quality worm gearboxes on the market, STEPPERONLINE's worm gearboxes use the highest standard Tin Bronze Cu Sn12 Ni2 for the worm wheel and long-life synthetic oil (ISO VG 320) for the gearbox case. They also use high-standard bearings and oil seals. Compared with other gearboxes, the temperature rise of our gearbox is significantly reduced, while the lifespan and performance are increased by at least 30%.

This worm gearbox is widely used in mining, presses, mills, manufacturing and packaging industries, conveyors, tuning instruments, automatic gates, and many other applications.

Features

• High torque and high strength
• High-standard bearings and oil seals
• Worm Wheel Material is Tin Bronze Cu Sn12 Ni2
• Excellent mechanical strength and particularly lightweight
• Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity

Gearbox Specifications

• Part Number: MRVR040AB3-G50-D9
• Gear Ratio: 50:1
• Gearbox Type: Worm Gearbox
• Gear Material: Alloy Steel
• Recommend Input Speed: <=1500rpm
• Output Type: Hollow Bore
• Output Bore Diameter: Φ18mm
• Output Bore Keyway Width: 6mm
• Input Shaft Type: Key way
• Input Shaft Diameter: Φ9mm
• Input Shaft Keyway Width: 3mm
• Housing Material: Aluminium Alloy
• Worm Wheel Material: Tin Bronze Cu Sn12 Ni2
• Lubricant: Synthetic Oil (ISO VG 320)
• Weight: 2.3kg
