Nema 6 External Trapezoidal Linear Stepper Motor 0.3A 32mm Stack Screw Lead 2mm(0.07874") Lead Length 100mm

0 reviews - Write a review

C$187.07

5 + C$179.36

10 + C$172.26

50 + C$165.70

100 + C$159.62

In Stock: 10000
Model: 6E13S0304AC7-100RS
Gross Weight: 0.10kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

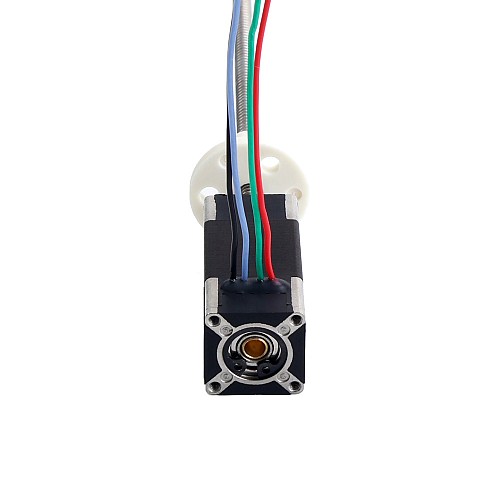

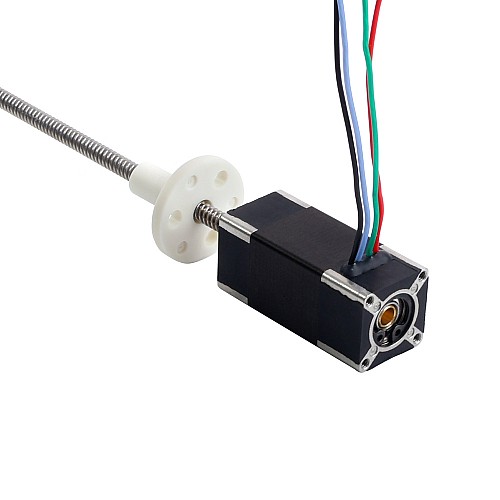

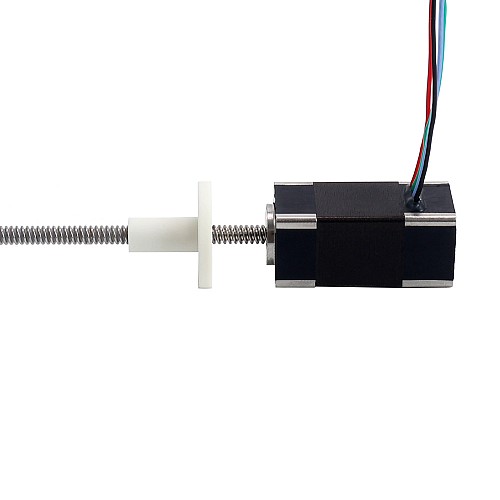

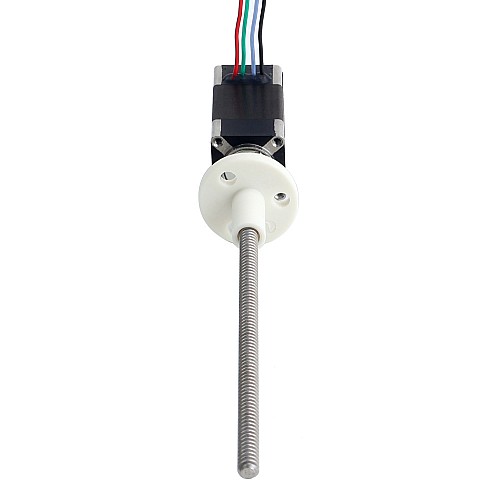

This Nema 6 external(trapezoidal)linear stepper motor is currently STEPPERONLINE’s smallest linear motor. It was composed of a 32mm long motor, 0.3A rated current, 1.8degree step angle and a 100mm long Tr3.5x2 linear screw. The construction of the motor is simple and has high precision, higher cost performance, stable and reliable, easy to operate and maintain.

Electrical Specification

Manufacturer Part Number: 6E13S0304AC7-100RS
Motor Type: External (Trapezoidal)
Step Angle: 1.8°
Maximum Thrus:15.0N
Rated Current/phase: 0.3A
Phase Resistance: 22ohms±10%
Inductance: 4.5mH±20%(1KHz)

Physical Specification

Frame Size: 14.3x 14.3mm
Body Length: 32mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.01mm(0.0003938")
Lead Travel/Revolution: 2mm(0.07874")
Number of Leads: 4
Number of Thread Starts: 2
Cable Length: 320mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Rated Current(A)	0.3
Physical Specification
Frame Size(mm)	Nema 06 (14 x 14)
Inventory Method	Dedicated Inventory
Lead Screw Diameter(mm)	3.5
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External (Trapezoidal)
No. of Lead	4
With Encoder	No

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
