Nema 11 Closed Loop Stepper Motor 0.1Nm(14.16oz.in) Encoder 1000PPR(4000CPR) Updated

0 reviews - Write a review

C$75.26

5 + C$71.88

10 + C$68.79

50 + C$65.95

100 + C$63.34

In Stock: Pre-order
Model: 11HS18-0674D-E1000-C1
Gross Weight: 0.28kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

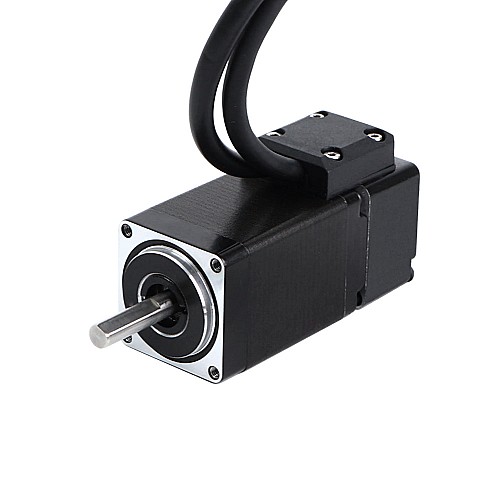

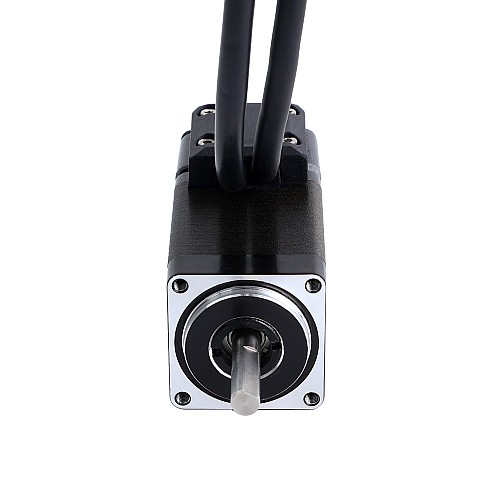

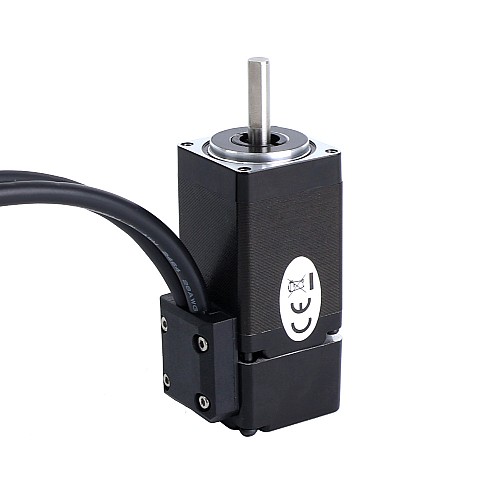

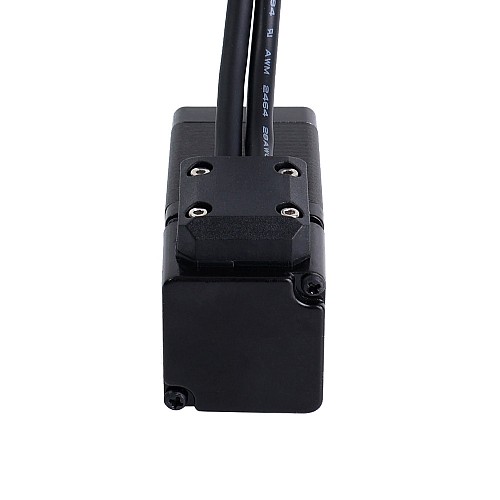

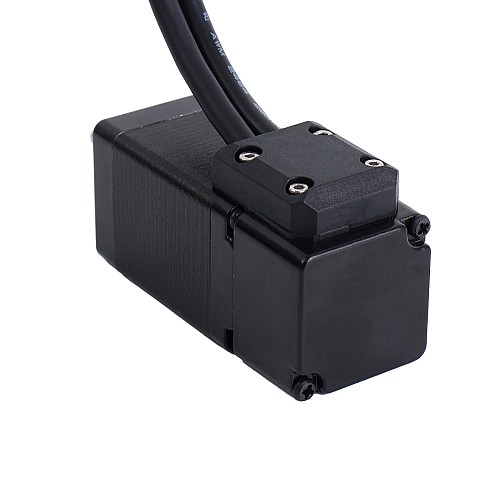

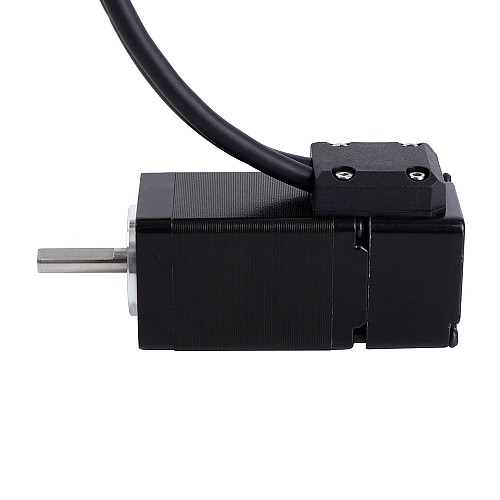

This is a Nema 11 closed loop stepper motor, equipped with an 1000ppr(4000cpr)incremental optical encoder, has a rated current of 0.67A and a holding torque of 0.1Nm(14.16oz.in). It offers improved accuracy, higher torque, reduced motor heating, lower power consumption, and better response to external factors compared to open loop stepper motors.

Electrical Specification

Manufacturer Part Number: 11HS18-0674D-E1000-C1
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 0.1Nm(14.16oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 6.8ohms± 10%
Inductance: 6.0mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 63mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Shaft Length: 15mm
Lead Length: 300mm
Weight: 0.22kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
High Level Output Voltage: 2.4V-Vcc
Low Level Output Voltage: ≤0.4V

This motor is used to replace 11HS18-0674D-E1000. Please note that the body length becomes to 63mm and encoder has some difference in output voltage.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	10
Holding Torque(oz.in)	14.16
Inductance(mH)	6
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	6.8
Rated Current(A)	0.67
Brake Specification
Brake Torque(oz.in)	14.16
Physical Specification
Body Length(mm)	63
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	20
