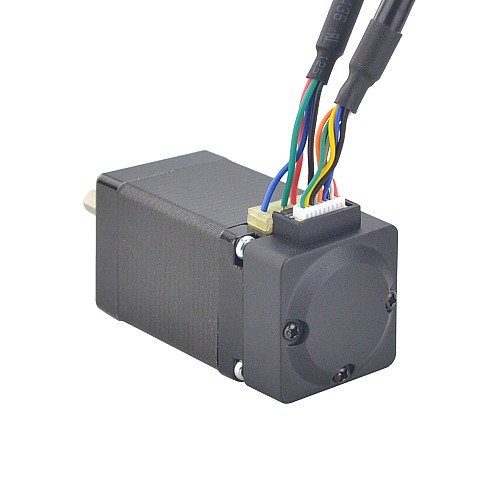

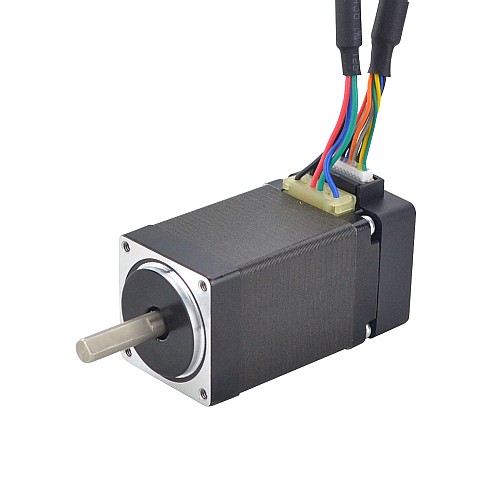

Nema 11 Closed Loop Stepper Motor 0.1Nm(14.16oz.in) Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$89.69

5 + C$85.66

10 + C$81.98

50 + C$78.60

100 + C$75.48

In Stock: Pre-order
Model: 11HS18-0674D-E1000
Gross Weight: 0.27kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 90

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 11HS18-0674D-E1000
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 0.1Nm(14.16oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 6.8ohms± 10%
Inductance: 6.0mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

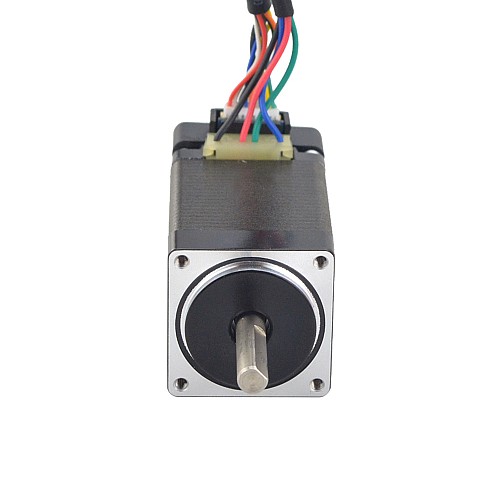

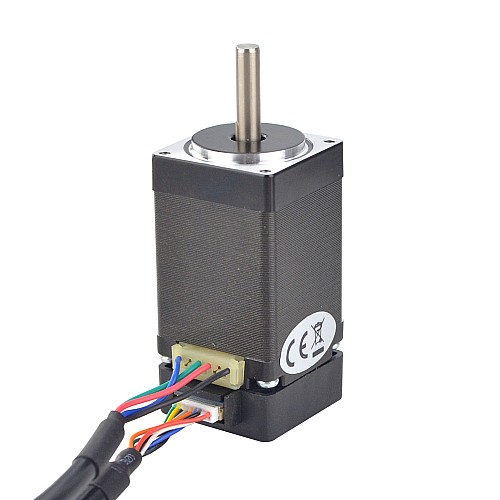

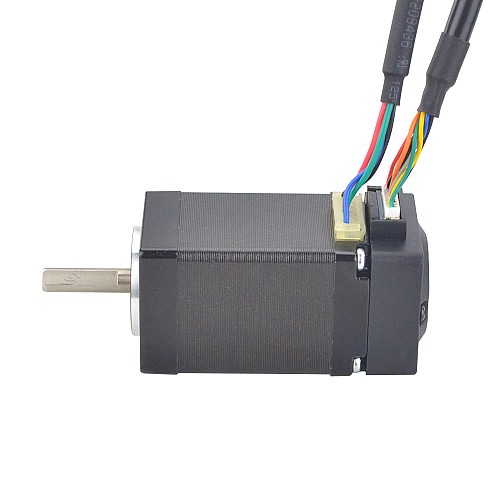

Physical Specification

Frame Size: 28 x 28mm
Body Length: 57mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Shaft Length: 15mm
Lead Length: 300mm
Weight: 0.14kg

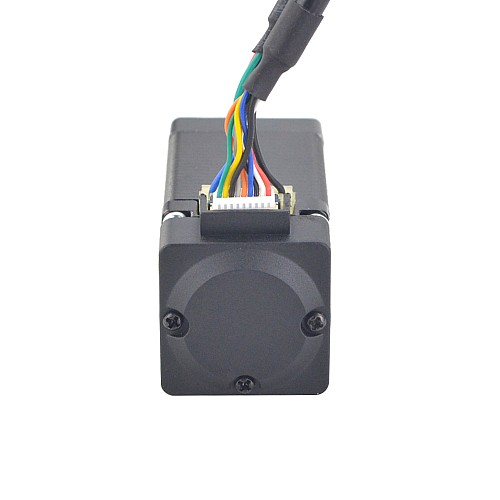

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
Output Current: 100mA MAX
Output High Voltage: ≥Vcc-0.4V
Output Low Voltage: ≤0.4V
Output Frequency Max: 1.85HZ

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

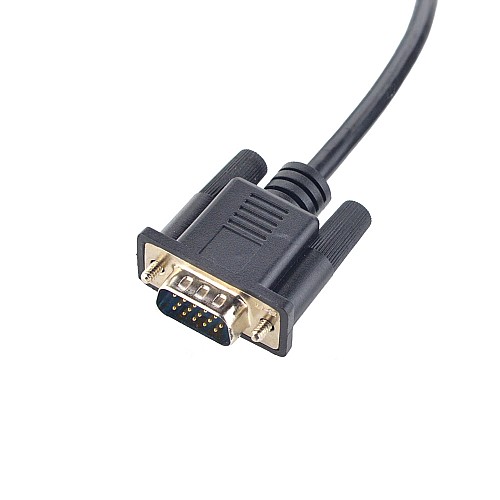

PIN	1	2	3	7	8	11	12	13
Encoder	EA+	VCC	GND	NC	NC	EB+	EB-	EA-

This motor will be replaced with 11HS18-0674D-E1000-C1 in the future. Please note that the body length becomes to 63mm and encoder has some difference in output voltage.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	10
Holding Torque(oz.in)	14.16
Inductance(mH)	6
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	6.8
Rated Current(A)	0.67
Brake Specification
Brake Torque(oz.in)	14.16
Physical Specification
Body Length(mm)	57
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Shared Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	20
