Nema 11 Closed Loop Stepper Motor 14Ncm(19.86oz.in) with Magnetic Encoder 1000PPR(4000CPR)
C$50.16
5 + C$42.19
10 + C$36.42
50 + C$32.03
100 + C$28.59
  • In Stock: 10000
  • Model: 11HS20-0674-ME1K
  • Gross Weight: 0.29kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 244

Click country for real-time stock

Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is one of the thinnest closed loop stepper motor we have, it only with 57.5mm thickness include encoder. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) resolution. The biggest advantage for magnetic encoder is the size and cost, they are widely used in small space and higher cost performance.

Electrical Specification

  • Manufacturer Part Number: 11HS20-0674-ME1K
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 14Ncm(19.86oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 9.2ohms± 10%
  • Inductance: 7mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

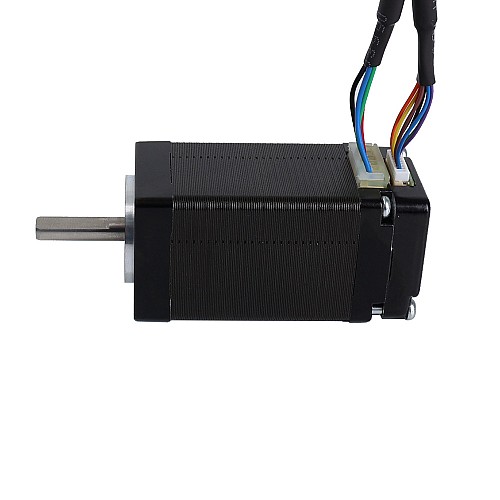

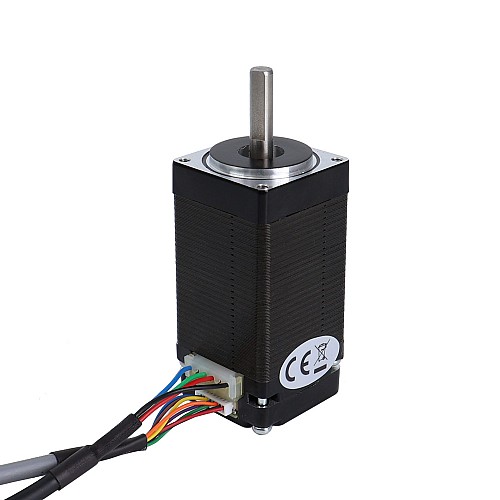

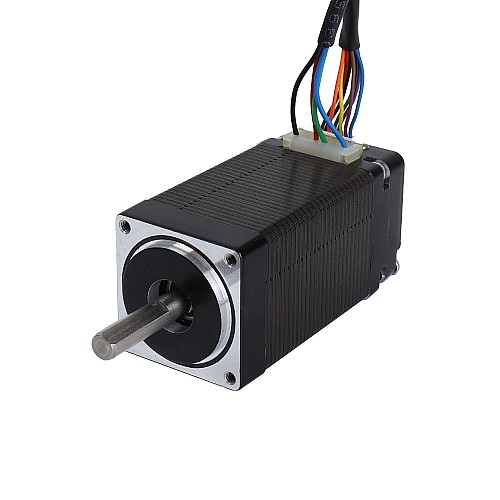

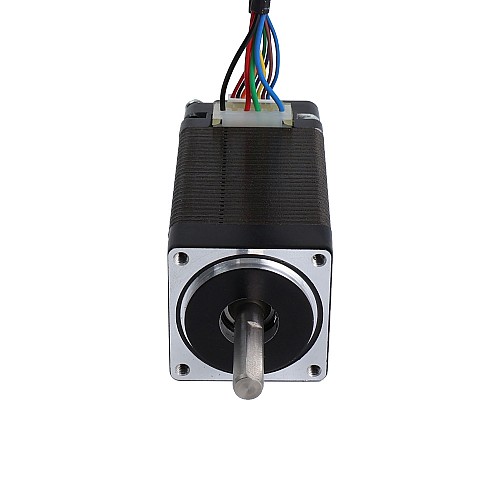

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 57.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-CUT Shaft Length: 15mm
  • Lead Length: 500mm

Encoder Specification

  • Output Circuit Type: Differential
  • Encoder Type: Magnetic Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 3 channels
  • Supply Voltage Min: 3.3V
  • Supply Voltage Max: 5.5V
  • Output Current: 20mA
  • Output High Voltage: 5V
  • Output Low Voltage: 0.2V
  • Output Frequency Max: 400kHZ

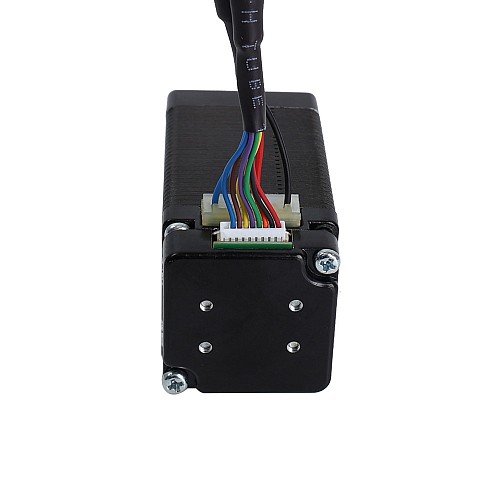

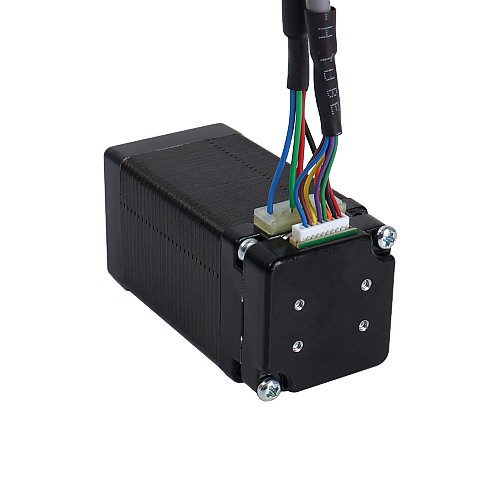

Motor and Encoder Connection

Motor
A+
A-
B+
B-
Wire
Black
Green
Red
Blue

Encoder
+5V
EGND
EA+
EA-
EB+
EB-
EZ+
EZ-
Wire
Red
Black
Brown
Orange
Blue
Green
Yellow
Purple
Product Type
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Magnetic Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 14
Holding Torque(oz.in) 19.86
Inductance(mH) 7
Output Circuit Type Differential
Output Signal Channels 3
Phase Resistance(ohms) 9.2
Rated Current(A) 0.67
Physical Specification
Body Length(mm) 57.5
Frame Size(mm) Nema 11 (28 x 28)
Inventory Method Dedicated Inventory
IP Rating 40
Shaft Diameter(mm) 5
Shaft Length(mm) 20



File Size
11HS20-0674-ME1K 151.82KB Download
11HS20-0674-ME1K.STEP 1.22MB Download
11HS20-0674-ME1K_Torque_Curve.pdf 184.88KB Download
