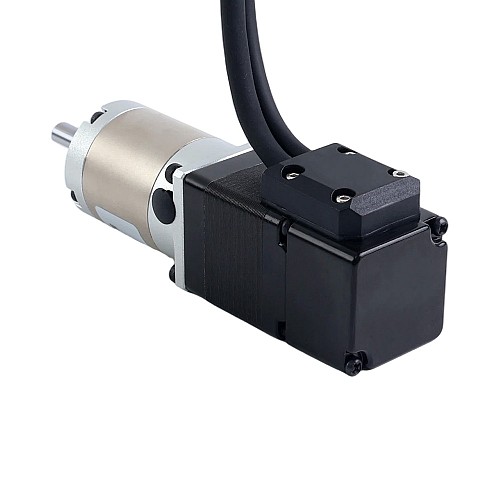

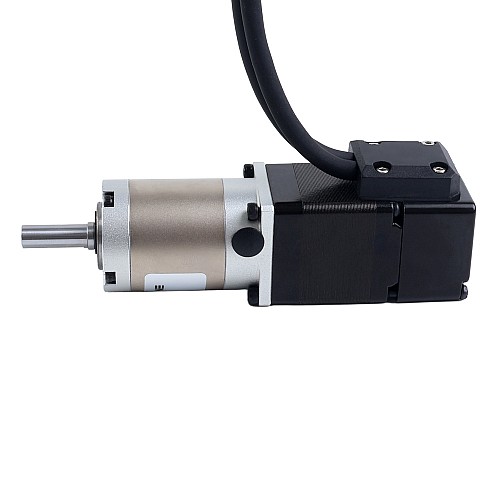

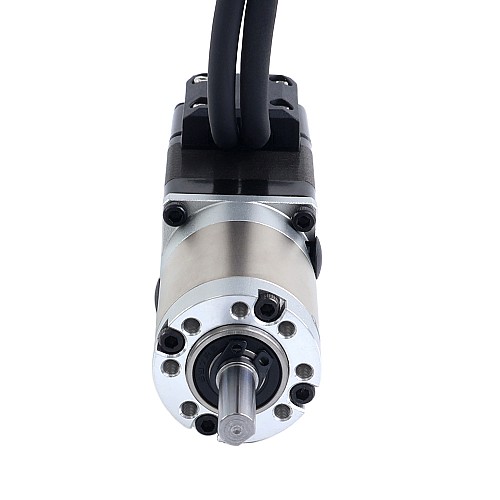

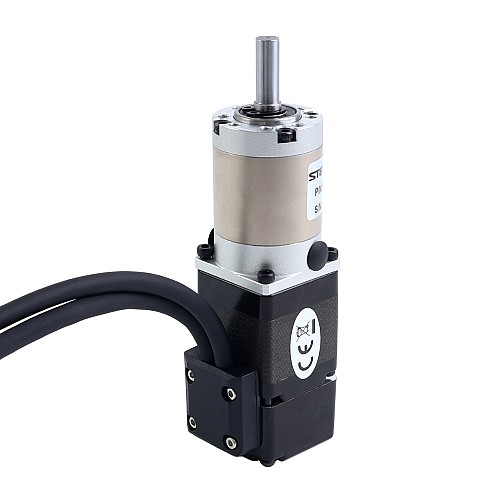

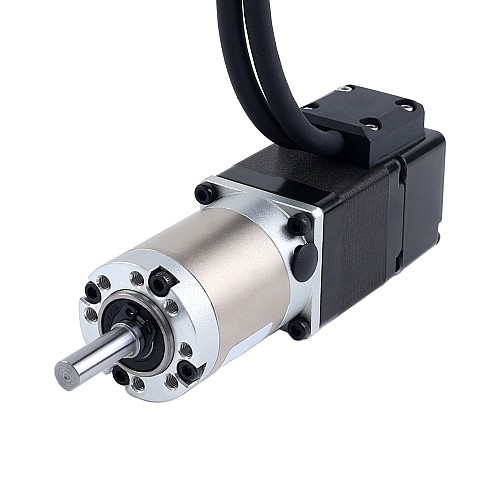

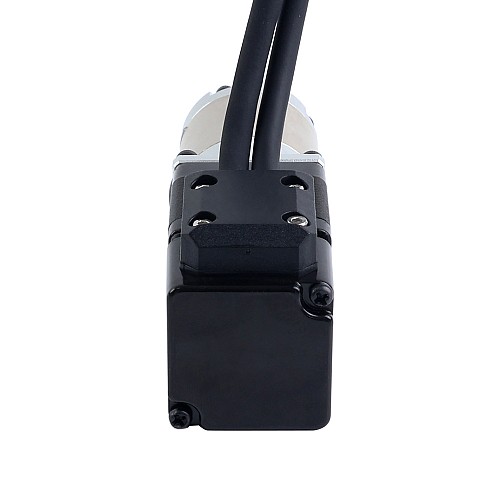

Nema 11 Closed Loop Stepper Motor L=32mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox

New

Nema 11 Closed Loop Stepper Motor L=32mm w/ Gear Ratio 20:1 EG Series Planetary Gearbox

0 reviews - Write a review

C$147.97

5 + C$136.74

10 + C$127.08

50 + C$118.70

100 + C$111.36

In Stock: 200
Model: 11HS12-1004D-E1000-EGS20
Gross Weight: 0.33kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor provides a holding torque of 0.06Nm(8.5oz.in) and features a high-precision EG series gearbox with a 20:1 gear ratio, complemented by a 1000PPR(4000CPR) incremental optical encoder. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Electrical Specification

Part Number: 11HS12-1004D-E1000-EGS20
Number of phase: 2
Step Angle: 1.8deg
Holding Torque without Gearbox: 0.06Nm(8.5oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 2.00ohms ± 10%
Inductance: 1.50mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 91mm
Shaft Diameter: 7mm
Shaft Length: 20mm
D-cut Shaft Length: 15mm
Cable Length: 300mm

Gearbox Specification

Gearbox Type: Planetary
Gear Ratio: 20:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max. Permissible Torque: 4.0Nm(566.45oz.in)
Moment Permissible Torque: 8.0Nm(1132.89oz.in)
Maximum Axial Load: 100N
Maximum Raddial Load: 300N

Encoder Specification

Output Circuit Type: Differential Type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 Channels
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
High Level Output Voltage: 2.4V - Vcc
Low Level Output Voltage: ≤ 0.4V

Connection

Pin	1	2	3	4
Motor	A+	A-	B+	B-
Color	Black	Green	Red	Blue

Encoder	EA+	VCC	GND	EB+	EB-	EA-	EZ+	EZ-
Color	White	Red	Black	Orange	Gray	Yellow	Green	Blue

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	0.06
Inductance(mH)	1.50
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	2.00
Rated Current(A)	1.0
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	91
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	20
Gearbox Type	EG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	7
Shaft Length(mm)	20

File	Size
11HS12-1004D-E1000-EGS20_Full_Datasheet.pdf	199.19KB	Download
