Nema 11 External 34mm Stack 0.75A Lead 0.635mm(0.025") Length 100mm

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 11E13S0754ED2-100RS
Gross Weight: 0.40kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

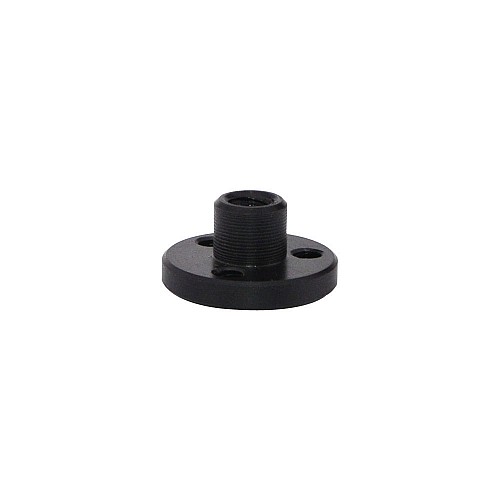

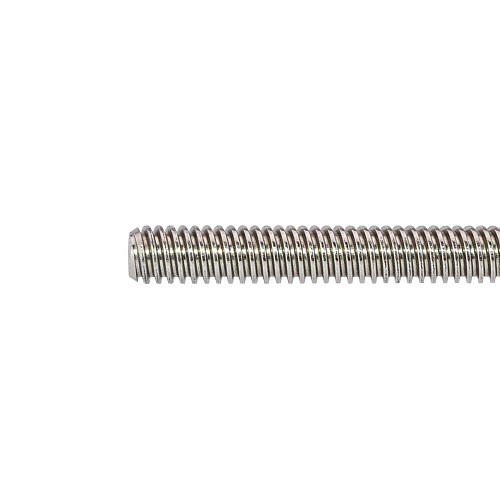

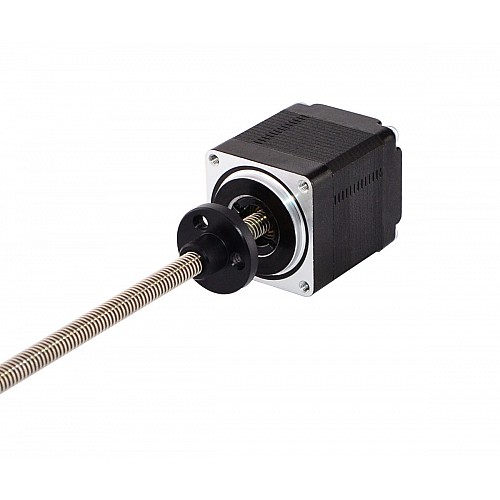

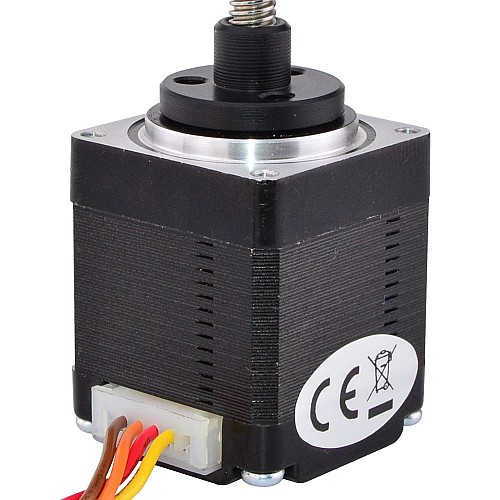

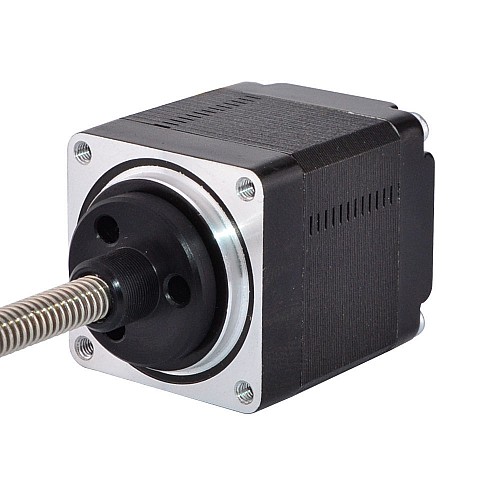

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 34mm 1.8 degree 0.75A Nema 11 stepper motor. It was integrated with 100mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 11E13S0754ED2-100RS(11E13S0754ED-100RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Minimal Thrust: 4.8N(300pps)
Rated Current/phase: 0.75A
Phase Resistance: 3.2ohms
Voltage: 2.4V
Inductance: 2.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 34mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.003175mm(0.000125")
Lead/Revolution: 0.635mm(0.025")
Number of Leads: 4
Cable Length: 300mm
Weight: 150g

Connection

A+	A-	B+	B-
Red	Brown	Yellow	Orange

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11E13S0754ED4-100RS.

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	8
Holding Torque(oz.in)	11.33
Inductance(mH)	2
Phase Resistance(ohms)	3.2
Rated Current(A)	0.75
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	304
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	0.635
Lead Travel/Step(mm)	0.003175
Linear Motor Type	External(Acme)
No. of Lead	4
With Encoder	No
