Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole & Gear Ratio 27:1 Gearbox

Hot

Nema 11 Stepper L=31mm w/ Rear Shaft & Screw Hole & Gear Ratio 27:1 Gearbox

0 reviews - Write a review

€34.80

5 + €33.08

10 + €31.53

50 + €30.11

100 + €28.81

In Stock: 10000
Model: 11HS12-0674D1-PG27
Gross Weight: 0.38kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 906

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

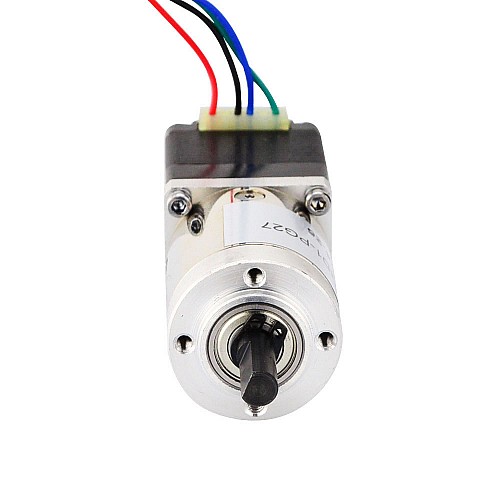

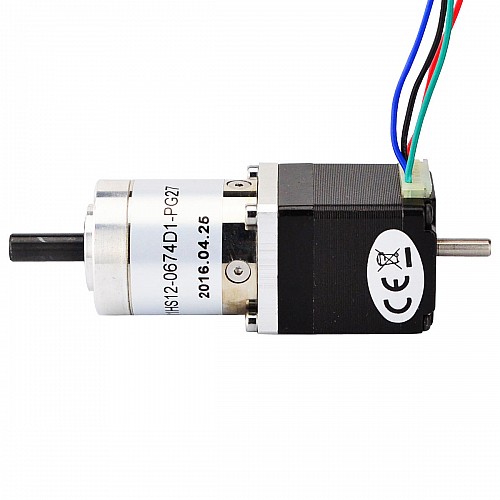

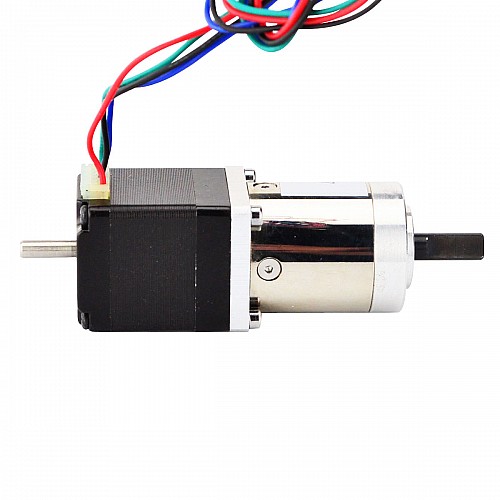

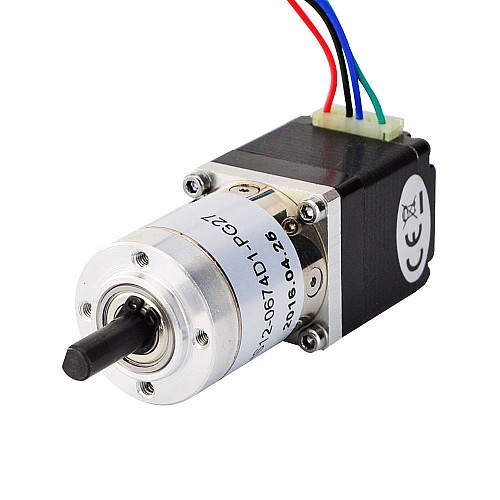

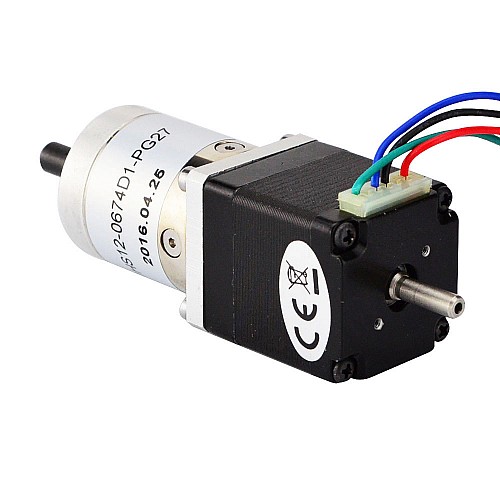

This Nema 11 stepper motor with 31mm body and 0.67A rated current, integrated a planetary gearbox of 26.85:1 gear ratio. A 3.9mm diameter rear shaft with screw holes on rear endcap is available. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS12-0674D1-PG27
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 6Ncm(8.50oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Inductance: 4.0mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 26.85:1
Gear Efficiency: 80%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specifications

Frame Size: 28 x 28mm
Motor Length: 31.5mm
Gearbox Length: 36.8mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: 3.9mm
Rear Shaft Length: 12mm
Number of Leads: 4
Lead Length: 300mm
Weight: 120g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.06
Inductance(mH)	4.0
Phase Resistance(ohms)	5.6
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	66.5
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	26.85
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	120
