11E18S0754FD4-250RS
Rated Current(A)0.75
Phase Resistance(ohms)6.7
Inductance(mH)5.8
Linear Motor TypeExternal(Acme)
Question

Downloads

11E18S0754FD4-250RS_Full_Datasheet.pdfPDF · 53.59KB11E18S0754FD4-250RS.STEPSTEP · 1.18MBLog in to download
Same series
ModelRated Current(A)Phase Resistance(ohms)Inductance(mH)Linear Motor TypePriceStock
11E13S0424ED5-150RS0.4211.46External(Acme)C$54.29In stock
11E13S0424FD3-150RS0.4211.46External(Acme)C$93.99In stock
11E13S0424FD4-150RS0.4211.46External(Acme)C$47.37In stock
11E13S0424GD3-150RS0.4211.46External(Acme)C$93.99Backorder
11E13S0754ED4-100RS0.753.22External(Acme)C$40.79In stock
11E13S1004FD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004FD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004GD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004GD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004HD5-150RS1.02.11.5External(Acme)C$53.81Backorder
11E13S1004HD5-180RS-E22-3001.02.11.5External(Acme)C$105.85In stock
11E18S0754ED3-250RS0.756.75.8External(Acme)C$122.37In stock
11E18S0754ED4-101RS0.756.73External(Acme)C$41.18In stock
11E18S0754FD4-250RS0.756.75.8External(Acme)C$59.73In stock
11E18S0754HD5-250RS0.756.75.8External(Acme)C$73.89In stock
11E18S1004FD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-250RS1.03.73.7External(Acme)C$62.21In stock
11E18S1004HD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004ND5-150RS-SALE1.03.73.7External(Acme)C$47.98In stock
11E20S0674ED4-100RS0.679.25.7External(Acme)C$46.11In stock
14E13S0574FF3-150RS0.578.813External(Acme)C$107.05Backorder
14E13S0574JE4-150RS0.578.813External(Acme)C$65.58In stock
14E13S0574LF3-150RS0.578.813External(Acme)C$90.44Backorder
14E13S1504GF5-150RS1.50.951External(Acme)C$48.26In stock
14E17S0914FF3-250RS0.915.57.63External(Acme)C$122.37Backorder
14E17S0914LF3-250RS-SALE0.915.57.63External(Acme)C$86.07In stock
14E19S1504FF5-150RS1.51.52.0External(Acme)C$51.27In stock
14E19S1504GF5-150RS1.51.52.0External(Acme)C$51.27In stock
14E19S1504RF5-150RS1.51.62.3External(Acme)C$53.81Backorder
View all in category
Nema 11 External 45mm Stack 0.75A Lead 1.27mm(0.05") Length 250mm
The motor part is 45mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.7... Read More
0 reviews • Write a review
from
C$59.73
5 + C$57.26
10 + C$54.98
50 + C$52.90
100 + C$50.95

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

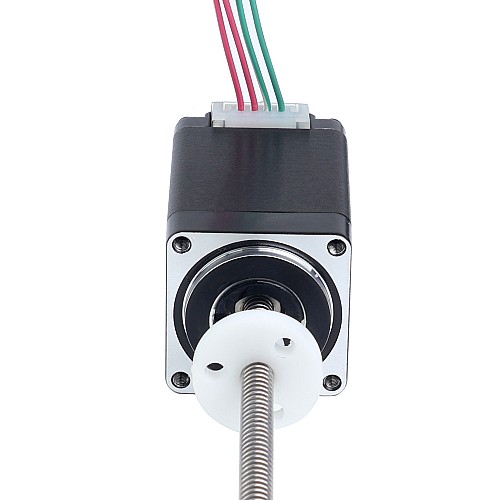

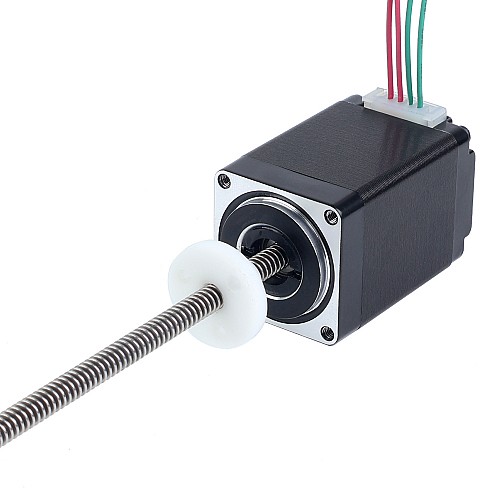

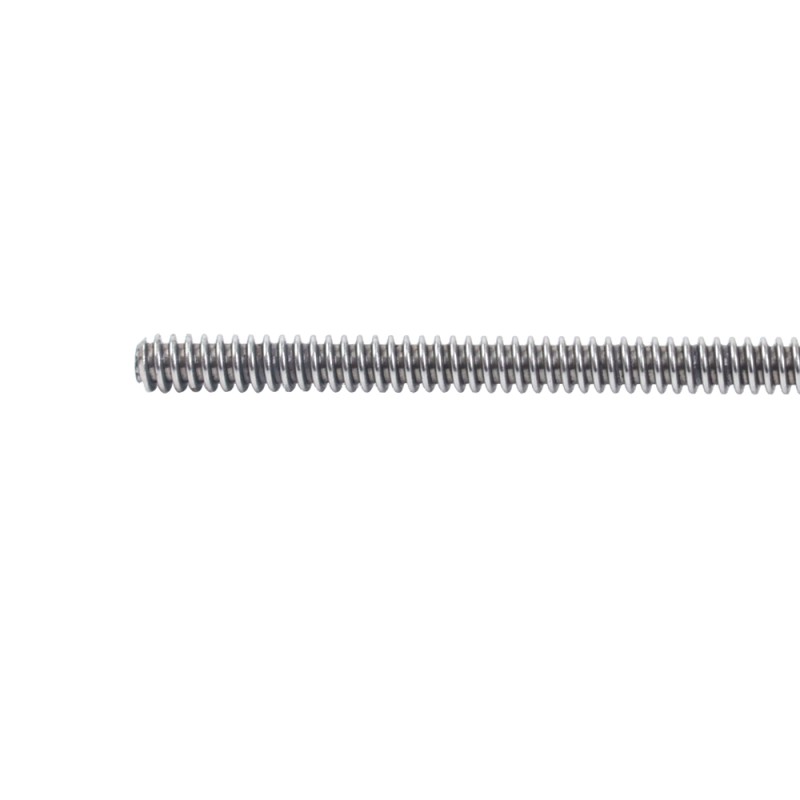

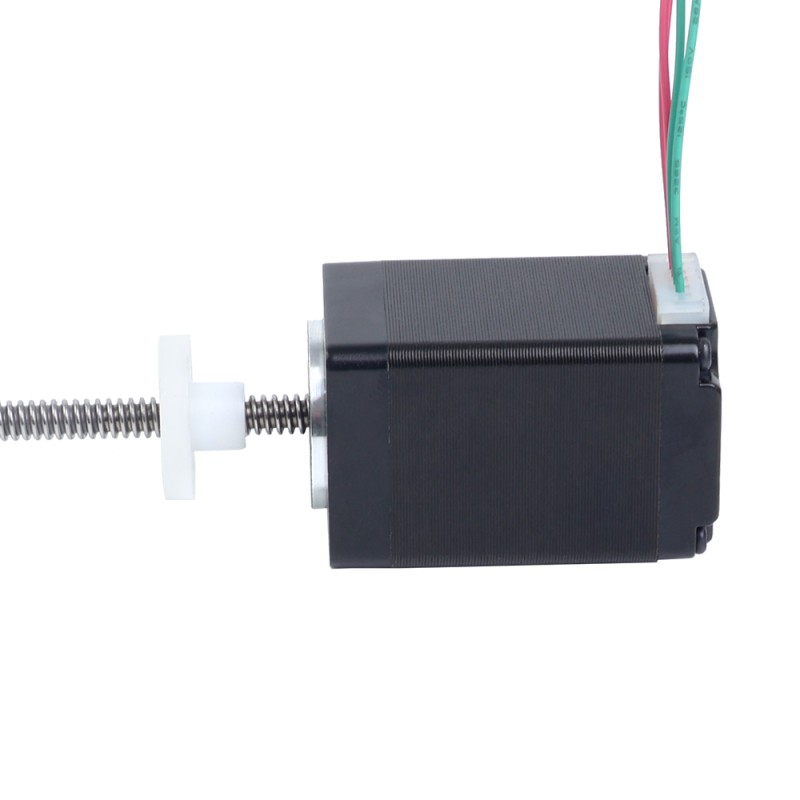

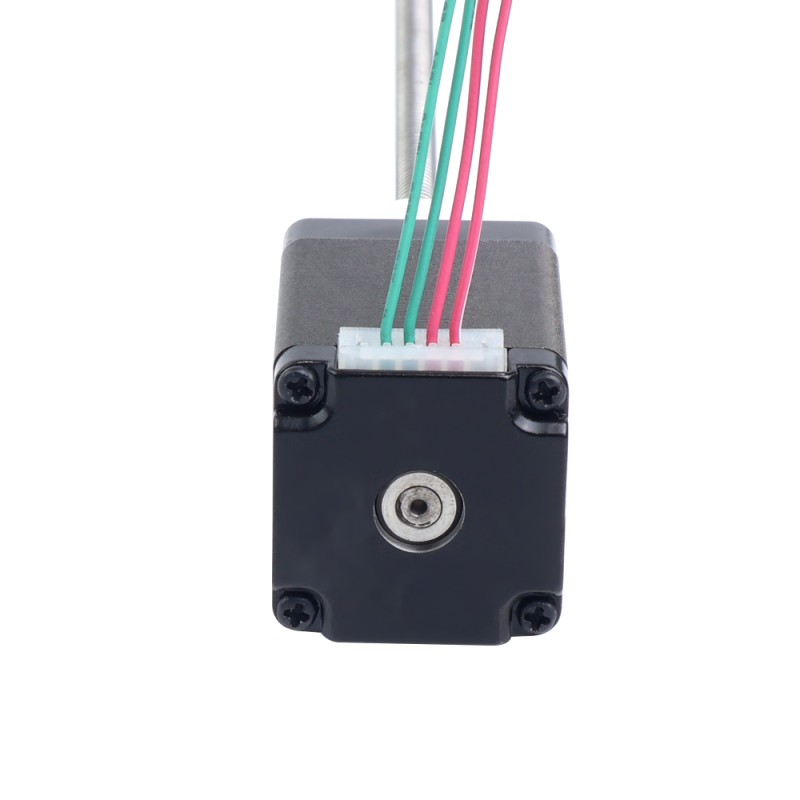

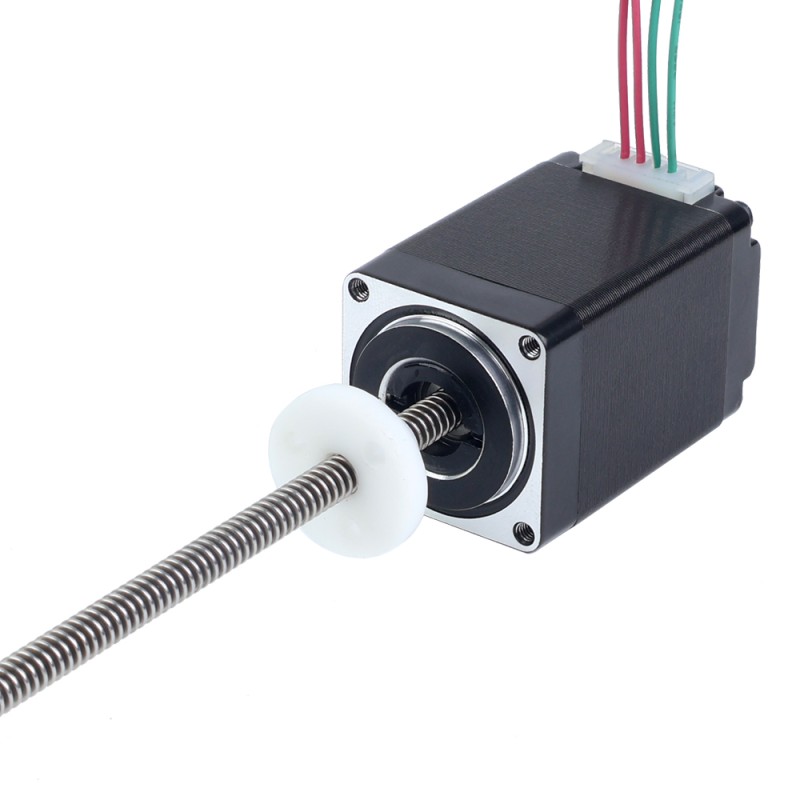

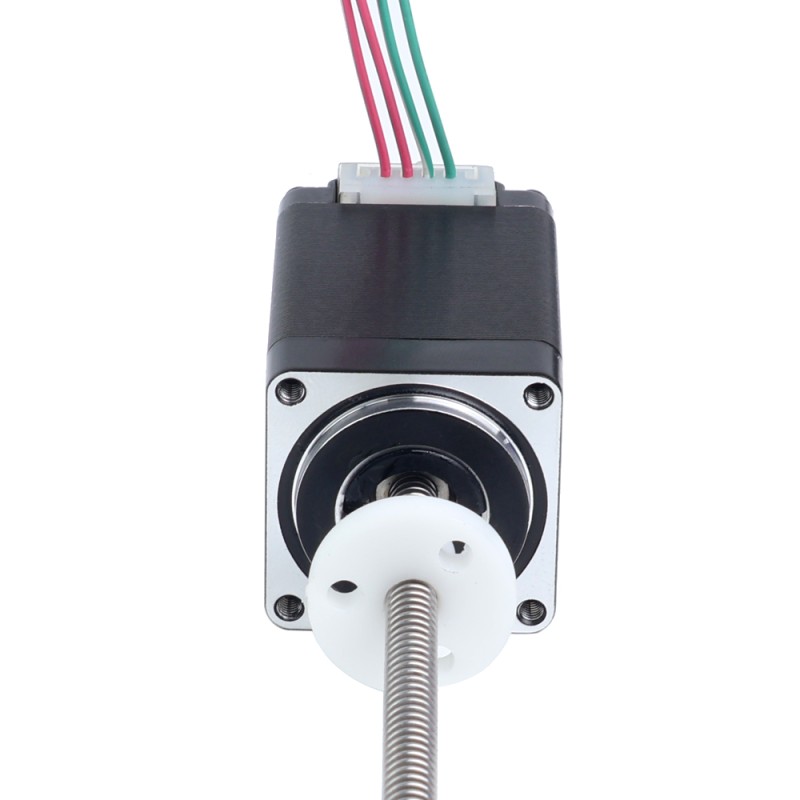

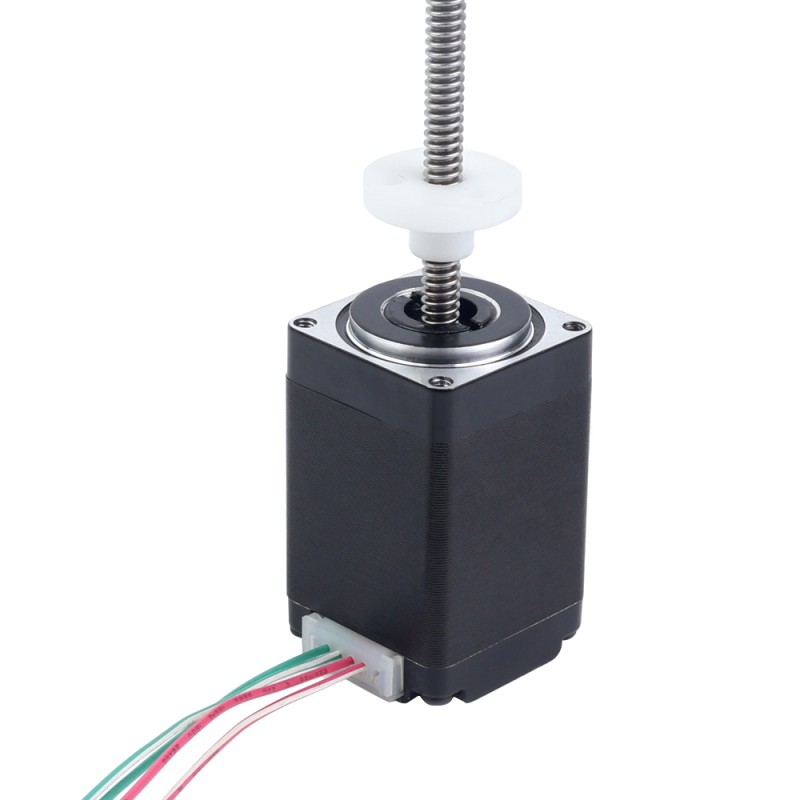

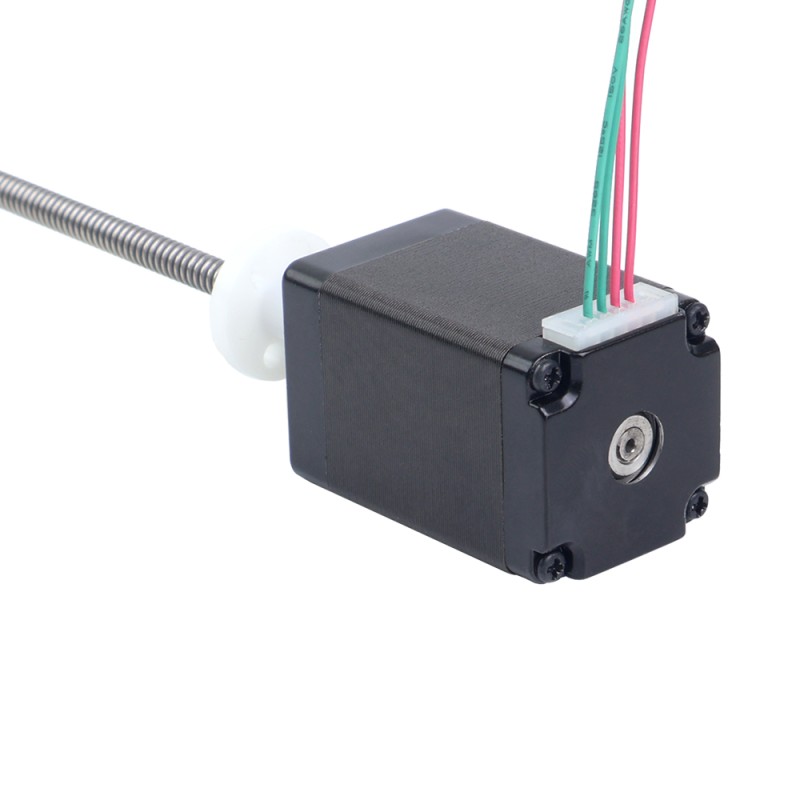

The motor part is 45mm body 1.8 degree 0.75A Nema 11 stepper motor, and it has integrated with a 4.76mm(0.1874") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 1.27mm(0.05") per revolution. This model is almost exactly same as Haydon Kerk 28000 series size 11 double stack external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 11E18S0754FD4-250RS
  • Motor Type: External(Acme)
  • Step Angle: 1.8°
  • Holding Torque: 0.1Nm(14.16oz.in)
  • Rated Current/phase: 0.75A
  • Phase Resistance: 6.7ohms
  • Inductance: 5.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 45mm
  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ4.76mm(0.1874")
  • Lead/Step: 0.00635mm(0.00025")
  • Lead Travel/Revolution: 1.27mm(0.05")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight : 190g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green
Product Type
Product Type Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 10
Holding Torque(oz.in) 14.16
Inductance(mH) 5.8
Phase Resistance(ohms) 6.7
Rated Current(A) 0.75
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 45
Cable Length(mm) 300
Frame Size(mm) Nema 11 (28 x 28)
IP Rating 40
Lead Screw Diameter(mm) 4.76
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 1.27
Lead Travel/Step(mm) 0.00635
Linear Motor Type External(Acme)
No. of Lead 4
With Encoder No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
NEMA 8 External Trapezoidal Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 1mm(0.03937") Lead Length 100mm
NEMA 8 External Trapezoidal Linear Stepper Motor 0.5A 38.2mm Stack Screw Lead 1mm(0.03937") Lead Length 100mm
This is integrated with a 3.5mm(0.1378") diameter, 100mm(3.937") screw length and a POM screw nut, the linear travel is 1mm(0.03937") per revolution.&..
from
C$57.30
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 8 External Trapezoidal Linear Stepper Motor 0.5A 30mm Stack Screw Lead 1mm(0.03937") Lead Length 100mm
NEMA 8 External Trapezoidal Linear Stepper Motor 0.5A 30mm Stack Screw Lead 1mm(0.03937") Lead Length 100mm
This is integrated with a 3.5mm(0.1378") diameter, 100mm(3.937") screw length and a POM screw nut, the linear travel is 1mm(0.03937") per revolution.&..
from
C$54.29
Add to Cart
Add to Wish List Compare this Product
Quickview

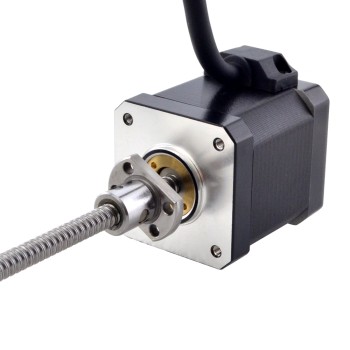

NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm
This is integrated with a 6mm(0.2362") diameter 150mm(5.9055") length ball screw length and a steel screw nut, the linear travel is 2mm(0.07874") per ..
from
C$148.47
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 External 48mm Stack 1.68A Lead 8mm(0.31496") Length 200mm
Nema 17 External 48mm Stack 1.68A Lead 8mm(0.31496") Length 200mm
This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 48mm 1.8 degree 1.68A Nema 17 stepper motor..
from
C$26.91
Add to Cart
Add to Wish List Compare this Product
Quickview

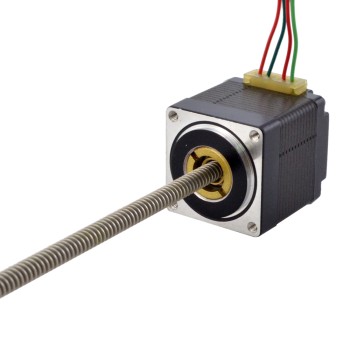

NEMA 11 Non-Captive Acme Linear Stepper Motor 1.0A 32.2mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm
