Nema 11 Non-captive 34mm Stack 0.75A Lead 2mm(0.07874") Length 100mm

Discontinued

Nema 11 Non-captive 34mm Stack 0.75A Lead 2mm(0.07874") Length 100mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11N13S0754AA2-100RS
Gross Weight: 0.40kg
Certificated: ISO, CE, RoHS

Sold: 433

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

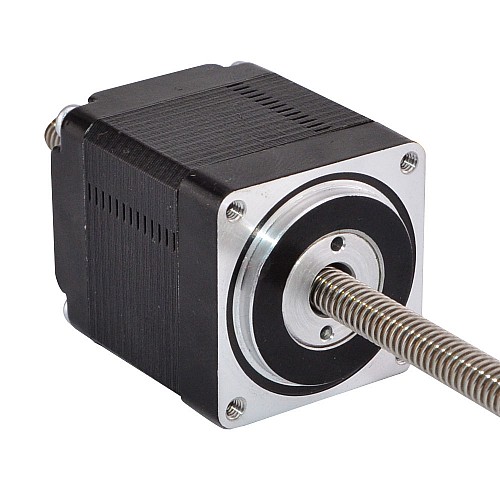

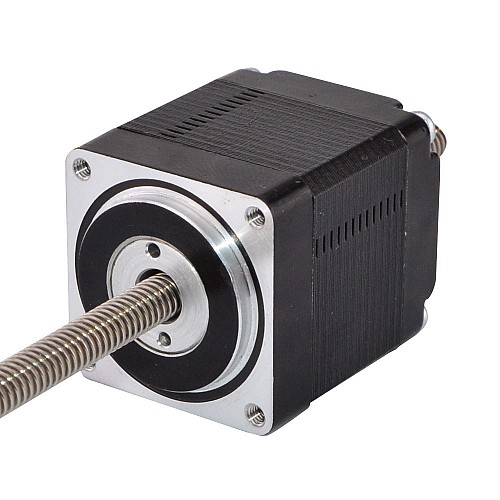

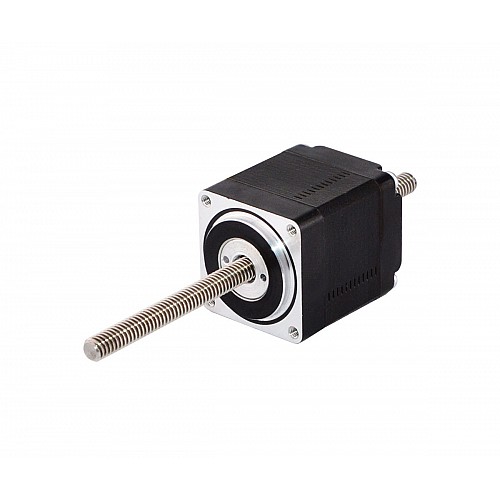

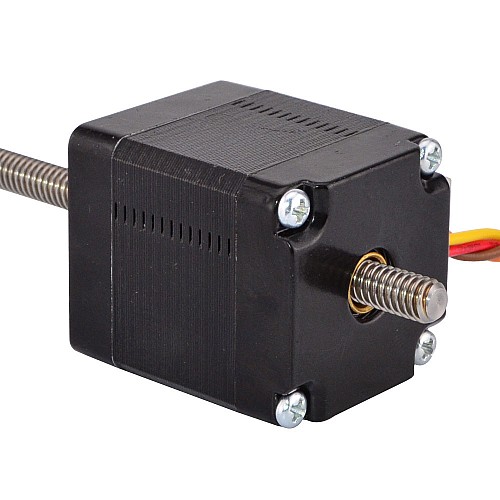

This is an economy linear stepper motor which named Nema 11 non captive linear actuator, it was composed of 34mm 1.8 degree 0.75A Nema 11 stepper motor with a holding torque of 8.0Ncm(11.33oz.in) and 100mm length Tr5x2 linear screw.

Electrical Specification

Manufacturer Part Number: 11N13S0754AA2-100RS(11N13S0754AA-100RS)
Motor Type: Non Captive Linear Stepper
Step Angle: 1.8deg
Holding Torque: 8.0Ncm(11.33oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 3.2ohms
Voltage: 2.4V
Inductance: 2.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 34mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ5mm(0.1969")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 300mm
Weight: 150g

Connection

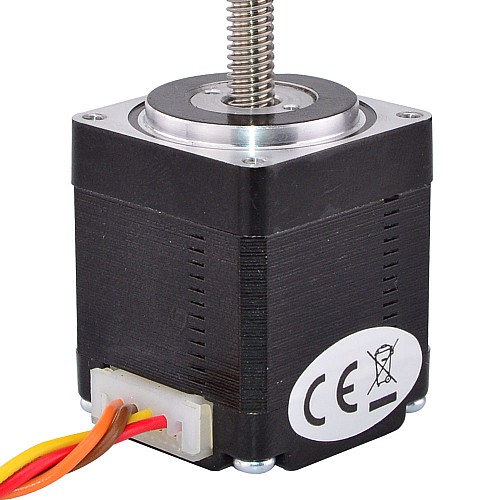

A+	A-	B+	B-
Red	Brown	Yellow	Orange

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11N13S0754AA4-100RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	8
Holding Torque(oz.in)	11.33
Inductance(mH)	2
Phase Resistance(ohms)	3.2
Rated Current(A)	0.75
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	5
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	Non-Captive
No. of Lead	4
