Nema 17 Stepper Motor L=39mm Gear Ratio 50:1 High Precision Planetary Gearbox

Hot

Nema 17 Stepper Motor L=39mm Gear Ratio 50:1 High Precision Planetary Gearbox

3 reviews - Write a review

C$91.39

5 + C$86.88

10 + C$82.79

50 + C$79.08

100 + C$75.67

In Stock: 10000
Model: 17HS15-1684S-HG50
Gross Weight: 0.65kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

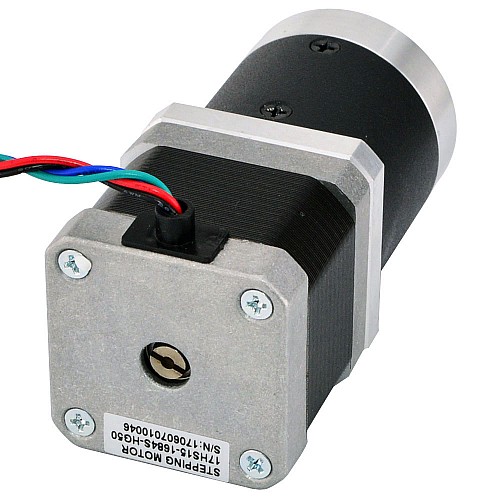

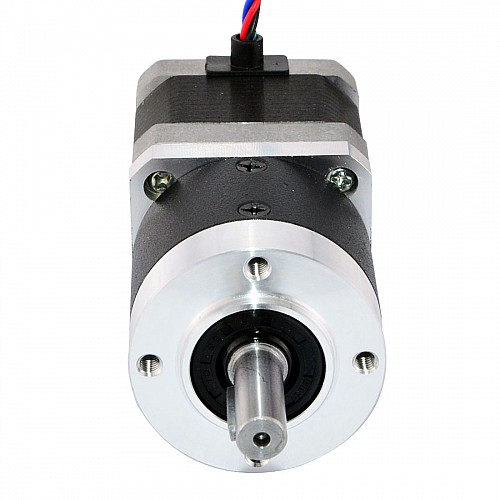

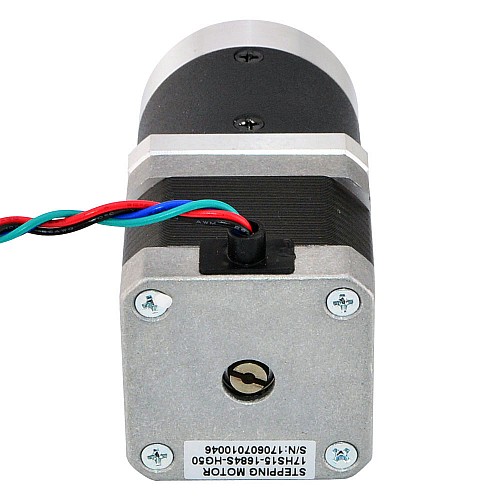

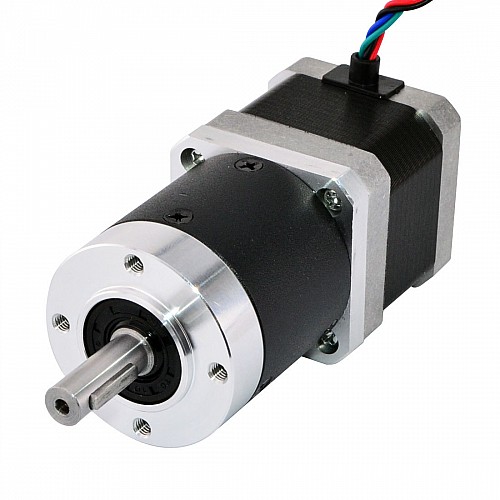

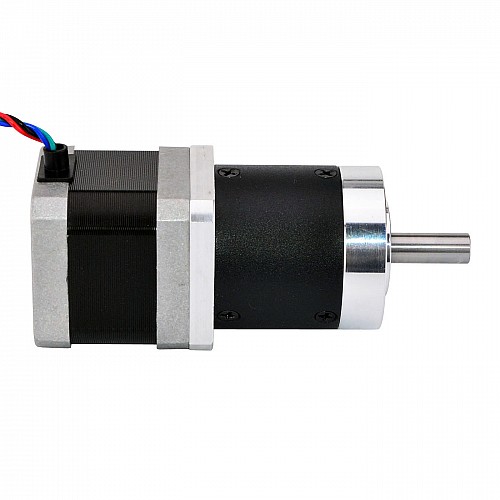

This Nema 17 stepper motor with 39mm body and 1.68A rated current, integrated with a 48.3mm Planetary gearbox of 50:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 17HS15-1684S-HG50
Motor Type: Bipolar Stepper
Step Angle: 0.036deg
Holding Torque without Gearbox: 39Ncm(55oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 50 :1
Efficiency: 85%
Backlash at No-load: <=50arcmin
Max. Permissible Torque: 10Nm(1416.4oz.in)
Moment Permissible Torque: 15Nm(2124oz.in)
Max. Radial Load: 100N
Ambient Temperature: -10 - 90℃
Noise: <=50dB
Life: 20000h

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 48.3mm
Shaft Diameter: Φ8mm
Shaft Length: 23.5mm
Key-way Length: 14mm
Number of Leads: 4
Lead Length: 320mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Holding Torque(oz.in)	0.39
Inductance(mH)	3.2
Phase Resistance(ohms)	1.6
Brake Specification
Brake Power(W)	Yes
Physical Specification
Backlash at No-load	<=50arcmin
Body Length(mm)	87.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Single Shaft

File	Size
17HS15-1684S-HG50.STEP	2.6MB	Download
17HS15-1684S-HG50_Torque_Curve.pdf	153.96KB	Download
17HS15-1684S-HG50 Full Datasheet	173.83KB	Download
17HS15-1684S_Torque_curve.pdf	213.98KB	Download
