Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm

Discontinued

Nema 11 Non-captive 34mm Stack 0.75A Lead 4.877mm(0.192") Length 150mm

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 11N13S0754QE2-150RS
Gross Weight: 0.26kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

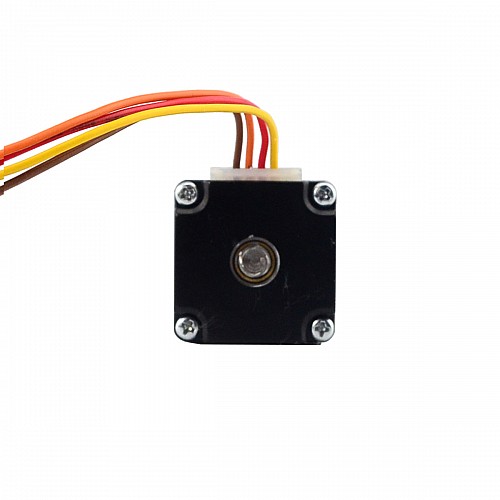

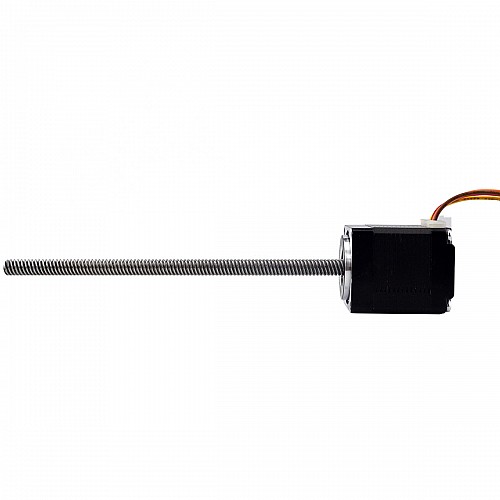

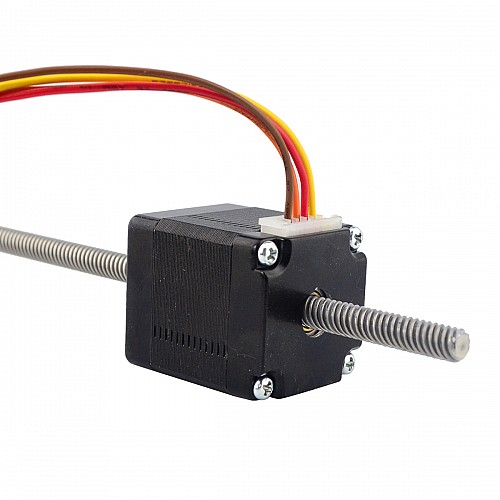

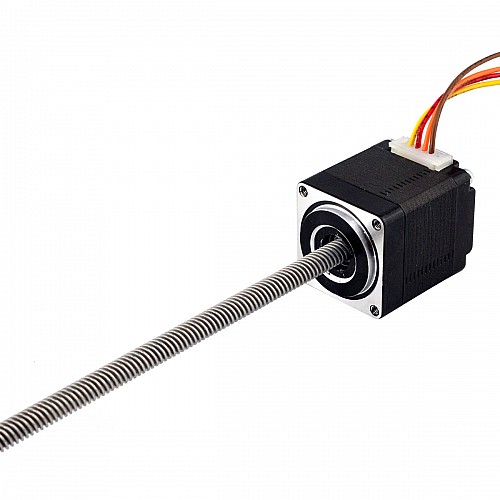

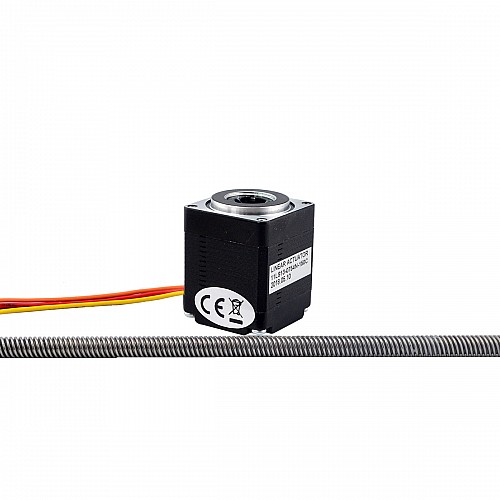

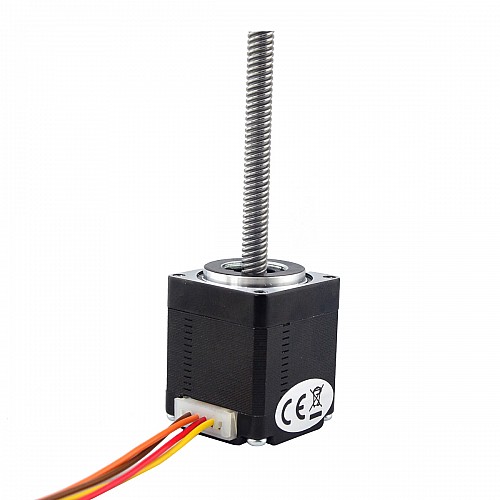

This model is economy linear stepper motor which named Nema 11 non-captive linear actuator, it was composed of 34mm 1.8 degree 0.75A Nema 11 stepper motor and 150mm length Tr5.56x4.8768 linear screw.

Electrical Specification

Manufacturer Part Number: 11N13S0754QE2-150RS(11N13S0754QE-150RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8deg
Holding Torque: 0.08Nm(11.33oz.in)
Rated Current/phase: 0.75A
Phase Resistance: 3.2ohms
Voltage: 2.4V
Inductance: 2.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 34mm
Lead Screw Length: 150mm(3.937")
Lead Screw Diameter: Φ5.56mm(0.2189")
Lead/Step: 0.024384mm(0.00096")
Lead/Revolution: 4.8768mm(0.192")
Number of Leads: 4
Cable Length: 300mm
Weight: 150g

Connection

A+	A-	B+	B-
Red	Brown	Yellow	Orange

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11N13S0754QE4-150RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	8
Inductance(mH)	2
Phase Resistance(ohms)	3.2
Rated Current(A)	0.75
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	5.56
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	4.877
Lead Travel/Step(mm)	0.024384
Linear Motor Type	Non-Captive
No. of Lead	4
