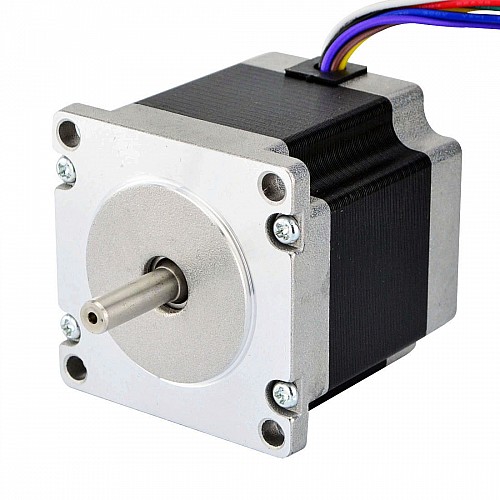

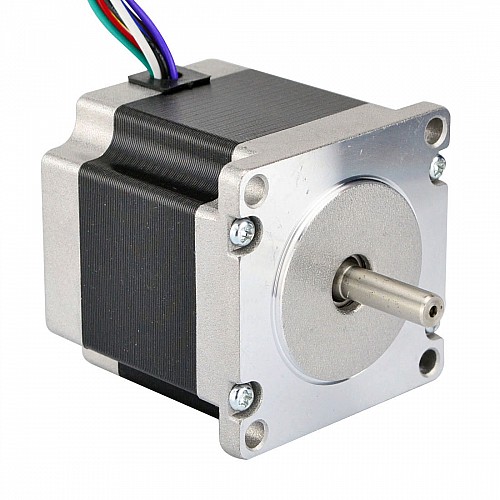

Dual Shaft Nema 23 Uni/Bipolar 1.8deg 1.26Nm(178.4oz.in) 3A 57x57x56mm 8 Wires

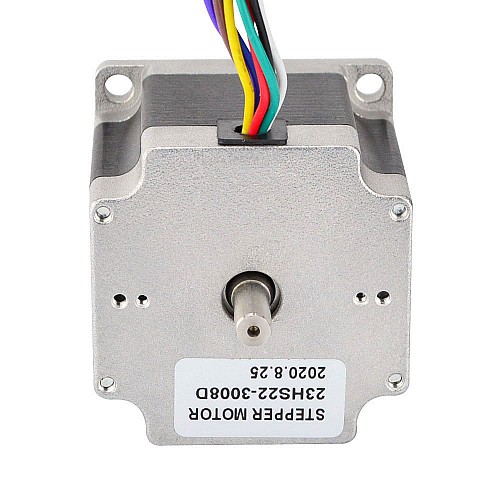

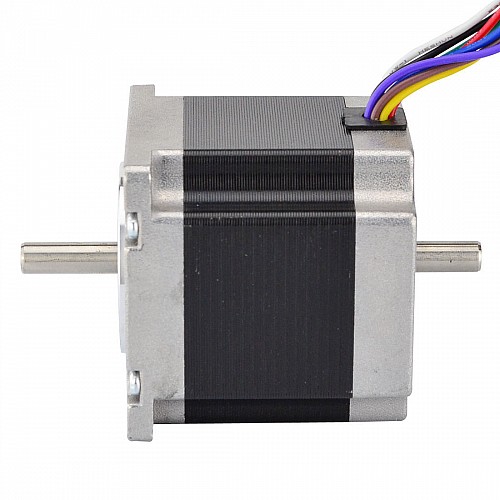

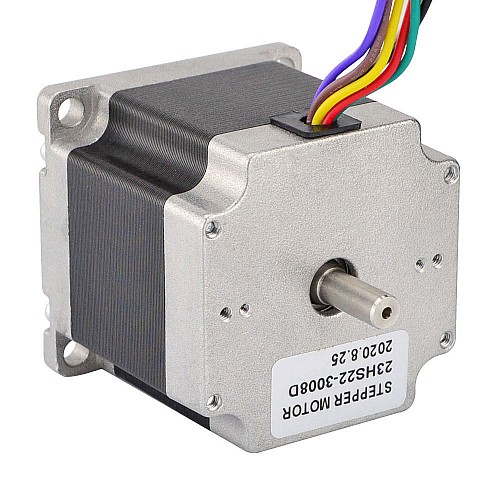

This Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. It's houlding torque reach 0.9Nm(127.5oz.in) with unipolar connection and 1.26Nm(178.4oz.in) with bipolar connection. A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

• Manufacturer Part Number: 23HS22-3008D
• Motor Type: Unipolar/Bipolar Stepper
• Step Angle: 1.8deg
• Holding Torque(Unipolar): 0.9Nm(127.5oz.in)
• Holding Torque(Bipolar Serial): 1.26Nm(178.4oz.in)
• Holding Torque(Bipolar Parallel): 1.26Nm(178.4oz.in)
• Rated Current/phase(Unipolar): 3.0A
• Rated Current/phase(Bipolar Serial): 2.12A
• Rated Current/phase(Bipolar Parallel): 4.24A
• Phase Resistance(Unipolar): 0.75 ohms
• Phase Resistance(Bipolar Serial): 1.5 ohms
• Phase Resistance(Bipolar Parallel): 0.375 ohms
• Inductance(Unipolar): 1.1mH±20%(1KHz)
• Inductance(Bipolar Serial): 4.4mH±20%(1KHz)
• Inductance(Bipolar Parallel): 1.1mH±20%(1KHz)
• Insulation Class: B 130°C[266°F]

Physical Specification

• Frame Size: 57 x 57mm
• Body Length: 56mm
• Shaft Diameter: Φ6.35mm
• Front Shaft Length: 21mm
• Rear Shaft Length: 15mm
• Number of Leads: 8
• Lead Length: 500mm
• Weight: 0.7kg
