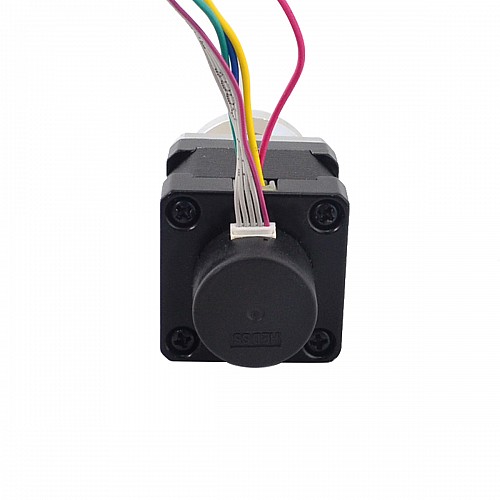

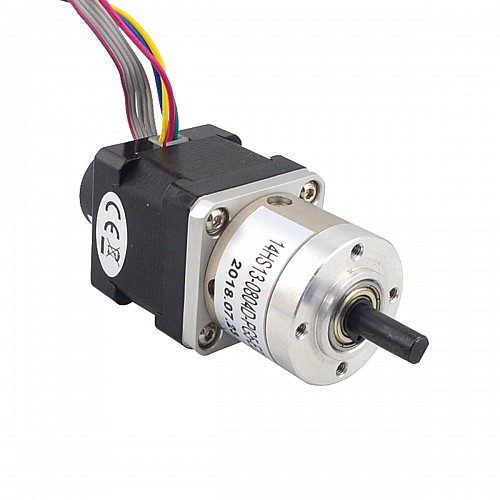

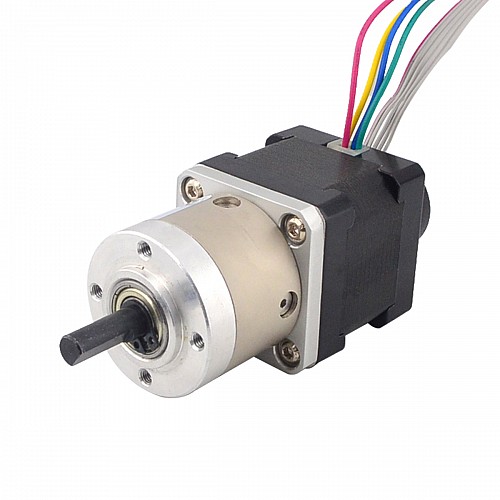

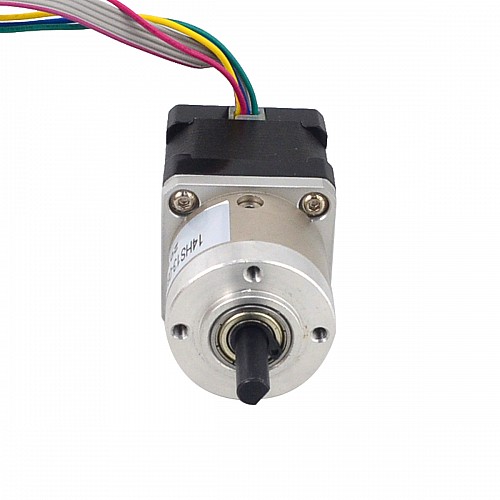

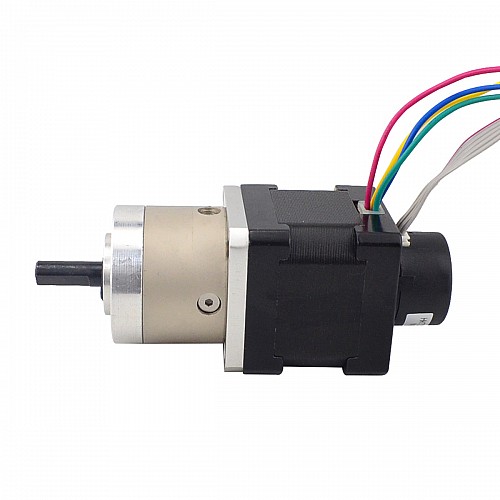

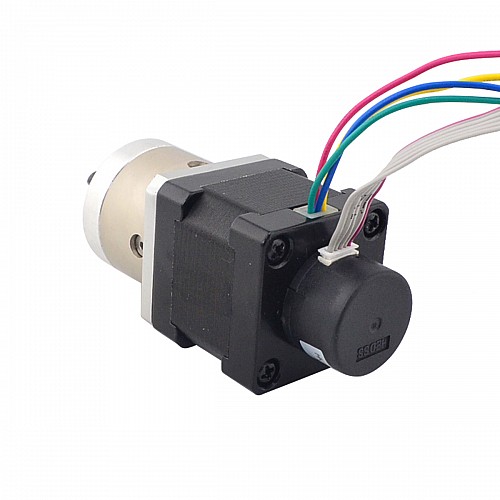

Nema 14 Closed-loop Geared Stepper L=34mm Gear Raio 5:1 Encoder 300PPR

0 reviews - Write a review

C$88.56

5 + C$84.40

10 + C$80.62

50 + C$77.14

100 + C$73.96

In Stock: Pre-order
Model: 14HS13-0804D-PG5-E22-300
Gross Weight: 0.37kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 5

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Motor Specification

Manufacturer Part Number: 14HS13-0804D-PG5-E22-300
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.20ohms
Voltage: 3.20V
Inductance: 4.50mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 28.2mm
Gear Ratio: 5.18:1
Efficiency: 90%
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-Cut length: 12mm
Backlash at No-load: <=3deg
Max.Permissible Torque: 2Nm(283.22oz.in)
Moment Permissible Torque: 4Nm(566.45oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Encoder Specification

Encoder Type: Optical Incremental
Supply Voltage : 5VDC
Output current : ≤20mA
Resolution: 300PPR
Output Signal: 2Channels
Shaft Diameter: Φ4mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	14
Inductance(mH)	4.5
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	3.2
Rated Current(A)	1.0
Stepper Motor with	Encoder/Gearbox
Physical Specification
Body Length(mm)	76.2
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	5
Gearbox Type	PG Series Planetary Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
