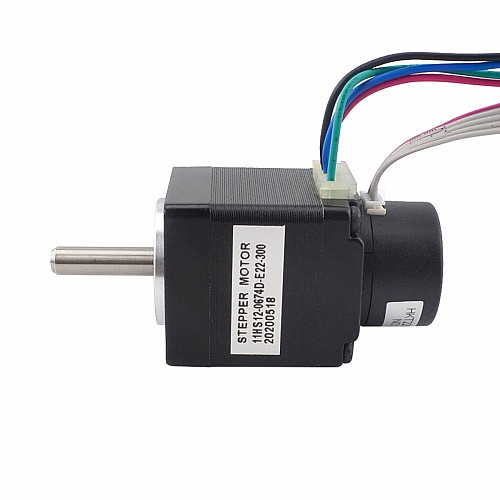

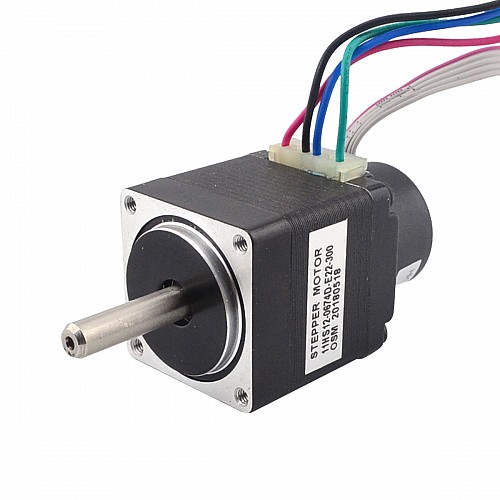

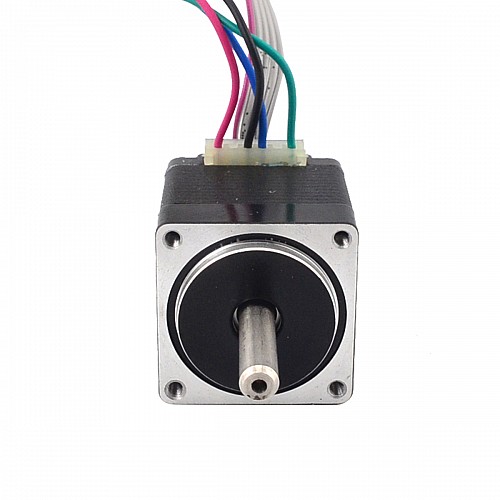

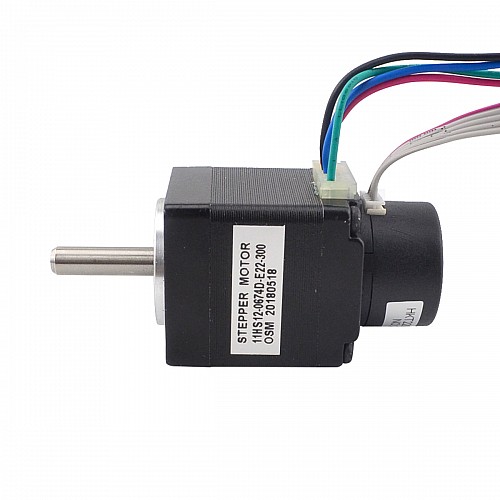

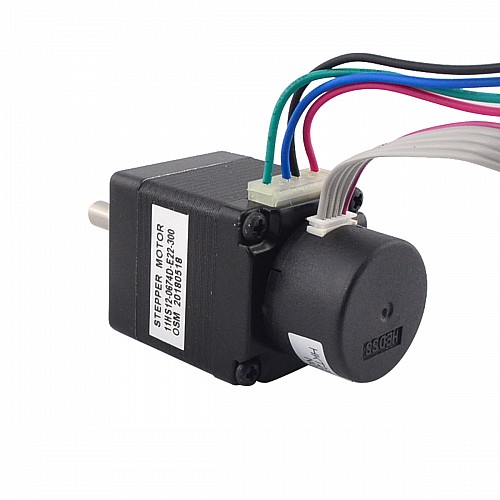

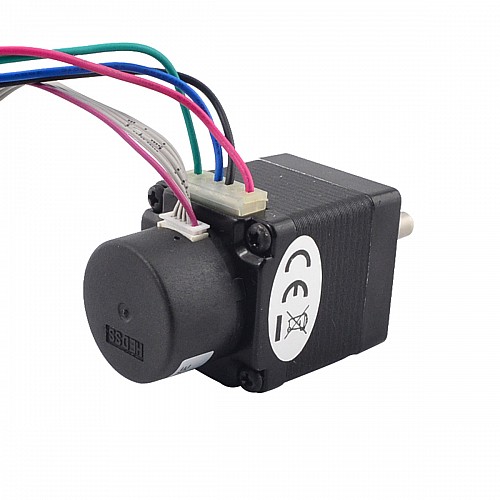

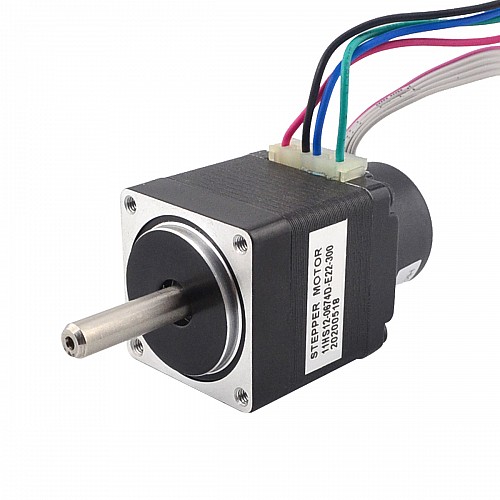

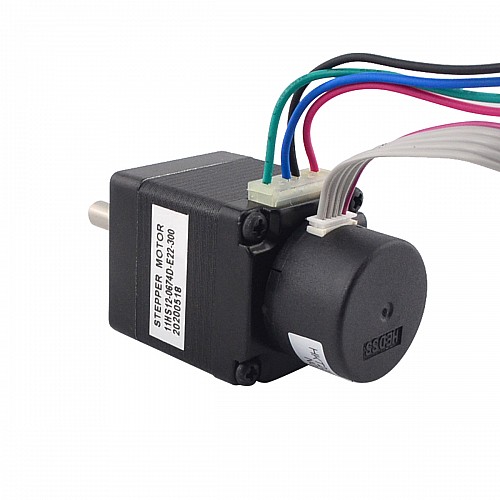

Nema 11 Closed Loop Stepper Motor 0.07Nm(9.91oz.in) Encoder 300PPR

2 reviews - Write a review

C$62.26

5 + C$59.33

10 + C$56.67

50 + C$54.23

100 + C$51.99

In Stock: 10000
Model: 11HS12-0674D-E22-300
Gross Weight: 0.29kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 582

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Motor Specification

Manufacturer Part Number: 11HS12-0674D-E22-300
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.67A
Voltage: 3.75V
Phase Resistance: 5.60ohms
Inductance: 4.00mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 28 x 28mm
Motor Length: 46mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Encoder Type: Optical Incremental
Driving Voltage : 5VDC
Output current : ≤20mA
Resolution: 300ppr
Output Signal: 2 Channels
Shaft Diameter: Φ5mm
Output Frequency: ≤30KHz
Output Low Voltage: ≤0.3VDC
Output High Voltage: ≥3.4VDC

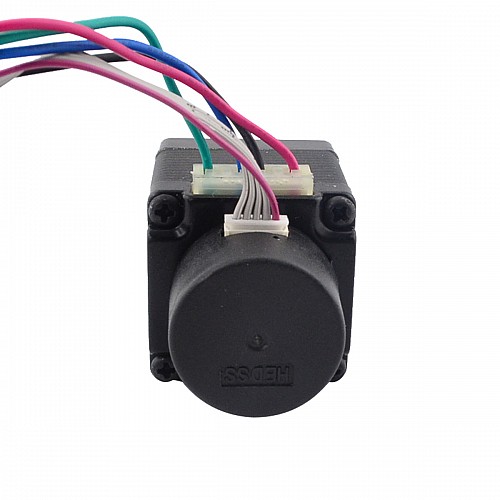

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	4	5
Encoder	0V	N.C	Ch B	+5V	Ch A

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	300PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	7
Holding Torque(oz.in)	9.91
Inductance(mH)	4
Output Circuit Type	Push-Pull (Single-Ended)
Output Signal Channels	2
Phase Resistance(ohms)	5.6
Rated Current(A)	0.67
Physical Specification
Body Length(mm)	46
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	20
