Nema 14 External 35mm Stack 0.57A Lead 2.438mm(0.096") Length 150mm

Discontinued

Nema 14 External 35mm Stack 0.57A Lead 2.438mm(0.096") Length 150mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 14E13S0574JE3-150RS
Gross Weight: 0.40kg
Certificated: ISO, CE, RoHS

Sold: 33

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

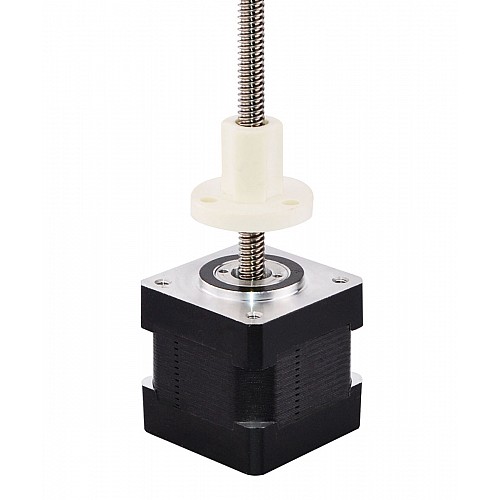

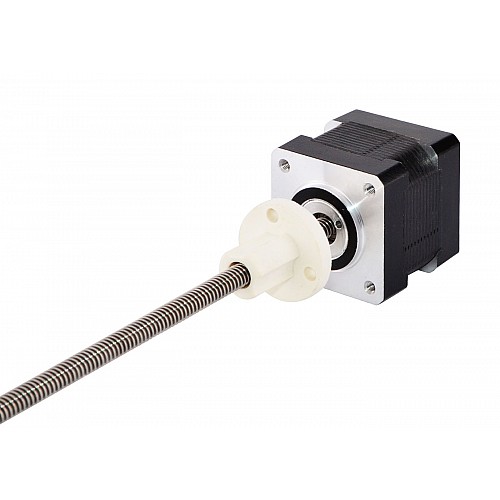

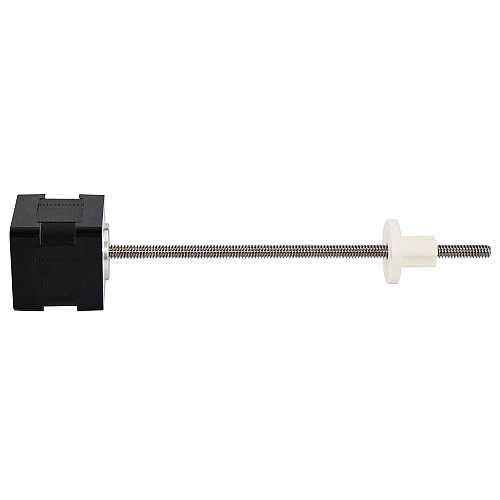

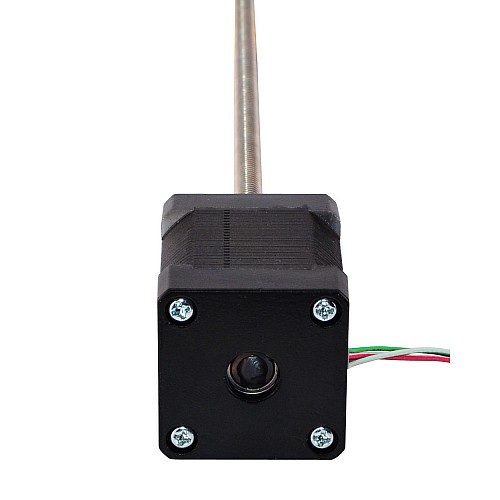

The motor part is 35mm body 1.8 degree 0.57A Nema 14 stepper motor, and it has integrated with a 5.54mm(0.2181") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 2.438mm(0.096") per revolution. This model is almost exactly same as Haydon Kerk 35000 series size 14 external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 14E13S0574JE3-150RS(14E13S0574JE-150RS)
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 140N(300pps)
Rated Current/phase: 0.57A
Phase Resistance: 8.8ohms
Voltage: 5V
Inductance: 13mH±20%(1KHz)

Physical Specification

Frame Size: 35 x 35mm
Body Length: 35mm
Lead Screw Length: 150mm(5.9055")

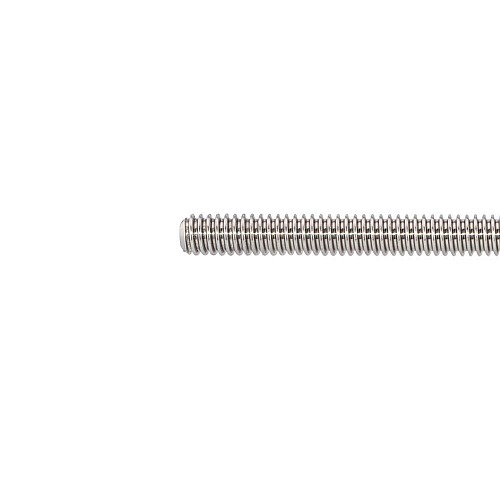

Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.012192mm(0.00048")
Lead Travel/Revolution: 2.438mm(0.096")
Number of Leads: 4
Cable Length: 300mm
Weight : 162g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 14E13S0574JE4-150RS.

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	13
Minimal Thrust(N) @300pps	140
Phase Resistance(ohms)	8.8
Rated Current(A)	0.57
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	35
Frame Size(mm)	Nema 14 (35 x 35)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
Lead Screw Diameter(mm)	5.54
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	2.4384
Lead Travel/Step(mm)	0.012192
Linear Motor Type	External(Acme)
No. of Lead	4
