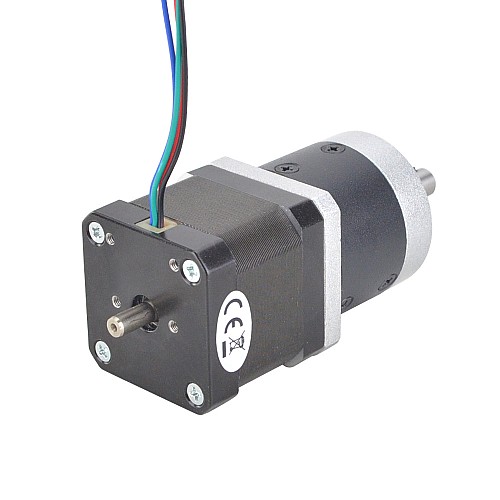

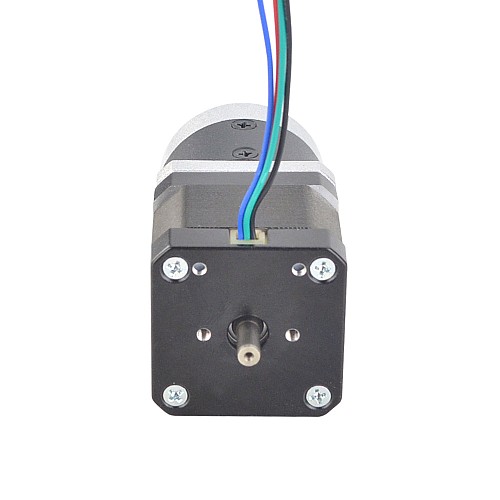

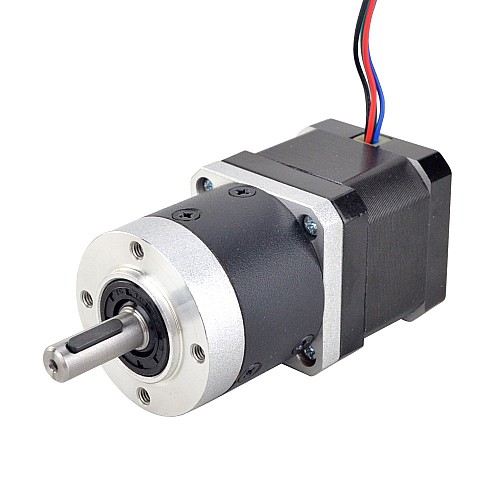

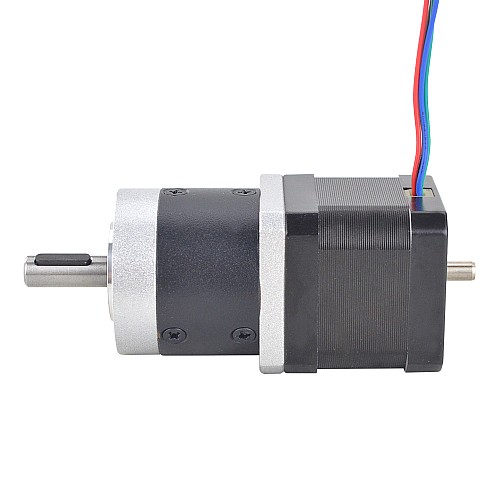

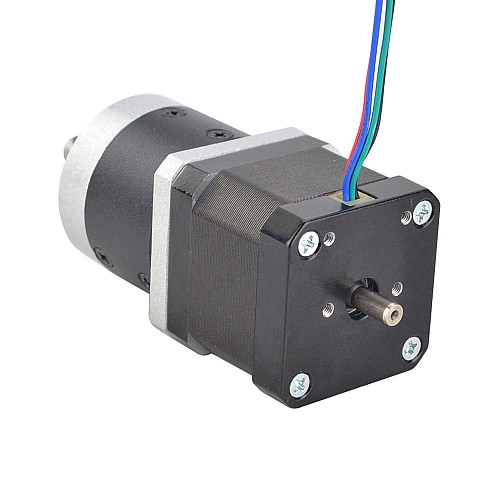

Nema 17 Dual Shaft Stepper Motor L=39mm Gear Ratio 10:1 High Precision Planetary Gearbox 9.5mm Rear Shaft Length

0 reviews - Write a review

C$84.15

5 + C$79.27

10 + C$74.93

50 + C$71.04

100 + C$67.53

In Stock: Pre-order
Model: 17HS15-1684D-HG10-AR3
Gross Weight: 0.62kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Part Number: 17HS15-1684D-HG10-AR3
Motor Type: Bipolar Stepper
Step Angle: 0.18deg
Holding Torque without Gearbox: 39Ncm(55oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.6ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10 :1
Efficiency: 92%
Backlash at No-load: <=30arcmin
Max. Permissible Torque: 3.5Nm(495.6oz.in)
Moment Permissible Torque: 6Nm(849.7oz.in)
Max. Radial Load: 100N
Ambient Temperature: -10 - 90℃
Noise: <=50dB
Life: 20000h

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 41mm
Front Shaft Diameter: Φ8mm
Front Shaft Length: 23.5mm
Rear Shaft Diameter:Φ5mm
Rear Shaft Length: 9.5mm
Key-way Length: 14mm
Number of Leads: 4
Lead Length: 320mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

If you expect to remove key on motor shaft, please leave us a message when ordering.

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.39
Inductance(mH)	3.2
Phase Resistance(ohms)	1.6
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	80
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Dual Shaft
