Nema 17 External 48mm Stack 1.68A Lead 8mm(0.31496") Lead Screw Length 200mm

Discontinued

Nema 17 External 48mm Stack 1.68A Lead 8mm(0.31496") Lead Screw Length 200mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17LS19-1684E-200H
Gross Weight: 0.60kg
Certificated: ISO, CE, RoHS

Sold: 1

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

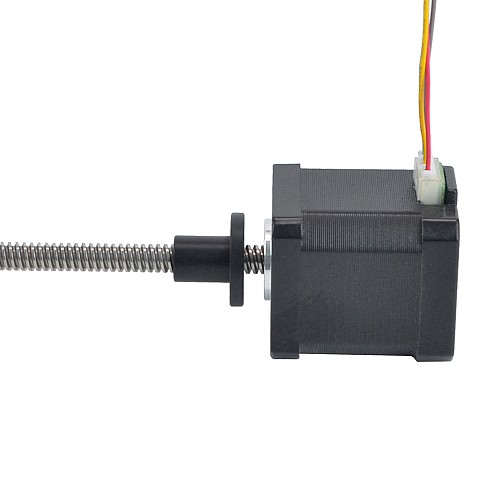

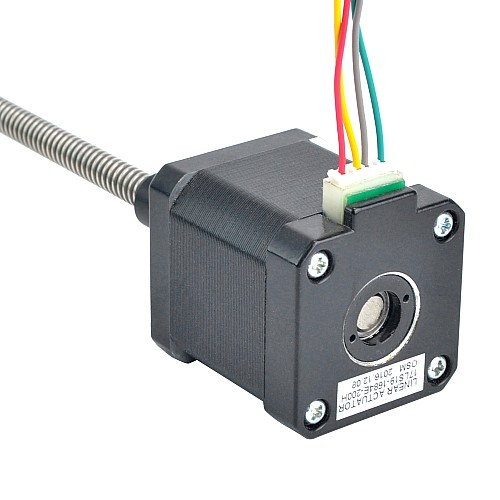

This model is economy linear stepper which named Nema 17 external linear actuator, it was composed of 48mm 1.8 degree 1.68A Nema 17 stepper motor and 200mm length Tr8x4 linear screw.

Electrical Specification

Manufacturer Part Number: 17LS19-1684E-200H
Motor Type: External (Trapezoidal)
Step Angle: 1.8deg
Holding Torque: 44Ncm(62.31oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm

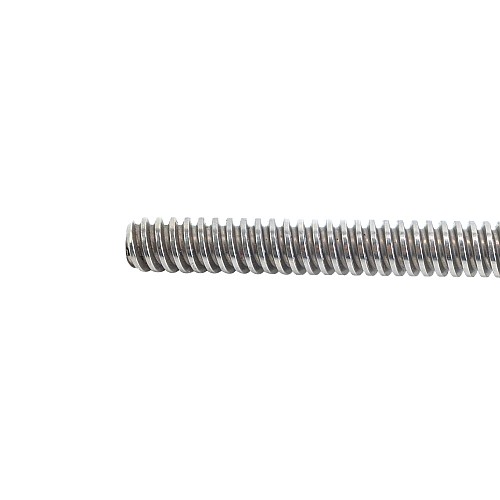

Lead Screw Length: 200mm(7.87")
Lead Screw Diameter: Φ8mm(0.315")
Lead/Revolution: 2mm(0.07874")
Number of Leads: 4
Cable Length: 500mm

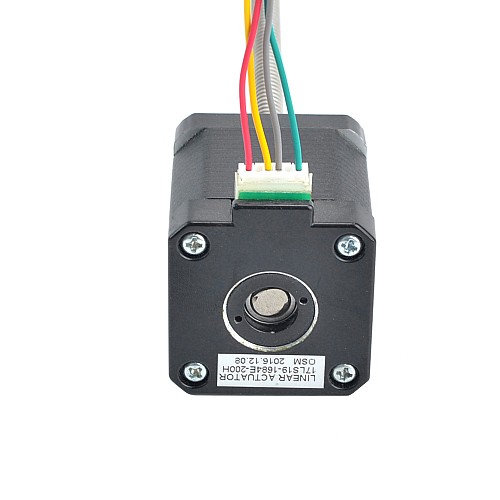

Connection

A+	A-	B+	B-
Red	Gray	Yellow	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 17E19S1684MB4-200RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	44
Holding Torque(oz.in)	62.31
Inductance(mH)	2.8
Phase Resistance(ohms)	1.65
Rated Current(A)	1.68
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
Lead Screw Diameter(mm)	8
Lead Screw Length(mm)	200
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	External (Trapezoidal)
No. of Lead	4
