17E19S2504WF5-150RS
Rated Current(A)2.5
Phase Resistance(ohms)0.8
Inductance(mH)1.8
Linear Motor TypeExternal(Acme)
Question

Downloads

17E19S2504WF5-150RS_Full_Datasheet.pdfPDF · 148.31KB17E19S2504WF5-150RS.STEPSTEP · 388.12KBLog in to download
Same series
ModelRated Current(A)Phase Resistance(ohms)Inductance(mH)Linear Motor TypePriceStock
11E13S0424ED-150RS-USED0.4211.46External(Acme)C$46.99In stock
11E13S0424ED5-150RS0.4211.46External(Acme)C$54.29In stock
11E13S0424FD3-150RS0.4211.46External(Acme)C$93.99In stock
11E13S0424FD4-150RS0.4211.46External(Acme)C$47.37In stock
11E13S0424GD3-150RS0.4211.46External(Acme)C$93.99Backorder
11E13S0754ED4-100RS0.753.22External(Acme)C$40.79In stock
11E13S1004FD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004FD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004GD4-150RS-OE1K1.02.11.5External(Acme)C$113.26In stock
11E13S1004GD5-150RS1.02.11.5External(Acme)C$51.27In stock
11E13S1004HD5-150RS1.02.11.5External(Acme)C$53.81Backorder
11E13S1004HD5-180RS-E22-3001.02.11.5External(Acme)C$105.85In stock
11E18S0754ED3-250RS0.756.75.8External(Acme)C$122.37In stock
11E18S0754ED4-101RS0.756.73External(Acme)C$41.18In stock
11E18S0754FD4-250RS0.756.75.8External(Acme)C$59.73In stock
11E18S0754HD5-250RS0.756.75.8External(Acme)C$73.89In stock
11E18S1004FD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004GD5-250RS1.03.73.7External(Acme)C$62.21In stock
11E18S1004HD5-150RS1.03.73.7External(Acme)C$54.29Backorder
11E18S1004ND5-150RS-SALE1.03.73.7External(Acme)C$47.98In stock
11E20S0674ED4-100RS0.679.25.7External(Acme)C$46.11In stock
14E13S0574FF3-150RS0.578.813External(Acme)C$107.05Backorder
14E13S0574JE4-150RS0.578.813External(Acme)C$65.58In stock
14E13S0574LF3-150RS0.578.813External(Acme)C$90.44Backorder
14E13S1504GF5-150RS1.50.951External(Acme)C$48.26In stock
14E17S0914FF3-250RS0.915.57.63External(Acme)C$122.37Backorder
14E17S0914LF3-250RS-SALE0.915.57.63External(Acme)C$86.07In stock
14E19S1504FF5-150RS1.51.52.0External(Acme)C$51.27In stock
14E19S1504GF5-150RS1.51.52.0External(Acme)C$51.27In stock
View all in category

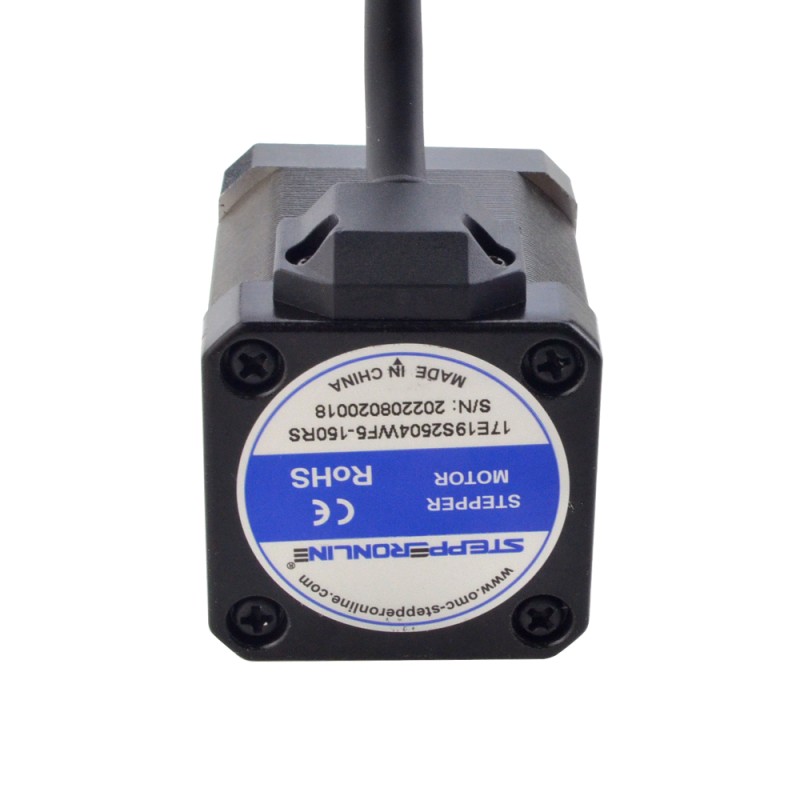

NEMA 17 External Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 12.7mm(0.5") Lead Length 150mm
This is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw ... Read More
0 reviews • Write a review
from
C$49.76
5 + C$48.25
10 + C$46.82
50 + C$45.47
100 + C$44.20

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

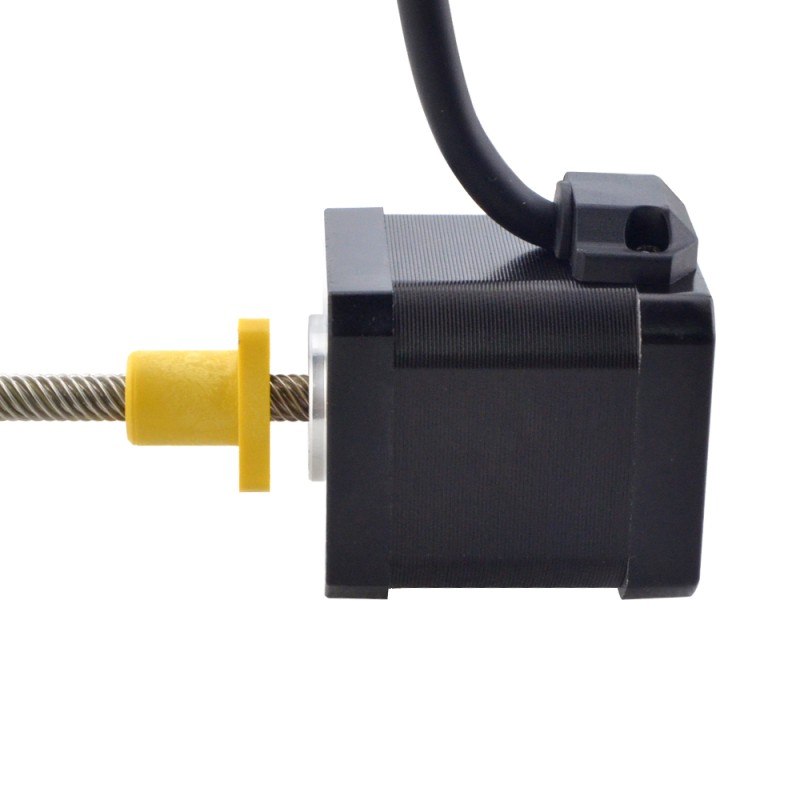

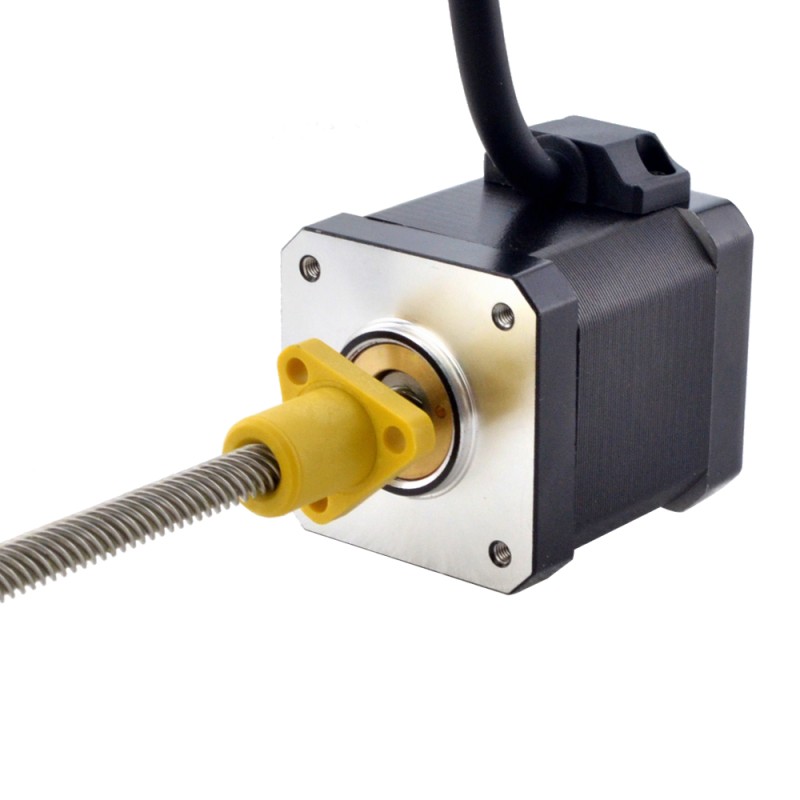

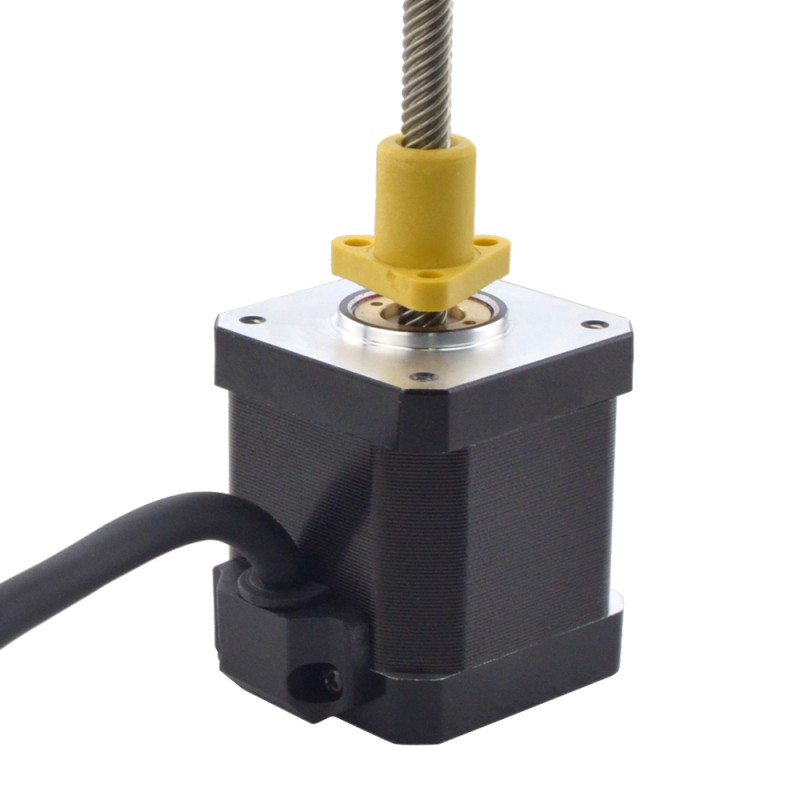

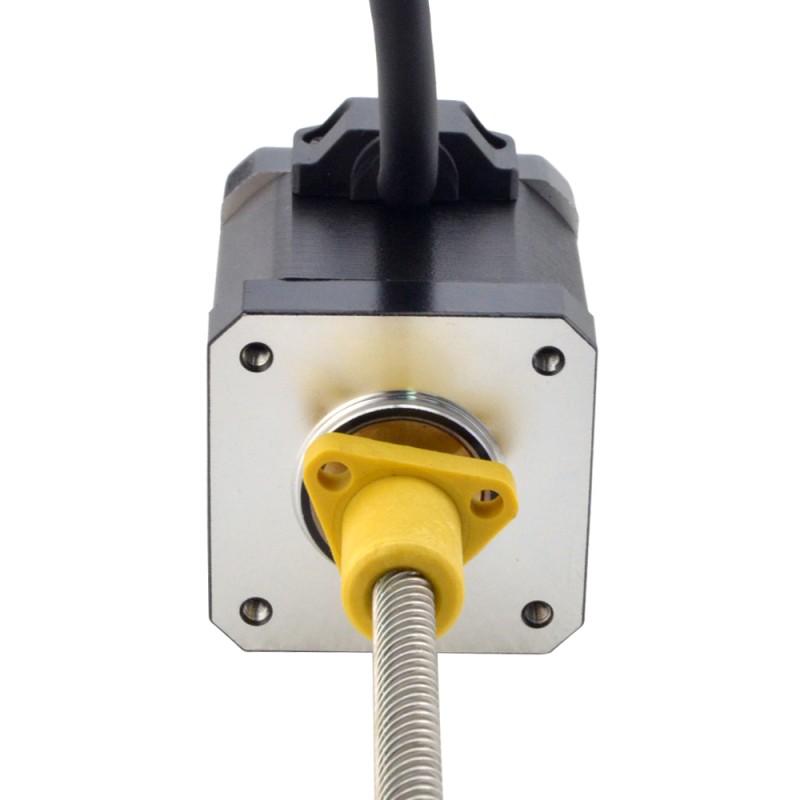

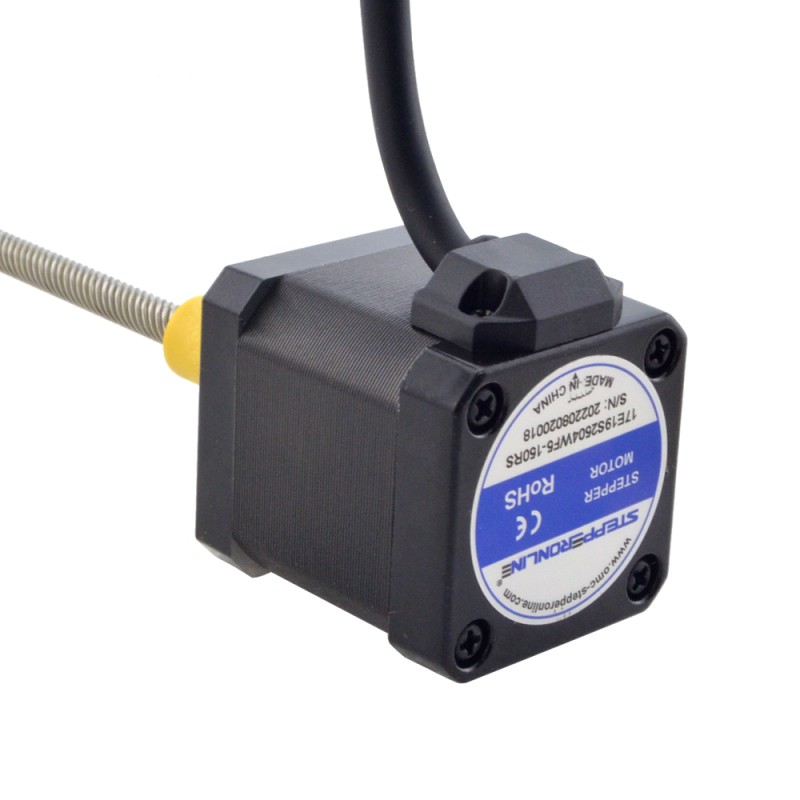

This is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 12.7mm(0.5") per revolution. This model is a Nema 17 ACME screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

  • Manufacturer Part Number: 17E19S2504WF5-150RS
  • Motor Type: External(ACME)
  • Step Angle: 1.8°
  • Holding Torque: 0.5Nm(70.82oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 0.8ohms
  • Inductance: 1.8mH±20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm

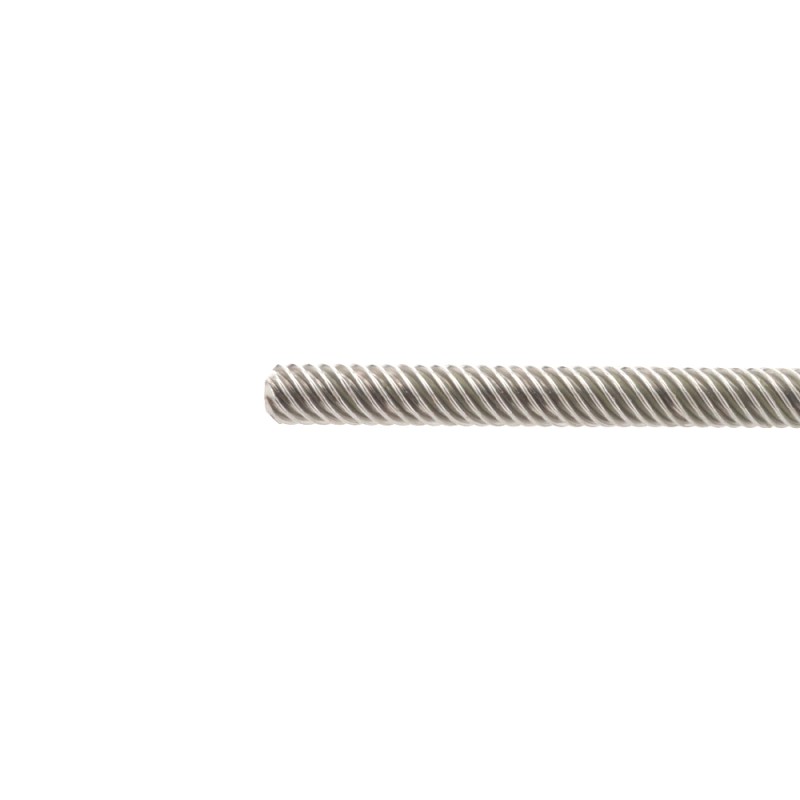

  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.0635mm(0.0025")
  • Lead Travel/Revolution: 12.7mm(0.5")
  • Number of Leads: 4
  • Number of Thread Starts: 8
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Inductance(mH) 1.8
Phase Resistance(ohms) 0.8
Rated Current(A) 2.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 12.7
Lead Travel/Step(mm) 0.0635
Linear Motor Type External(Acme)
No. of Lead 4
With Encoder No
