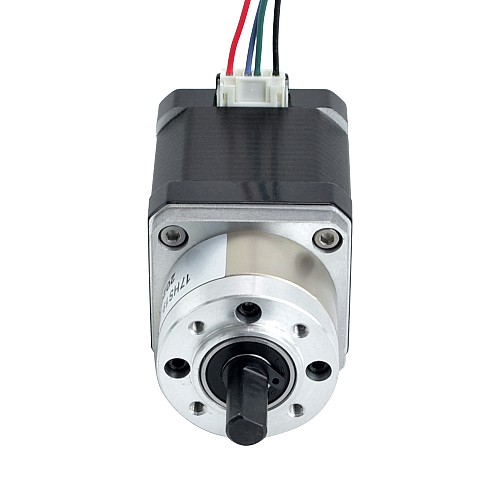

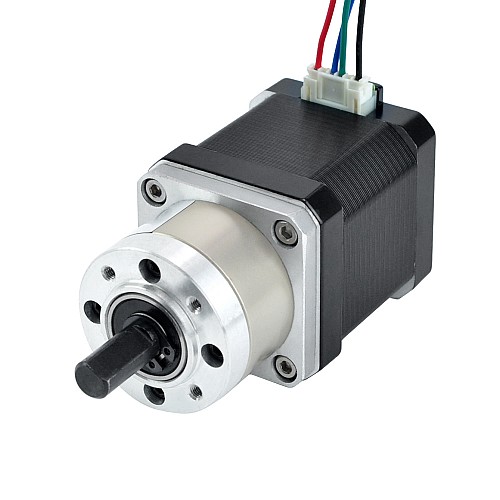

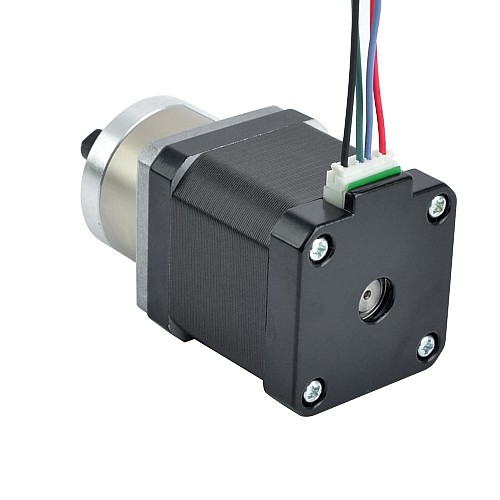

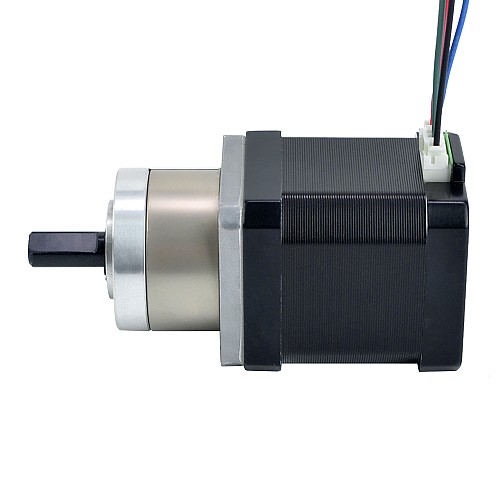

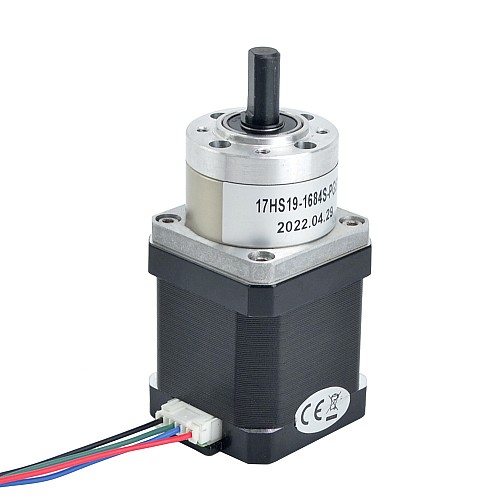

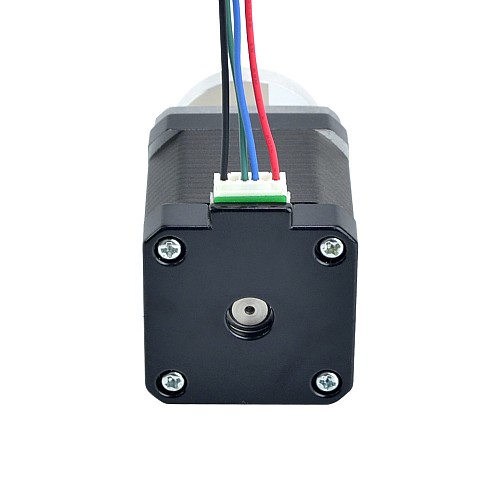

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 5:1 Planetary Gearbox 1850mm Cable Length

0 reviews - Write a review

C$45.13

5 + C$43.01

10 + C$41.07

50 + C$39.31

100 + C$37.68

In Stock: Pre-order
Model: 17HS19-1684S-PG5X
Gross Weight: 0.61kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 29

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This Nema 17 stepper motor with 48mm body, 1850mm cable and 1.68A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque

Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG5X
Motor Type: Bipolar Stepper
Step Angle: 0.35deg
Holding Torque without Gearbox: 52Ncm(73.6oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.8ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.84oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 27.3mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 1850mm

Connection

A+	A-	B+	B-
Black	Green	Blue	Red

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.52
Inductance(mH)	3.2
Phase Resistance(ohms)	1.8
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	75.3
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1850
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
