Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox

0 reviews - Write a review

C$42.71

5 + C$40.70

10 + C$38.88

50 + C$37.21

100 + C$35.67

In Stock: 10000
Model: 17HS19-0406S-PG14
Gross Weight: 0.65kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

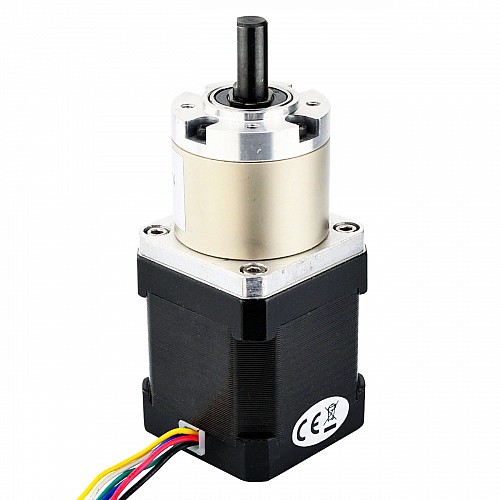

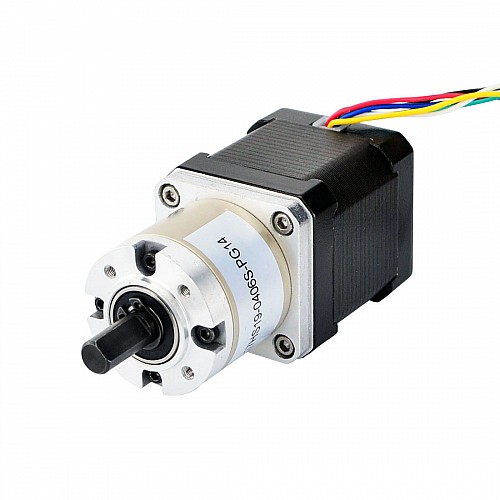

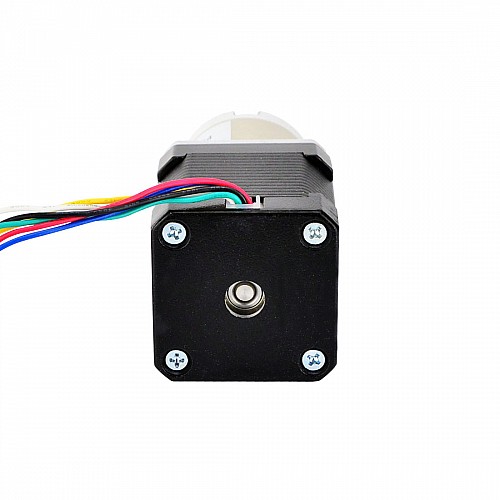

This unipolar Nema 17 stepper motor with 48mm body and 0.4A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 17HS19-0406S-PG14
Motor Type: Unipolar Stepper
Step Angle: 0.131deg
Holding Torque without Gearbox: 32Ncm(45.32oz.in)
Rated Current/phase: 0.4A
Phase Resistance: 30 ohms
Inductance: 25mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 13.73:1
Efficiency: 80%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 35mm
Shaft Diameter: Φ8mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 560g

Connection

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Unipolar
Current(A)	0.4
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.32
Inductance(mH)	25
Phase Resistance(ohms)	30
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	83
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	13.73
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	6
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	560

File	Size
17HS19-0406S-PG14_Full_Datasheet.pdf	130.71KB	Download
17HS19-0406S-PG14.STEP	2.42MB	Download
17HS19-0406S-PG14_Torque_Curve.pdf	163.18KB	Download
17HS19-0406S_Torque_Curve.pdf	212.03KB	Download
