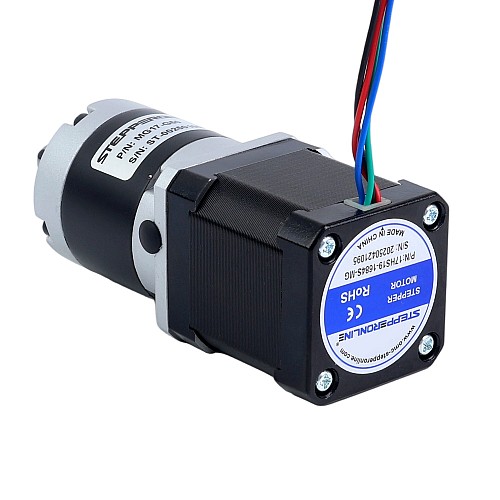

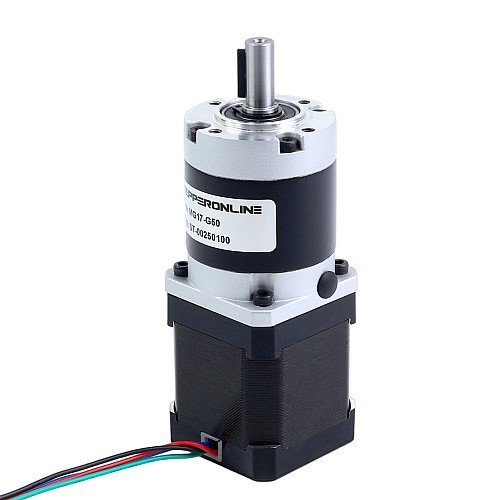

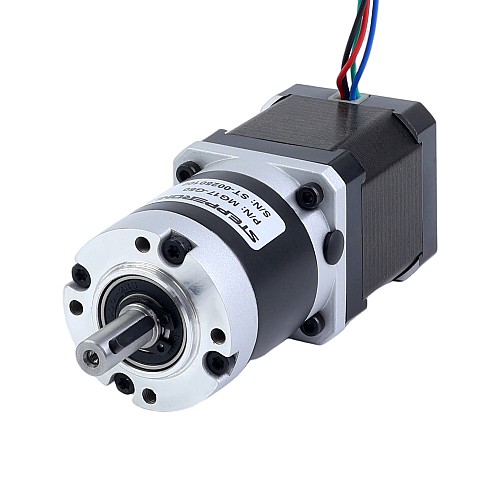

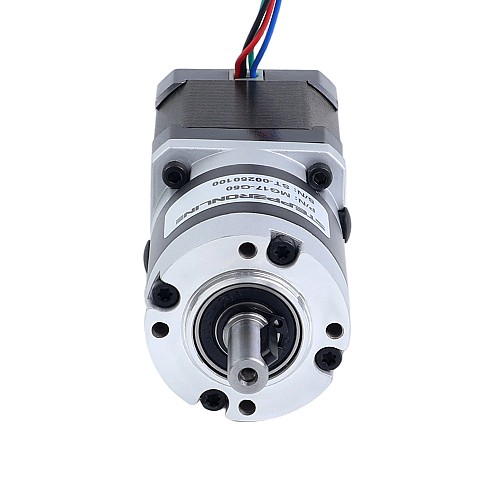

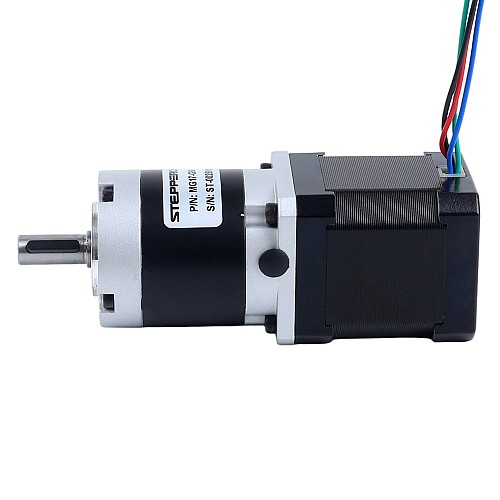

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 50:1 MG Series Planetary Gearbox

0 reviews - Write a review

C$43.73

5 + C$42.00

10 + C$40.40

50 + C$38.92

100 + C$37.53

In Stock: 10000
Model: 17HS19-1684S-MG50
Gross Weight: 0.80kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 2

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 17 stepper motor delivers a holding torque of 0.52Nm(73.64oz.in) and features our high-precision MG series gearbox with a 50:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

Part Number: 17HS19-1684S-MG50
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.52Nm(73.64oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.80ohms±10%
Inductance: 3.20mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 50:1
Efficiency: 80%
Backlash at No-load: <=45arcmin
Maximum Permissible Torque: 10.00Nm(1416.12oz.in)
Moment Permissible Torque: 20.00Nm(2832.23oz.in)

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 51mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.52
Inductance(mH)	3.2
Phase Resistance(ohms)	1.8
Physical Specification
Backlash at No-load	<=45arcmin
Body Length(mm)	99
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	50
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft
