Nema 17 Stepper Motor Bipolar L=34mm w/ Gear Ratio 10:1 MG Series Planetary Gearbox

0 reviews - Write a review

C$33.26

5 + C$31.94

10 + C$30.72

50 + C$29.59

100 + C$28.55

In Stock: 10000
Model: 17HS13-0404S-MG10
Gross Weight: 0.55kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

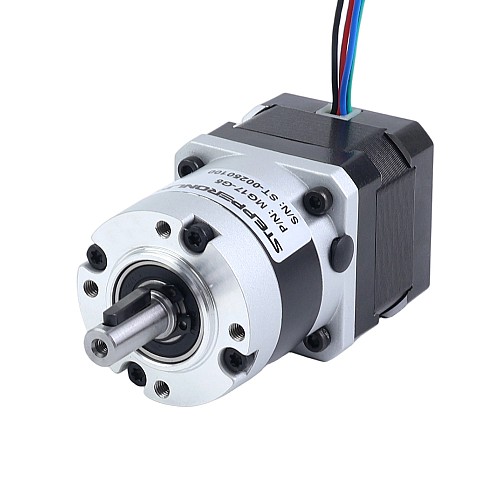

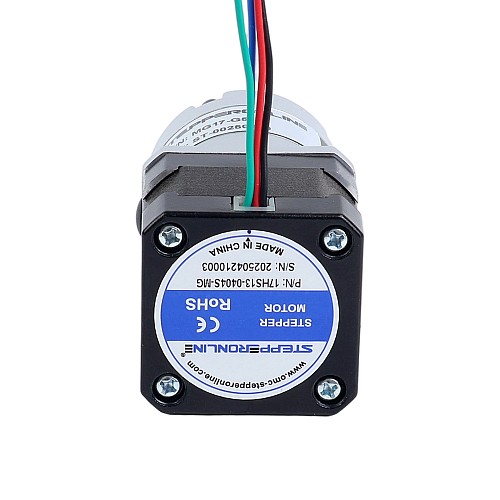

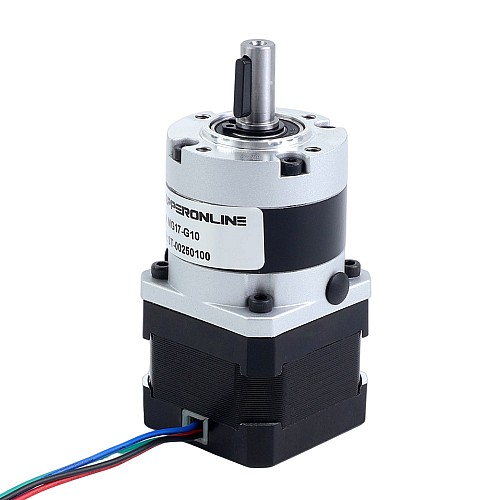

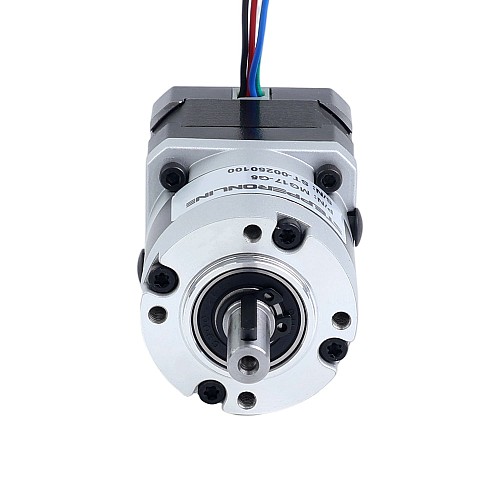

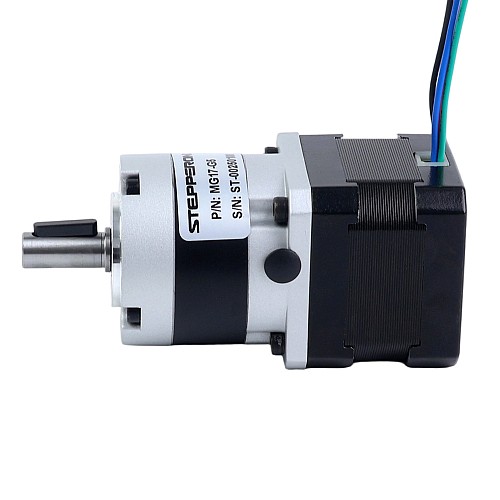

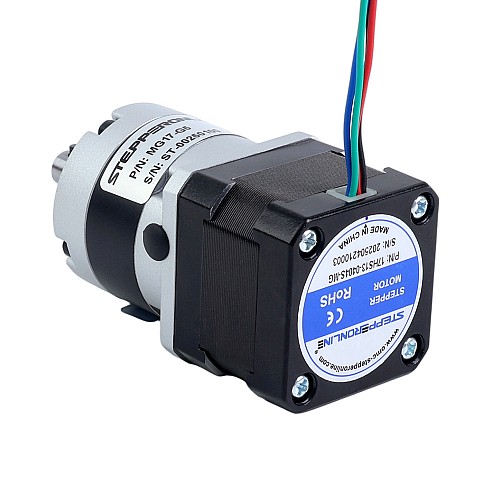

This Nema 17 stepper motor delivers a holding torque of 0.25Nm(35.40oz.in) and features our high-precision MG series gearbox with a 10:1 gear ratio. Unlike the EG series' steel gears, the MG series utilizes durable powder metallurgy gears, offering an optimal balance of precision and cost-effectiveness for your applications.
The integrated shaft coupling design allows for easy motor or gearbox replacement, providing flexibility for your projects.

Electrical Specification

Part Number: 17HS13-0404S-MG10
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.25Nm(35.40oz.in)
Rated Current/phase: 0.40A
Phase Resistance: 27.00ohms±10%
Inductance: 28.50mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Powder Metallurgy
Gear Ratio: 10:1
Efficiency: 90%
Backlash at No-load: <=30arcmin
Maximum Permissible Torque: 5.00Nm(708.06 oz.in)
Moment Permissible Torque: 10.00Nm(1416.12oz.in)

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 34mm
Gearbox Length: 40mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.4
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.25
Inductance(mH)	28.5
Phase Resistance(ohms)	27
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	74
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Powder Metallurgy
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	21.5
Single Shaft/Dual Shaft	Single Shaft
