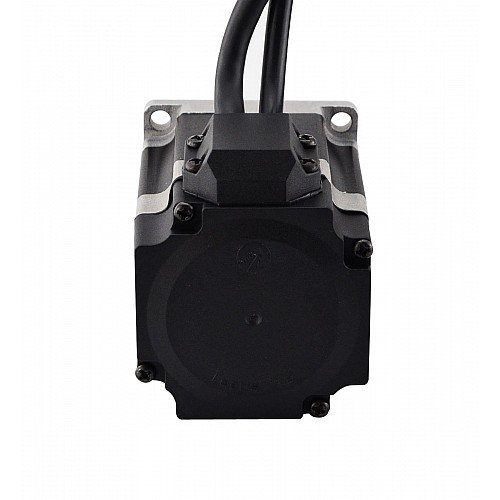

Nema 23 Closed Loop Stepper Motor 1.26Nm/178.4oz.in Encoder 1000CPR

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 23HS22-2804D-E1000
Gross Weight: 0.85kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Motor Specification

Manufacturer Part Number: 23HS22-2804D-E1000
Motor Type: Bipolar
Step angle: 1.8 deg
Holding torque: 1.26Nm(178.4oz.in)
Rated current / phase: 2.8A
Phase resistance: 0.9ohms
Inductance: 2.5mH ± 20%(1KHz)
Frame size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20

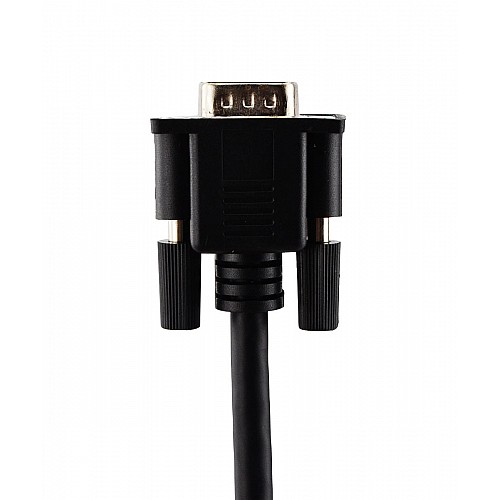

Connection

A+	A-	B+	B-
Green	Red	Yellow	Blue

Resources

Motor Datasheet: 23HS22-2804D-E1000.pdf

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23HS22-4004D-E1000.
