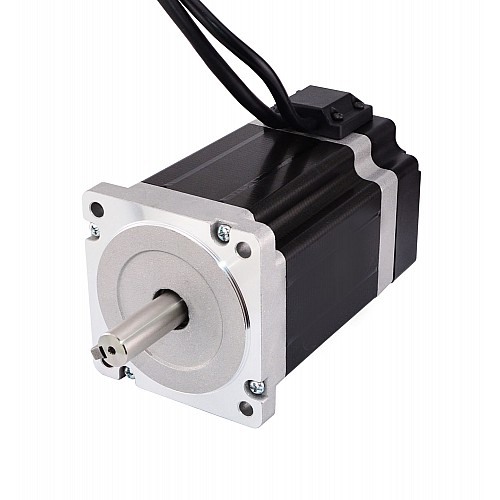

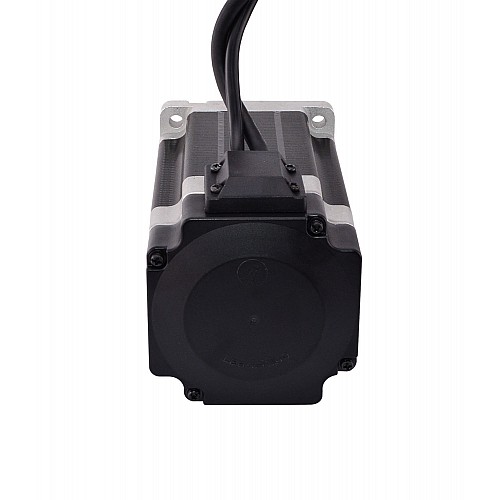

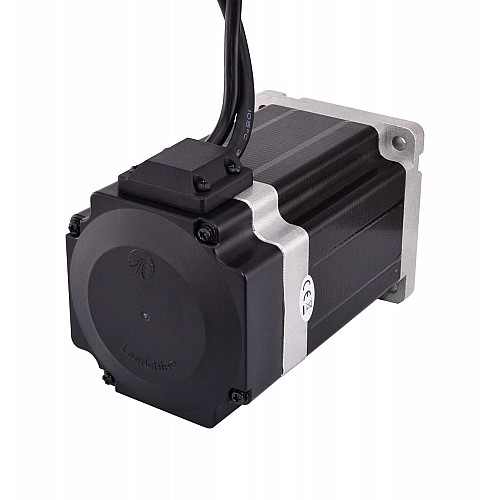

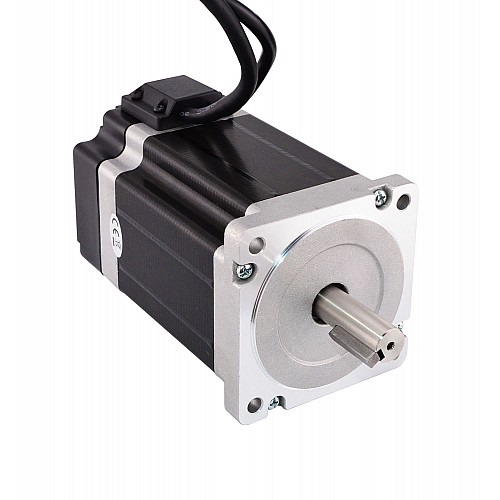

Nema 34 Closed Loop Stepper Motor 7.0Nm/1001oz.in Encoder 1000CPR

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 34HS38-4204D-E1000
Gross Weight: 3.60kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 84

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Motor Specification

Manufacturer Part Number: 34HS38-4204D-E1000
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 7.07Nm(1001oz.in)
Rated Current/phase: 4.24A
Voltage: 3.39V
Phase Resistance: 0.8ohms
Inductance: 8mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Driving Voltage : 5V
Output current : 55mA
Resolution : 1000ppr
Output Signal : 2 Channels
Bore Diameter : Φ8mm
Output Frequency : ≤1MHz
Running Speed : ≤5000rpm
IP Protection : IP20

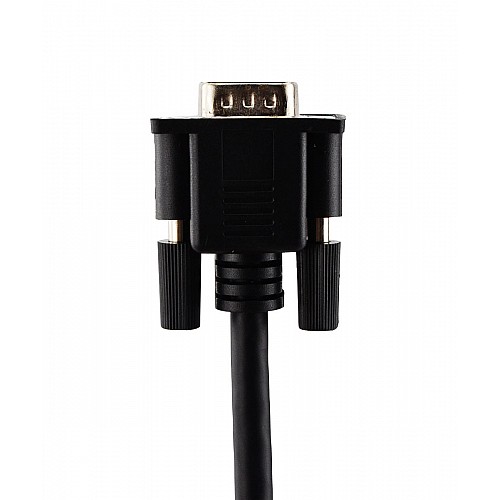

Connection

A+	A-	B+	B-
Black	Red	Yellow	Blue

Resources

Motor Datasheet: 34HS38-4204D-E1000.pdf

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 34HS46-6004D-E1000.
