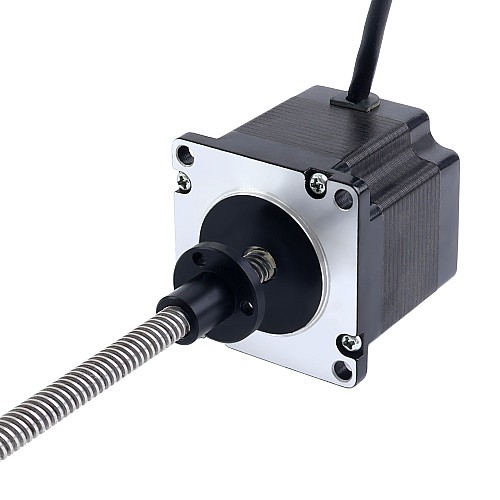

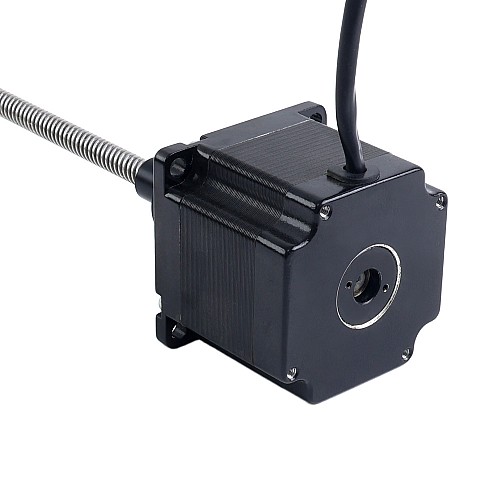

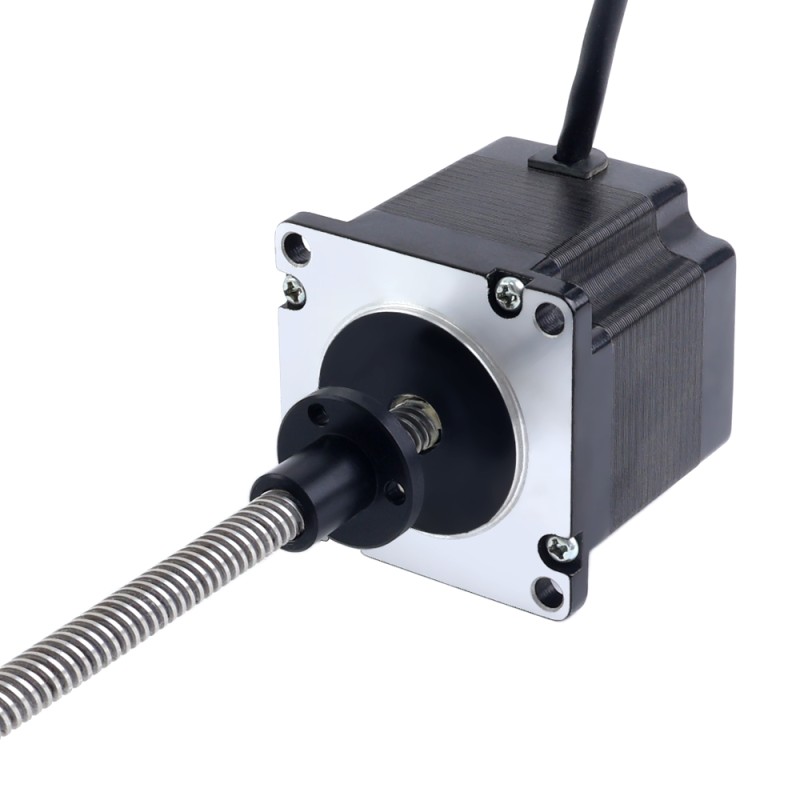

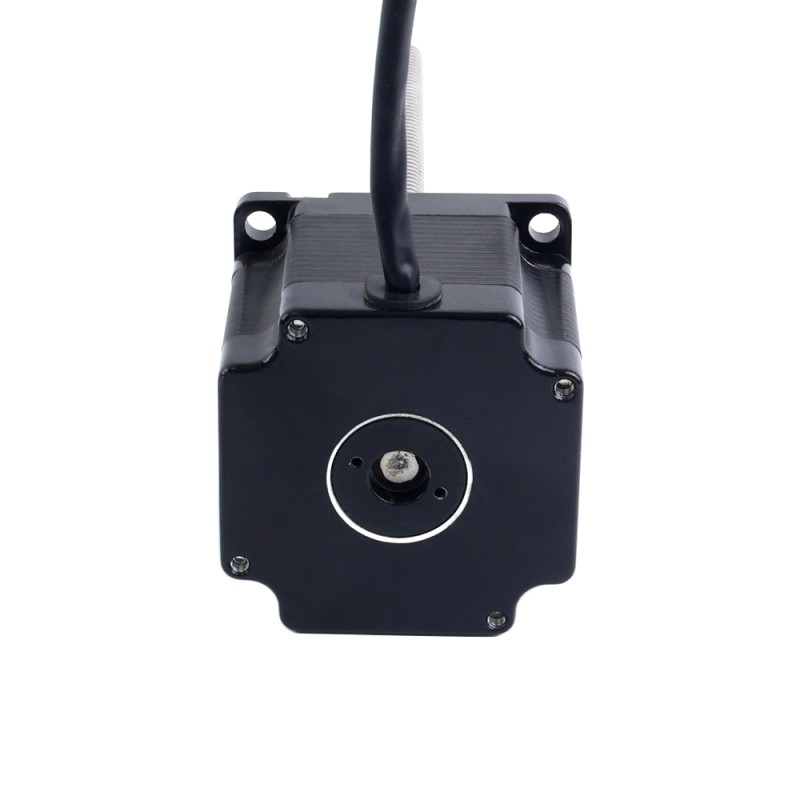

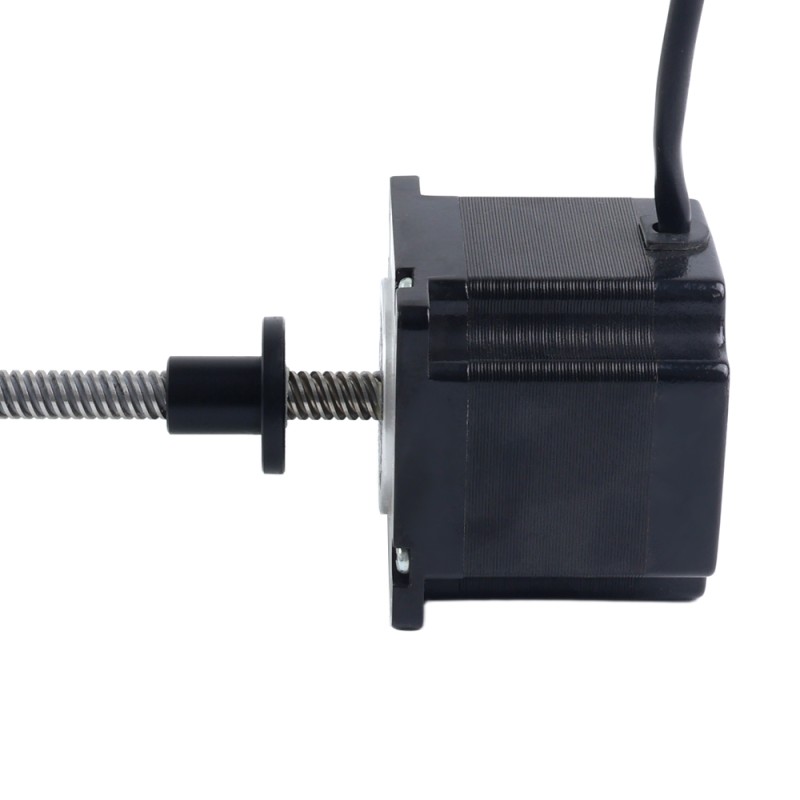

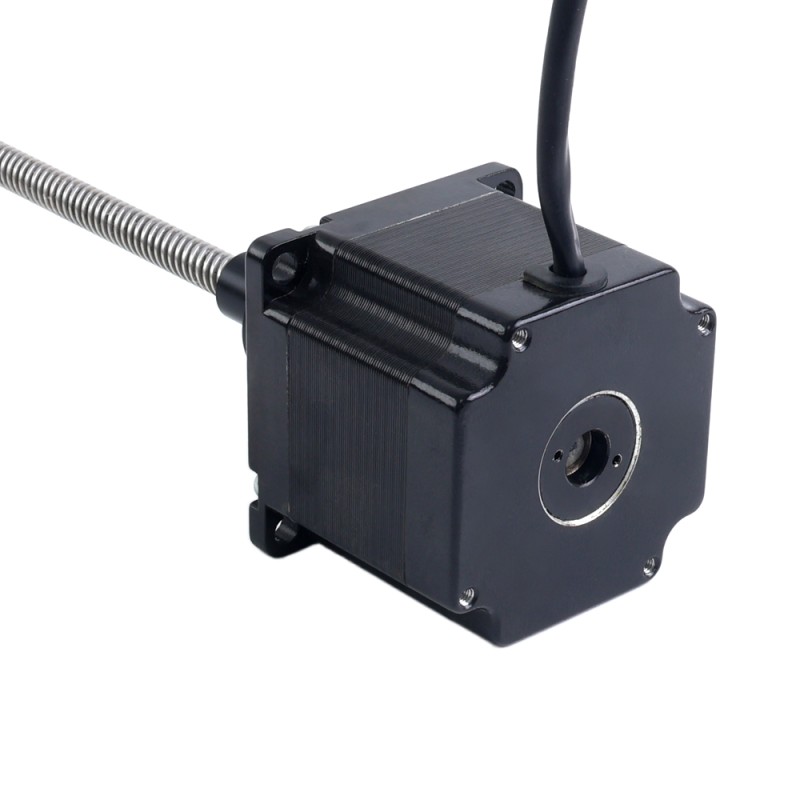

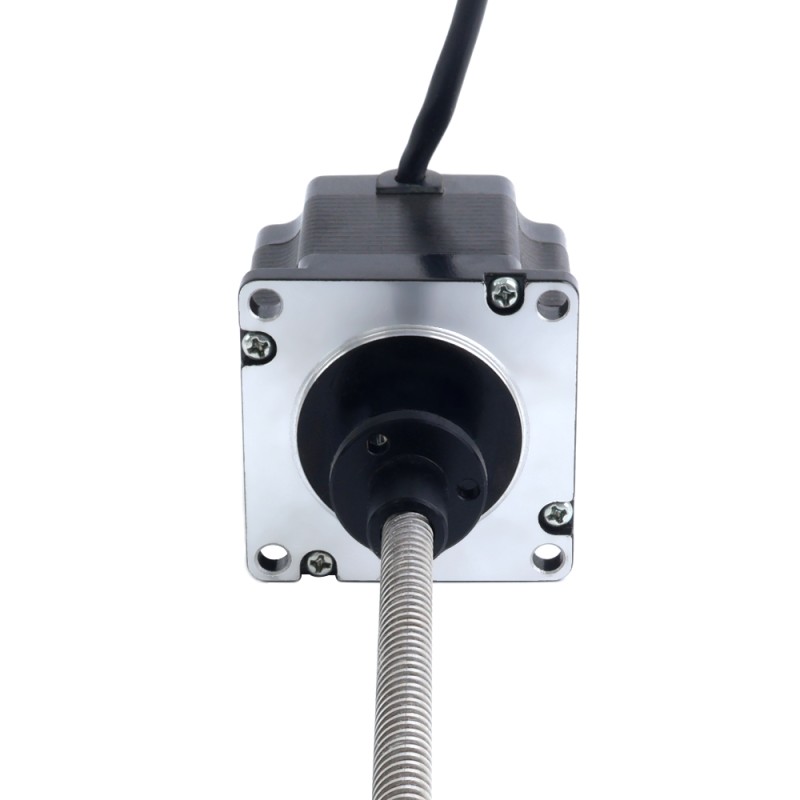

23E20S0904MB2-150RS
Rated Current(A)0.9
Linear Motor TypeExternal (Trapezoidal)
Lead Travel/Revolution(mm)8
Lead Travel/Step(mm)0.04
Question

Downloads

23E20S0904MB2-150RS_Full_Datasheet.pdfPDF · 226.49KB
Same series
ModelRated Current(A)Linear Motor TypeLead Travel/Revolution(mm)Lead Travel/Step(mm)PriceStock
17E13S0404DB2-200RS0.4External (Trapezoidal)40.02C$46.11In stock
17E13S0404DB4-100RS0.4External (Trapezoidal)40.02C$24.11In stock
17E13S0404DB4-150RS0.4External (Trapezoidal)40.02C$28.01In stock
17E13S0404MB2-032RB0.4External (Trapezoidal)80.04C$31.91Backorder
17E13S0404MB4-032RB0.4External (Trapezoidal)80.04C$28.01In stock
17E13S0404MB4-150RS0.4External (Trapezoidal)80.04C$26.77In stock
17E13S0404MB4-200RS0.4External (Trapezoidal)80.04C$28.83In stock
17E13S0404MB4-300RS0.4External (Trapezoidal)80.04C$32.94In stock
17E13S1684MB4-200RS-OE1K1.68External (Trapezoidal)80.04C$69.64In stock
17E15S1684DB4-350RS-H1.68External (Trapezoidal)40.02C$72.72In stock
17E16S1504AB2-310RS1.5External (Trapezoidal)20.01C$18.72In stock
17E19S0406AB2-300RA0.4External (Trapezoidal)20.01C$65.61In stock
17E19S0406AB2-330RA0.4External (Trapezoidal)20.01C$65.61Backorder
17E19S1684AB4-330RA1.68External (Trapezoidal)20.01C$67.14In stock
17E19S1684MB4-200RS1.68External (Trapezoidal)80.04C$26.91In stock
17E19S1684MB4-200RS-AR41.68External (Trapezoidal)80.04C$94.83In stock
17E19S1684MB4-300RS1.68External (Trapezoidal)80.04C$25.93In stock
17E19S1684MB4-300RS-OE1K1.68External (Trapezoidal)80.04C$67.96In stock
17LE13-0404E-200G0.4External (Trapezoidal)80.04C$14.82In stock
17LS13-0404E-200G-SALE0.4External (Trapezoidal)80.04C$40.09In stock
17LS19-1684E-200G-AR31.68External (Trapezoidal)80.04C$67.03In stock
23E20S0904MB2-150RS0.9External (Trapezoidal)80.04C$61.78In stock
23E22S2004AJ2-150RS-SALE2.0External (Trapezoidal)20.01C$47.50In stock
23E22S2004AJ2-200RS2.0External (Trapezoidal)20.01C$62.06In stock
23E22S2004AJ4-300RS2.0External (Trapezoidal)20.01C$67.96In stock
23E22S2004DJ2-200RS2.0External (Trapezoidal)40.02C$62.06In stock
23E22S2004DJ4-300RS2.0External (Trapezoidal)40.02C$67.96In stock
23E22S3004MB4-150RB3.0External (Trapezoidal)80.04C$44.33In stock
6E13S0304AC7-100RS0.3External (Trapezoidal)20.01C$183.28In stock
8E11S0244AC3-150RS-SALE0.24External (Trapezoidal)20.01C$82.81In stock
View all in category
Nema 23 External 56mm Stack 3.0A Lead 8mm(0.31496") Length 150mm
This model is economy linear stepper motor named Nema 23 external linear actuator, the motor part is... Read More
0 reviews • Write a review
from
C$61.78
5 + C$59.23
10 + C$56.88
50 + C$54.72
100 + C$52.71

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This model is economy linear stepper motor named Nema 23 external linear actuator, the motor part is 51mm 1.8 degree 0.9A Nema 23 stepper motor. It was integrated with 150mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

  • MPN: 23E20S0904MB2-150RS
  • Motor Type: External(Trapezoidal)
  • Step Angle: 1.8deg
  • Holding Torque: 0.7Nm(99.13oz.in)
  • Rated Current/phase: 0.9A
  • Phase Resistance: 7.0ohms
  • Inductance: 22.40mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 56.4 x 56.4mm
  • Body Length: 51mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ8mm(0.315")
  • Lead/Step: 0.04mm(0.0015748")
  • Lead/Revolution: 8mm(0.315")
  • Number of Leads: 4
  • Cable Length: 340mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 70
Holding Torque(oz.in) 99.13
Inductance(mH) 22.4
Phase Resistance(ohms) 7.0
Rated Current(A) 0.9
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 51
Cable Length(mm) 340
Frame Size(mm) Nema 23 (57 x 57)
Lead Screw Diameter(mm) 8
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 8
Lead Travel/Step(mm) 0.04
Linear Motor Type External (Trapezoidal)
No. of Lead 4
With Encoder No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
CN On Sale - Nema 17 External 48mm Stack 1.3A Lead 1.27mm(0.05") Length 250mm
CN On Sale - Nema 17 External 48mm Stack 1.3A Lead 1.27mm(0.05") Length 250mm
The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it has integrated with a 6.35mm(0.25") diameter 250mm(9.8425") length lead scre..
from Save -31%
C$80.84 C$117.16
Add to Cart
Add to Wish List Compare this Product
Quickview

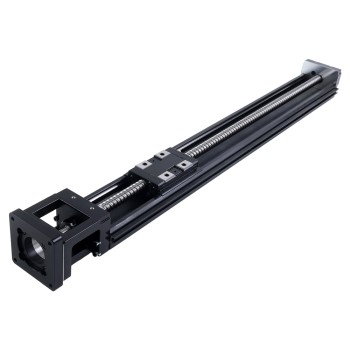

LK2A60 Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 410mm
