Nema 23 Stepper Motor 1.9Nm(269oz.in) with 9mm Shaft for NmRV30 Worm Gear Speed Reducer
0 reviews - Write a review
€25.53
5 + €24.21
10 + €23.01
50 + €21.93
100 + €20.94
  • In Stock: 10000
  • Model: 23HS30-2804S-RV
  • Gross Weight: 1.20kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 240

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

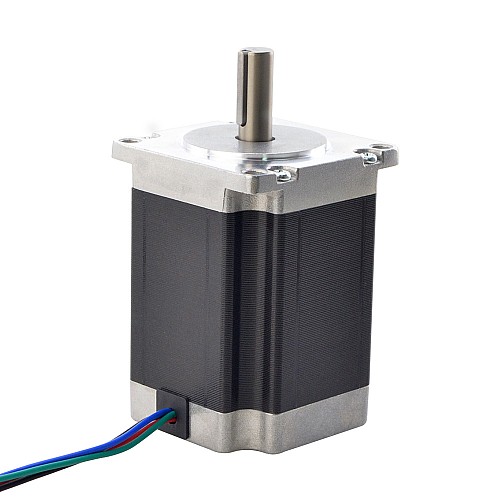

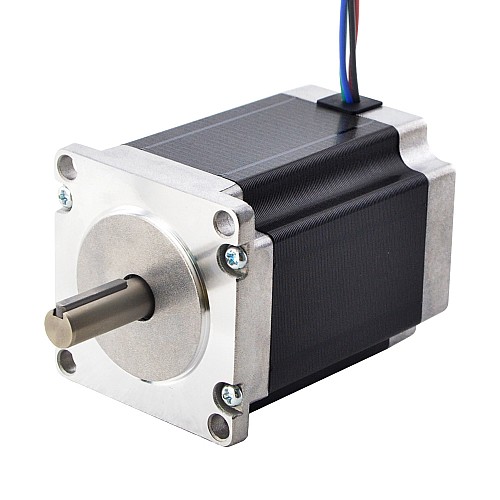

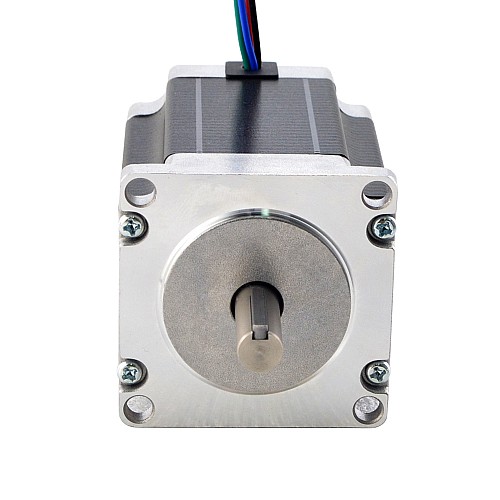

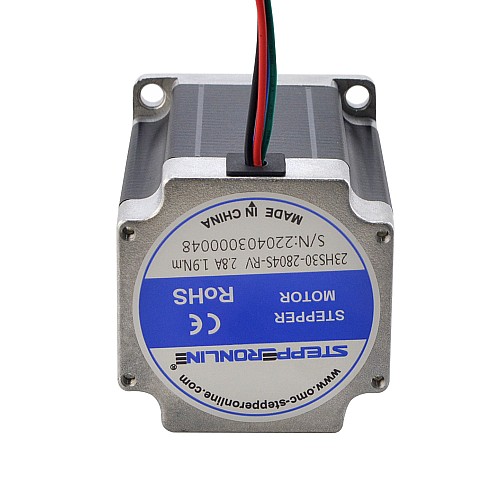

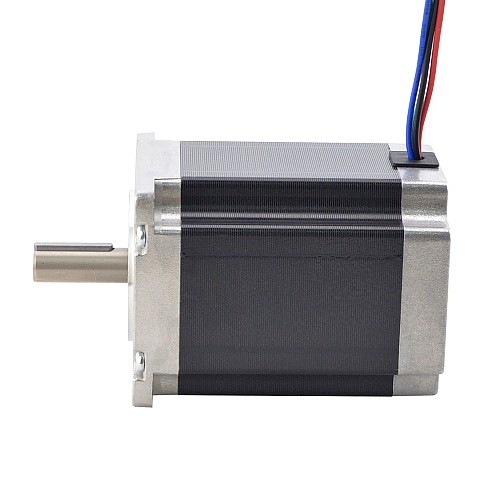

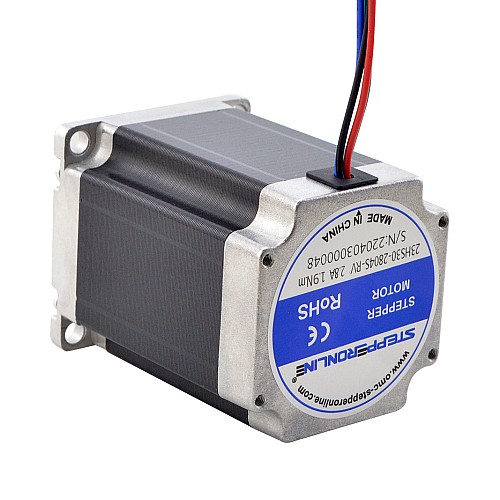

This motor has a torque of 1.9Nm(269oz.in) and its shaft is a 9mm keyway shaft, it can fit with NMRV30 Worm Gearbox directly.


Electrical Specification

  • Manufacturer Part Number: 23HS30-2804S-RV
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 1.9Nm(269oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 1.13ohms
  • Inductance: 4.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 76.5mm
  • Shaft Diameter: Φ9mm
  • Shaft Length: 25mm
  • Key-way Length: 20mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 190
Holding Torque(oz.in) 269
Inductance(mH) 4.8
Phase Resistance(ohms) 1.13
Rated Current(A) 2.8
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 76.5
Frame Size(mm) Nema 23 (57 x 57)
Inventory Method Dedicated Inventory
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type Keyway
Product Series S
Shaft Diameter(mm) 9
Shaft Length(mm) 25
Single Shaft/Dual Shaft Single Shaft



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
23HS30-2804S-RV_Torque_Curve.pdf 192.55KB Download
23HS30-2804S-RV.STEP 1.51MB Download
23HS30-2804S_Torque_curve.pdf 180.81KB Download
23HS30-2804S-RV_Full_Datasheet.pdf 213.28KB Download
