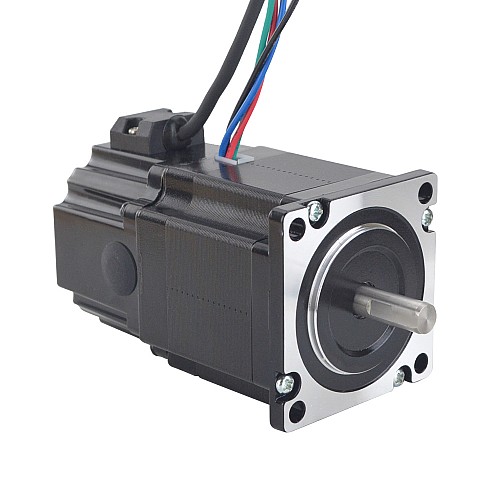

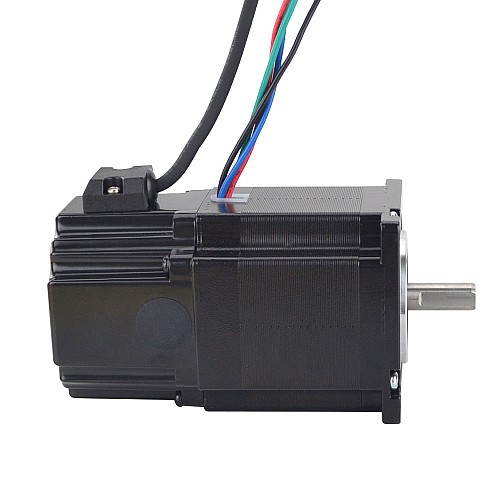

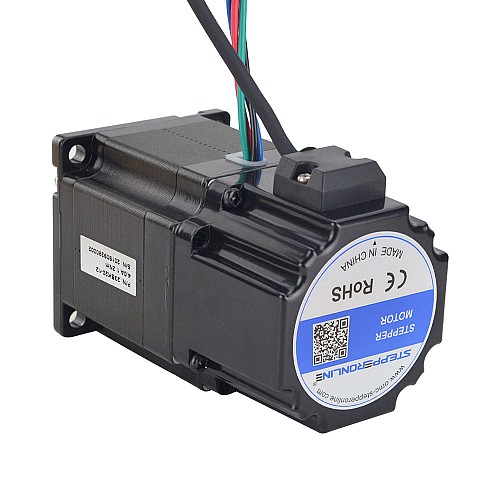

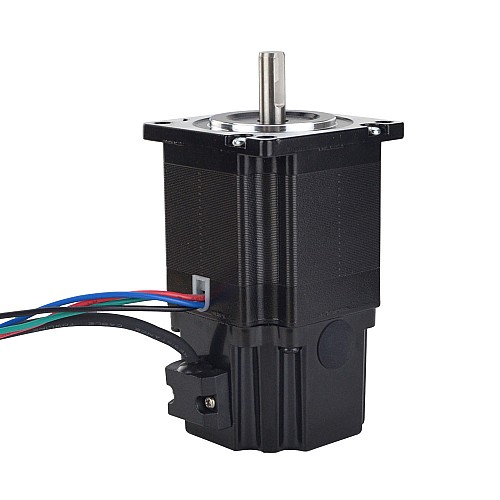

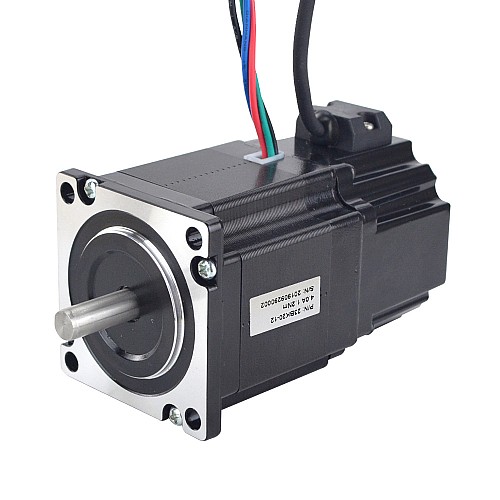

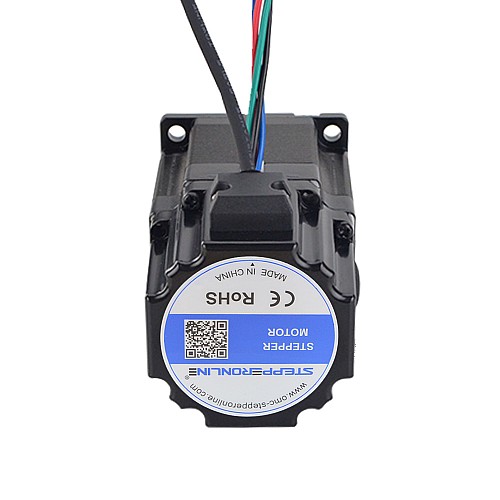

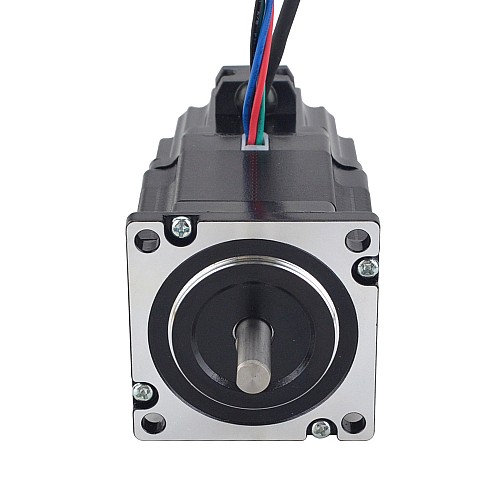

P Series Nema 23 Stepper Motor 1.2Nm(169.97oz.in) with Electromagnetic Brake

0 reviews - Write a review

€65.20

5 + €62.13

10 + €59.34

50 + €56.79

100 + €54.45

In Stock: 10000
Model: 23BK20-12
Gross Weight: 1.26kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 107

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 23BK20-12
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 1.2Nm(169.97oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.45ohms
Inductance: 1.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 55.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.72kg

Brake Connections

Red--24V+
Red--24V-
2.0Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	120
Holding Torque(oz.in)	169.97
Phase Resistance(ohms)	0.45
Rated Current(A)	4.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	4.5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Torque(oz.in)	283.22
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	8
Shaft Length(mm)	21
