Nema 23 Stepper Motor L=55mm Gear Ratio 5:1 High Precision Planetary Gearbox

Hot

Nema 23 Stepper Motor L=55mm Gear Ratio 5:1 High Precision Planetary Gearbox

0 reviews - Write a review

C$119.32

5 + C$113.43

10 + C$108.08

50 + C$103.23

100 + C$98.79

In Stock: 10000
Model: 23HS22-2804S-HG5
Gross Weight: 1.53kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

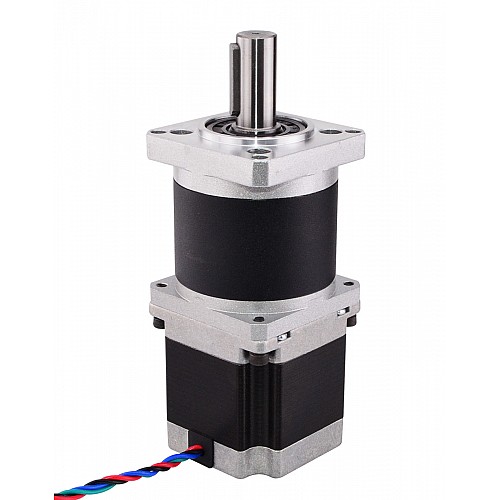

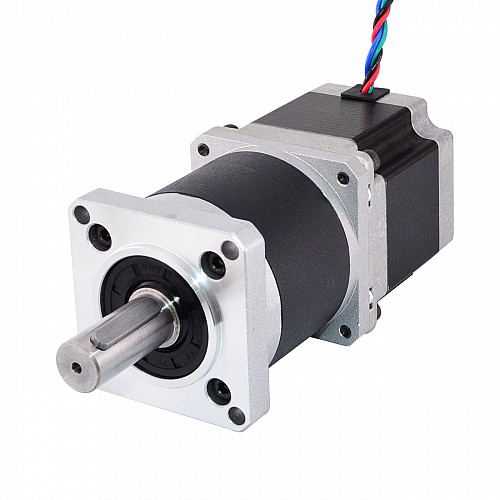

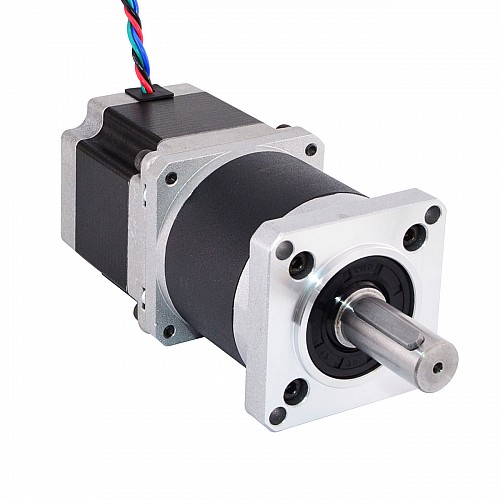

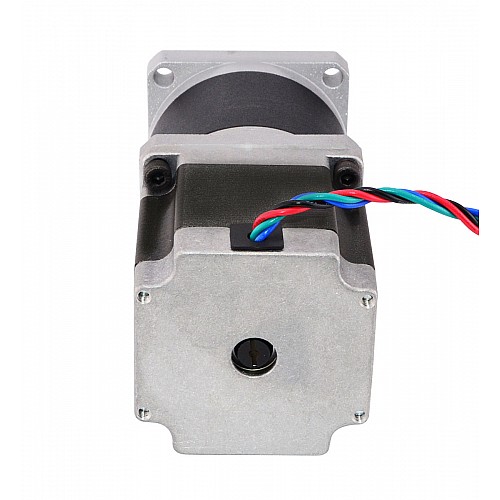

This Nema 23 stepper motor with 55mm body and 2.8A rated current, integrated with a 54mm Planetary gearbox of 5:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 23HS22-2804S-HG5
Motor Type: Bipolar Stepper
Step Angle: 0.36deg
Holding Torque without Gearbox: 103Ncm(146oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms
Inductance: 2.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 5 :1
Efficiency: 92%
Backlash at No-load: <=30arcmin
Max. Permissible Torque: 6Nm(849.7oz.in)
Moment Permissible Torque: 12Nm(1699oz.in)
Max. Radial Load: 250N
Ambient Temperature: -10 - 90℃
Noise: <=50dB
Life: 20000h

Physical Specifications

Frame Size: 57 x 57mm
Motor Length: 55mm
Gearbox Length: 54mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 320mm
Weight: 1500g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.03
Inductance(mH)	2.8
Phase Resistance(ohms)	0.9
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	109
Frame Size(mm)	Nema 23 (57 x 57)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	5
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	34
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1500

File	Size
23HS22-2804S-HG5.STEP	3.65MB	Download
23HS22-2804S-HG5_Torque_Curve.pdf	114.36KB	Download
23HS22-2804S-HG5 Full Datasheet	171.31KB	Download
23HS22-2804S_Torque_Curve.pdf	180.73KB	Download
