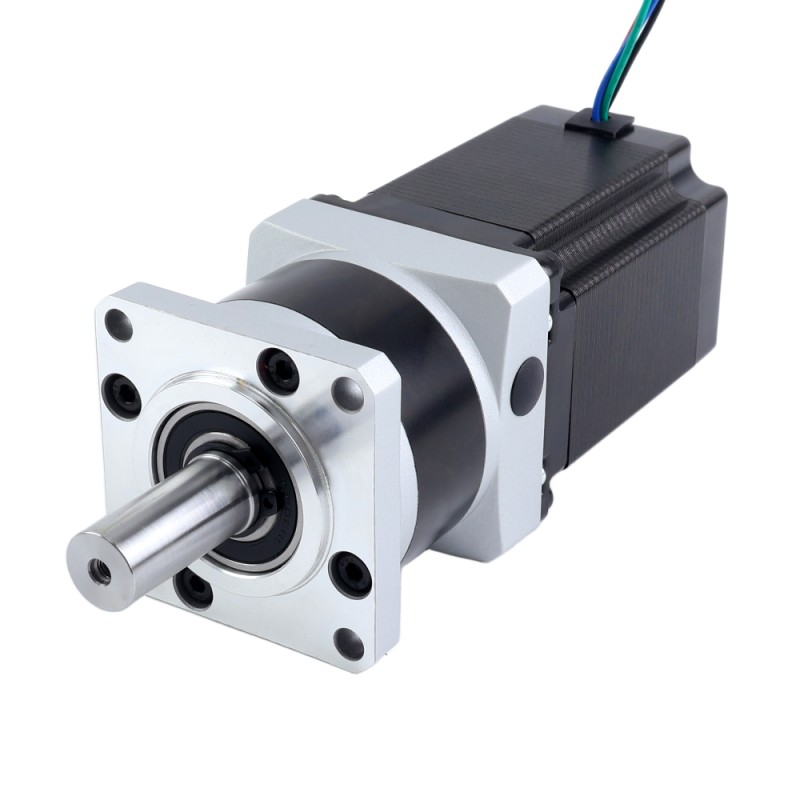

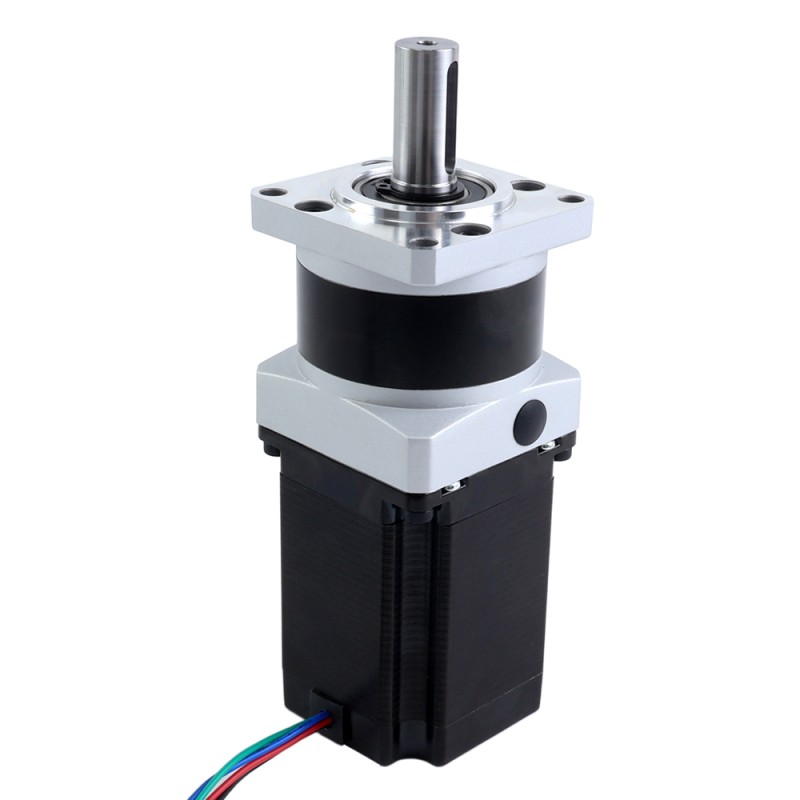

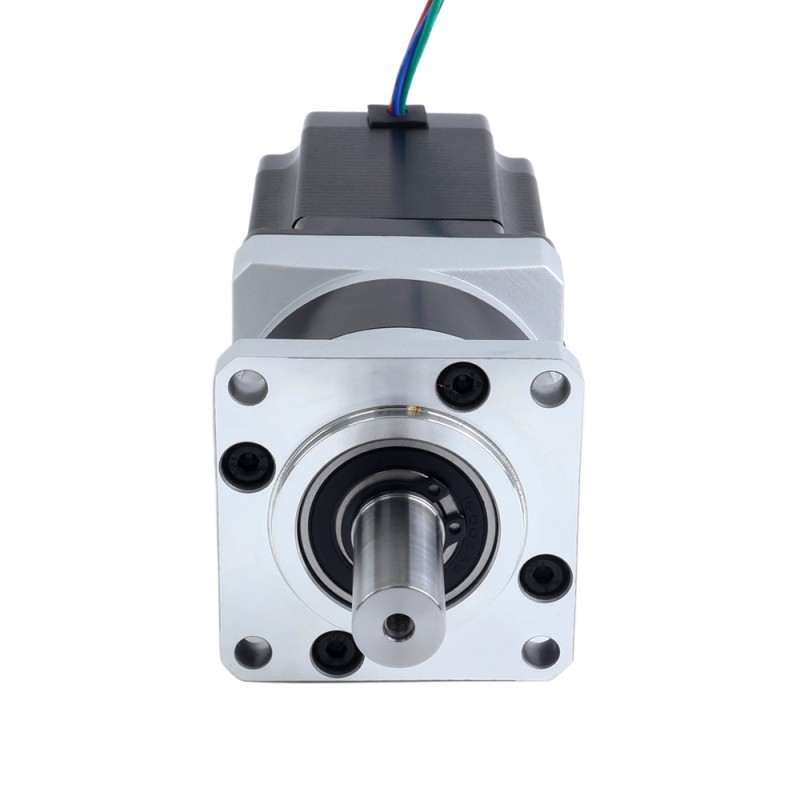

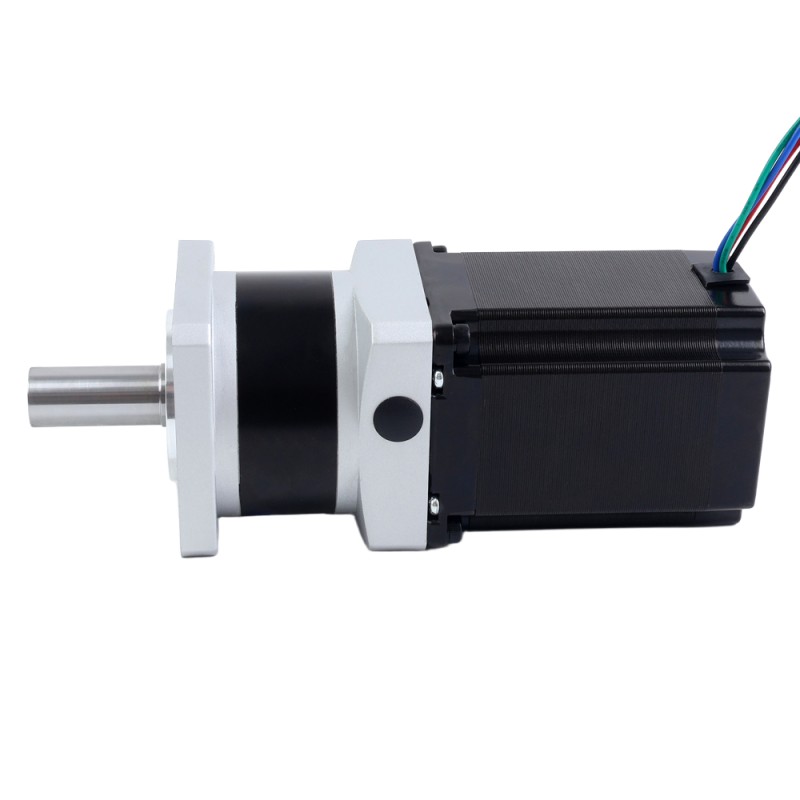

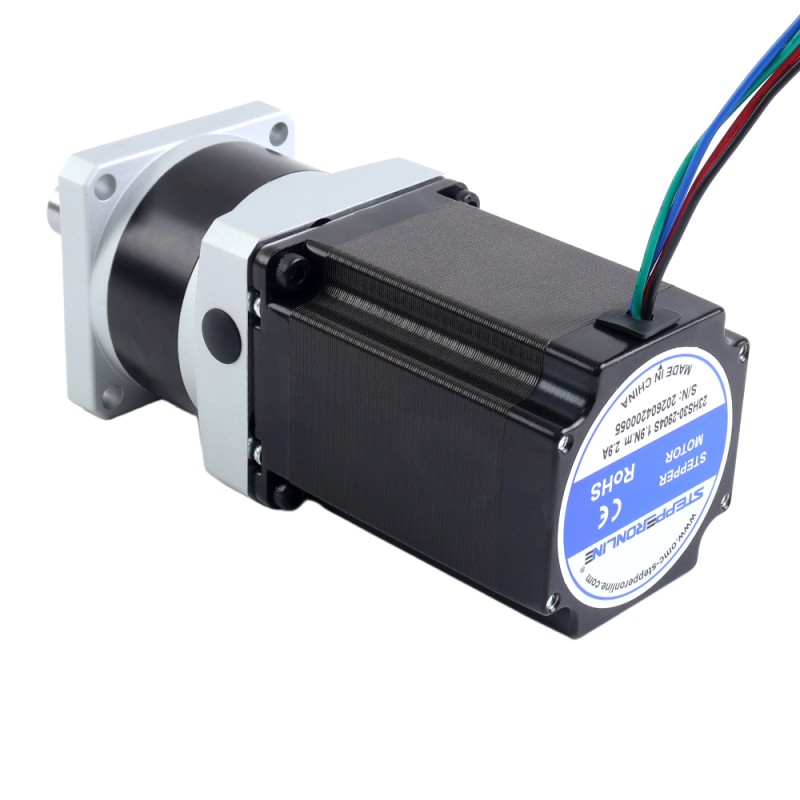

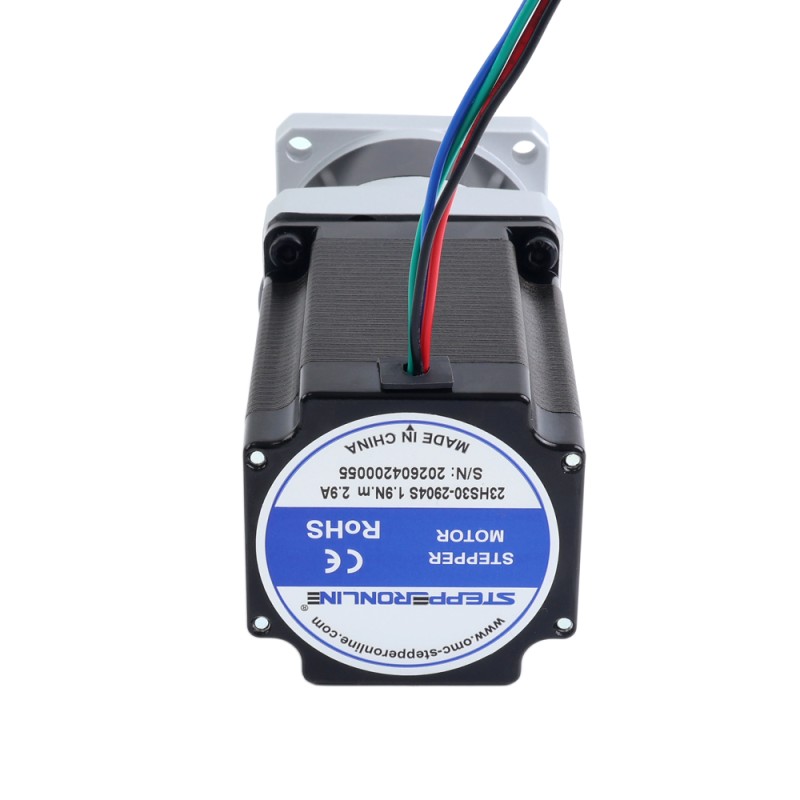

Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox

Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox - 23HS30-2904S-MG4 | StepperOnline CA
23HS30-2904S-MG4
Output Shaft TypeKeyway
Single Shaft/Dual ShaftSingle Shaft
Frame Size(mm)Nema 23 (57 x 57)
Product TypeGeared Stepper Motor
Question

Downloads

23HS30-2904S-MG4_Full_Datasheet.pdfPDF · 274.11KB
Same series
ModelOutput Shaft TypeSingle Shaft/Dual ShaftFrame Size(mm)Product TypePriceStock
23HS22-2804D-HG50-AR3KeywayDual ShaftNema 23 (57 x 57)Geared Stepper MotorC$153.63Backorder
23HS22-2804S-HG10KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$115.91In stock
23HS22-2804S-HG100KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$133.17In stock
23HS22-2804S-HG15KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$133.17In stock
23HS22-2804S-HG20KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$133.17In stock
23HS22-2804S-HG5KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$116.90In stock
23HS22-2804S-HG50KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$133.17In stock
23HS22-2904S-EGS50KeywaySingle ShaftNema 23 (60 x 60)Geared Stepper MotorC$131.70In stock
23HS22-2904S-MG10KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$51.90In stock
23HS22-2904S-MG20KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$62.19In stock
23HS22-2904S-MG5KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$51.90In stock
23HS22-2904S-MG50KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$62.19In stock
23HS30-2804S-HG10KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$120.89Backorder
23HS30-2904S-EGS50KeywaySingle ShaftNema 23 (60 x 60)Geared Stepper MotorC$139.58In stock
23HS30-2904S-MG10KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$58.07In stock
23HS30-2904S-MG20KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$68.37In stock
23HS30-2904S-MG4KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$58.07In stock
23HS30-2904S-MG5KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$58.07In stock
23HS30-2904S-MG50KeywaySingle ShaftNema 23 (57 x 57)Geared Stepper MotorC$68.37In stock
Nema 23 Stepper Motor L=76.5mm Gear Ratio 4:1 MG Series Planetary Gearbox
This Nema 23 stepper motor is equipped with MG series high precision gearbox. The gear ratio is 4:1 ... Read More
0 reviews • Write a review
from
C$58.07
5 + C$55.68
10 + C$53.48
50 + C$51.43
100 + C$49.55

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 23 stepper motor is equipped with MG series high precision gearbox. The gear ratio is 4:1 and the max. backlash is 30arcmin. It's an excellent choice for applications that require good accuracy but low cost.
As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

Electrical Specification

  • Part Number: 23HS30-2904S-MG4
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
  • Rated Current/phase: 2.9A
  • Phase Resistance: 1.13ohms
  • Inductance: 4.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Powder Metallurgy
  • Gear Ratio: 4:1
  • Efficiency: 90%
  • Backlash at No-load: <=30arcmin
  • Max.Permissible Torque: 25Nm(221.27lb-in)
  • Moment.Permissible Torque: 50Nm(442.54lb-in)
  • Noise: <=55dB
  • Waterproof Rating: IP54
  • Lifetime: 20000h

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 76.5mm
  • Gearbox Length: 55.5mm
  • Output Shaft Type: Key way
  • Output Shaft Diameter: Φ14mm
  • Output Shaft Length: 34mm
  • Cable Length: 500mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 2.9
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 1.89
Inductance(mH) 4.8
Phase Resistance(ohms) 1.13
Physical Specification
Backlash at No-load <=30 arcmin
Body Length(mm) 132
Frame Size(mm) Nema 23 (57 x 57)
Gear Material Powder Metallurgy
Gear Ratio(xx:1) 4
Gearbox Type Precision Planetary
IP Rating 40
No. of Lead 4
Output Shaft Type Keyway
Shaft Diameter(mm) 14
Single Shaft/Dual Shaft Single Shaft
