Nema 17 Bipolar 1.8deg 45Ncm(63.74oz.in) 1.68A 42x42x48mm 4 Wires

Hot

Nema 17 Bipolar 1.8deg 45Ncm(63.74oz.in) 1.68A 42x42x48mm 4 Wires

2 reviews - Write a review

€10.23

5 + €9.75

10 + €9.31

50 + €8.91

100 + €8.54

In Stock: 10000
Model: 17HS19-1684S1
Gross Weight: 0.41kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 3615

Click country for real-time stock

Ships from

China

Amazon US

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What Does Amazon German and Amazon US Mean?

Amazon German and Amazon US shipping options mean that this product is fulfilled by Amazon for reliable delivery. This is also usually called FBA.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

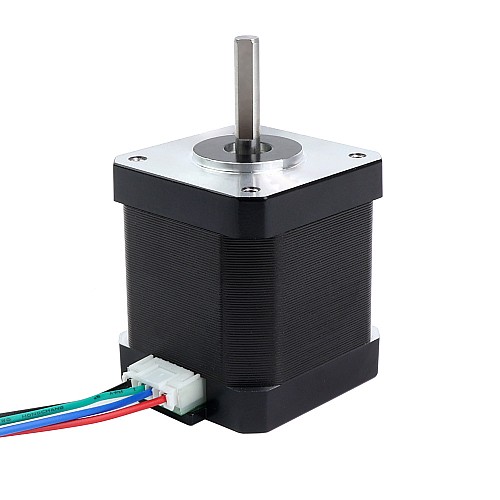

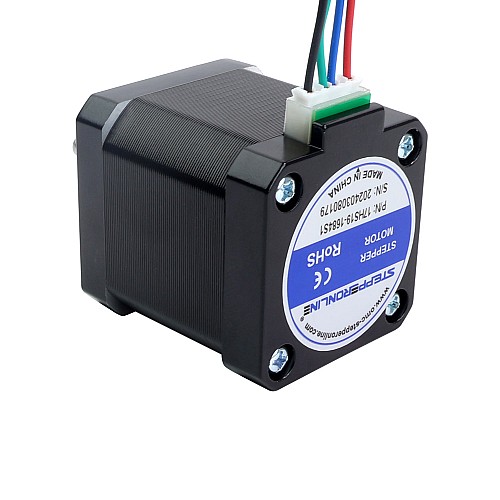

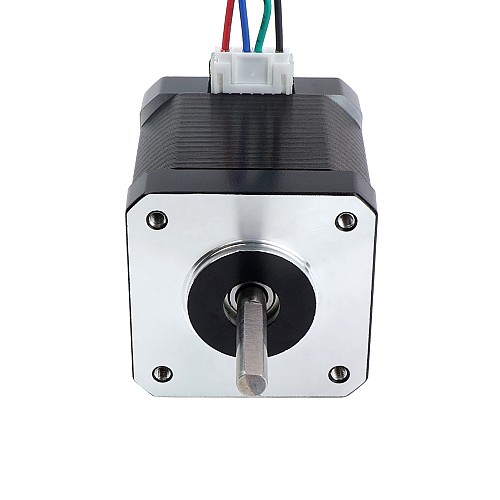

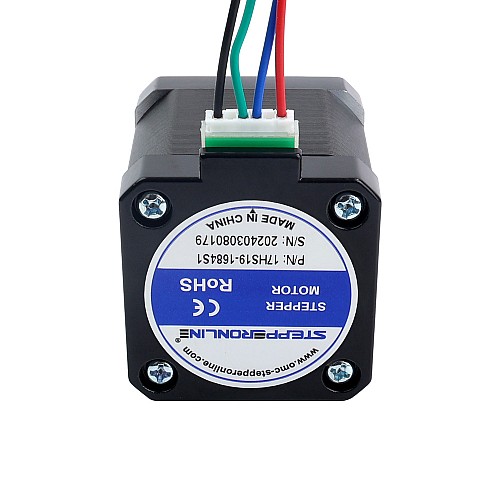

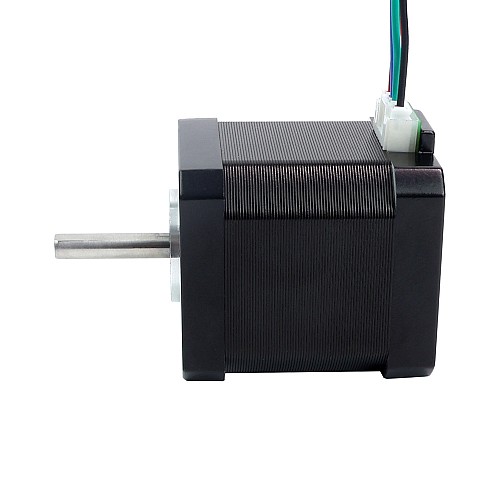

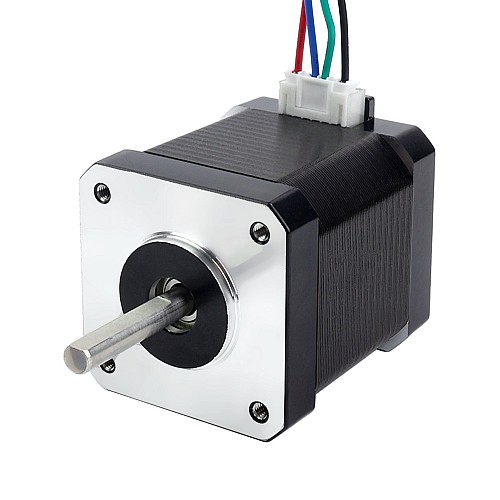

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 4 wires with 1m cable and 2.54mm pitch connector, each phase draws 1.68A, with holding torque 45Ncm(63.74oz.in). It's very good choice for 3D printer.

Electrical Specification

Manufacturer Part Number: 17HS19-1684S1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 45Ncm(63.74oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 2.0ohms
Inductance: 2.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Front Shaft Length: 24mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 400g

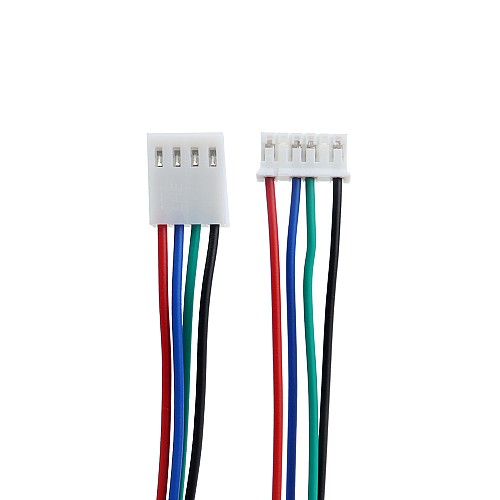

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	45
Holding Torque(oz.in)	63.74
Inductance(mH)	2.5
Phase Resistance(ohms)	2.0
Rated Current(A)	1.68
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	400
