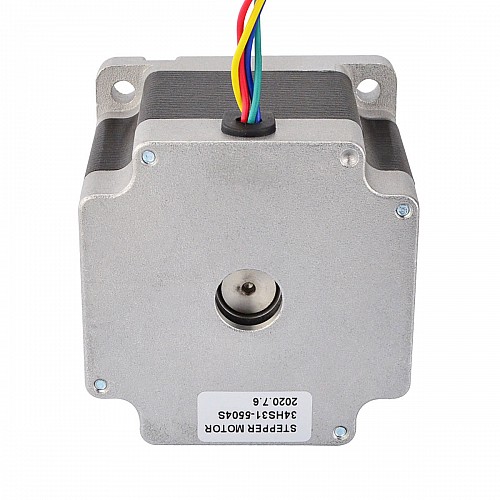

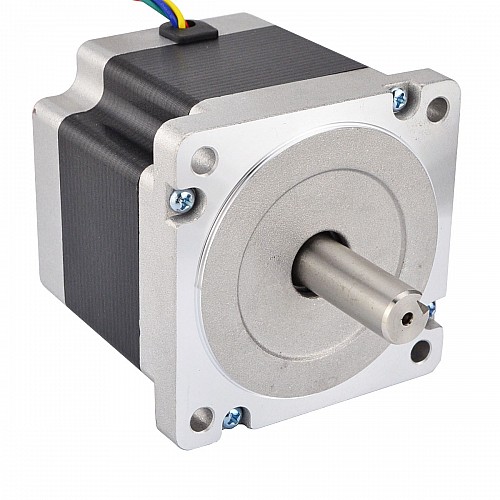

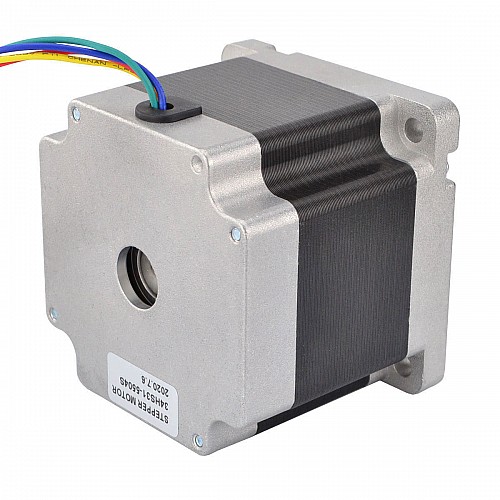

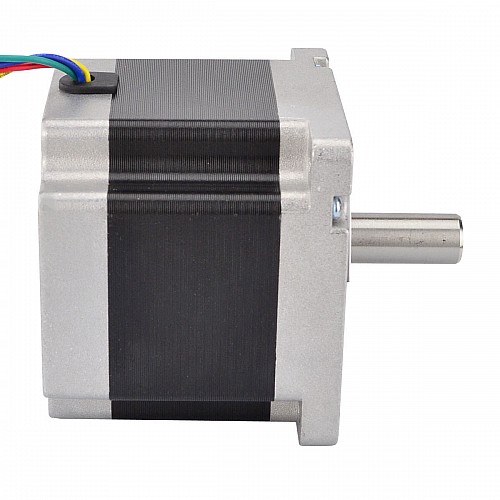

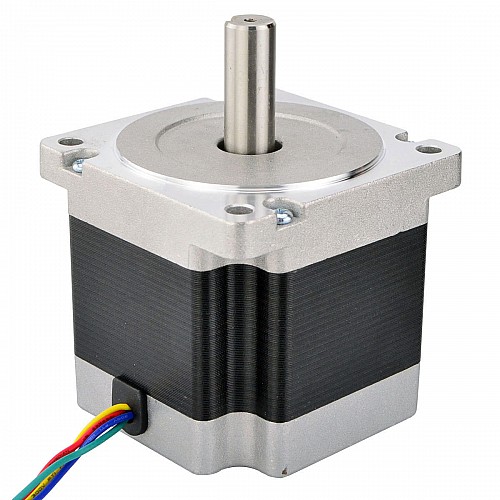

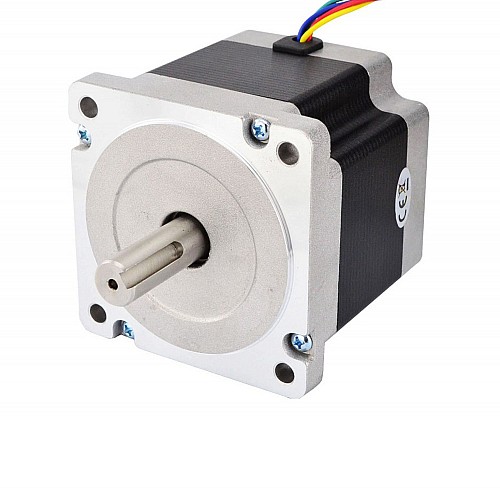

Nema 34 CNC Stepper Motor 4.5Nm(637.25oz.in) 5.5A 86x86x80mm Key Way Shaft

1 reviews - Write a review

€0.00

In Stock: 1
Model: 34HS31-5504S
Gross Weight: 2.52kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 473

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 34 cnc stepper motor with size 86x86x80mm. It has 4 wires, each phase draws 5.5A, with holding torque 4.5Nm(637.25oz.in).

Electrical Specification

Manufacturer Part Number: 34HS31-5504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.4ohms
Inductance: 3.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 80mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key Way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2.3kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	450
Holding Torque(oz.in)	637.25
Inductance(mH)	3.5
Phase Resistance(ohms)	0.4
Rated Current(A)	5.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	80
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	35
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	2300
