Nema 34 Non-captive 79mm Stack 3.12A Lead 6.35mm(0.25") Length 150mm

0 reviews - Write a review

C$242.32

5 + C$235.76

10 + C$229.56

50 + C$223.67

100 + C$218.09

In Stock: Pre-order
Model: 34N31S3124RK3-150RS
Gross Weight: 2.50kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

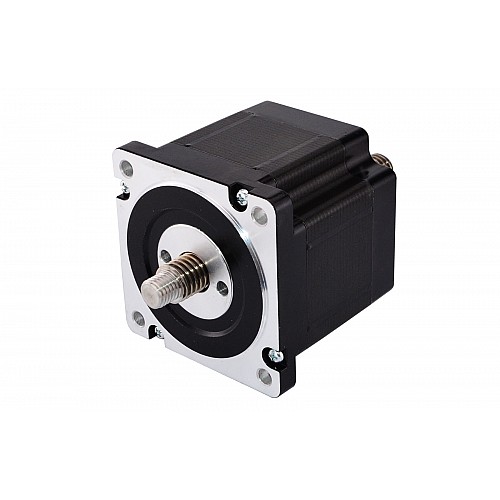

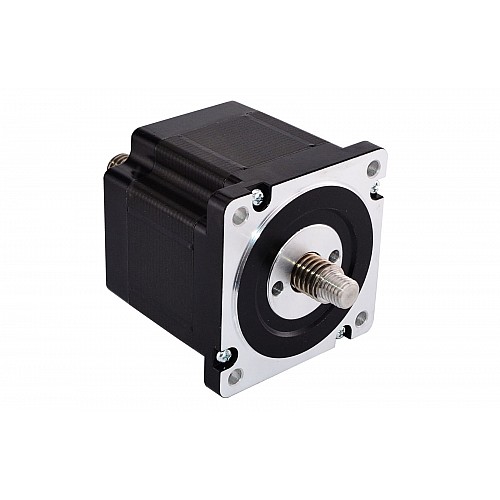

The motor part is 79mm body 1.8 degree 3.12A Nema 34 stepper motor, and it works with a 15.88mm(0.625") diameter 150mm(5.9055") length lead screw, the linear travel is 6.35mm(0.25") per revolution. This model is almost exactly same as Haydon Kerk 86000 series size 34 non-captive stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 34N31S3124RK3-150RS(34N31S3124RK-150RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 800N(300pps)
Rated Current/phase: 3.12A
Phase Resistance: 1.6ohms
Voltage: 5V
Inductance: 8.8mH±20%(1KHz)

Physical Specification

Frame Size: 86 x 86mm
Body Length: 79mm

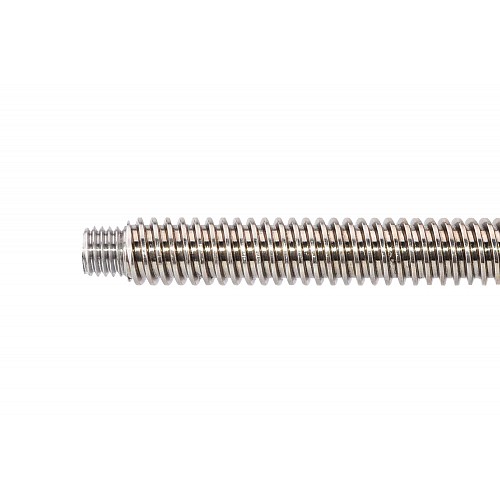

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ15.88mm(0.625")
Lead/Step: 0.03175mm(0.00125")
Lead Travel/Revolution: 6.35mm(0.25")
Number of Leads: 4
Cable Length: 300mm
Weight : 2300g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	8.8
Minimal Thrust(N) @300pps	800
Phase Resistance(ohms)	1.6
Rated Current(A)	3.12
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	79
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	15.88
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	6.35
Lead Travel/Step(mm)	0.03175
Linear Motor Type	Non-Captive
No. of Lead	4

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
