Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4") with Sensor

Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4) with Sensor - LMD8S15ND05-090 | StepperOnline CA
LMD8S15ND05-090
Holding Torque(Ncm)2
Rated Current(A)0.5
Holding Torque(oz.in)2.832
Phase Resistance(ohms)12.5
Question

Downloads

LMD8S15ND05-090.stpSTP · 9.42MBLog in to downloadLMD8S15ND05-090 Full DatasheetPDF · 10.71MB
Same series
ModelHolding Torque(Ncm)Rated Current(A)Holding Torque(oz.in)Phase Resistance(ohms)PriceStock
LMD11S12GD10-10051.07.082.1C$240.56In stock
LMD11S12HD10-10051.07.082.1C$240.56In stock
LMD11S18ND10-100101.014.163.7C$240.56In stock
LMD14S13GF15-120141.519.830.95C$237.48In stock
LMD14S13RF15-120141.519.830.95C$237.48In stock
LMD14S18WF15-120201.528.321.5C$237.48In stock
LMD17S13GF15-120251.535.401.7C$237.48In stock
LMD17S13GF15-200251.535.401.7C$249.75In stock
LMD17S13RF15-120251.535.401.7C$237.48In stock
LMD17S13RF15-200251.535.401.7C$249.75In stock
LMD17S13WF15-120251.535.401.7C$237.48In stock
LMD17S19WF25-200502.570.810.78C$249.75In stock
LMD8S11GD05-09010.51.4165.0C$231.36In stock
LMD8S11HD05-09010.51.4165.0C$231.36In stock
LMD8S11HD05-090-SALE10.51.4165.0C$218.95In stock
LMD8S15ND05-09020.52.83212.5C$231.36In stock

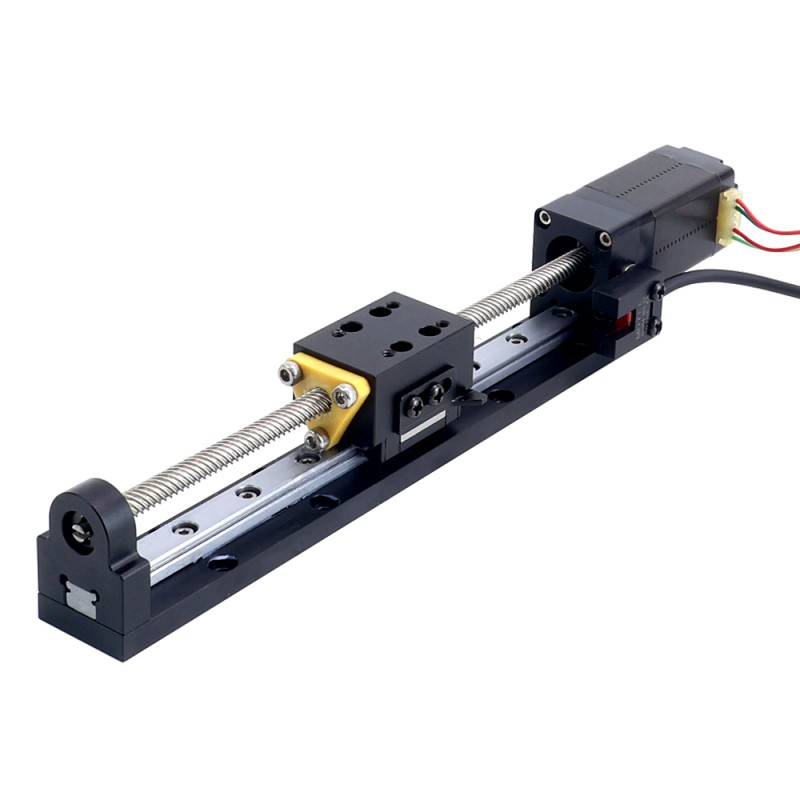

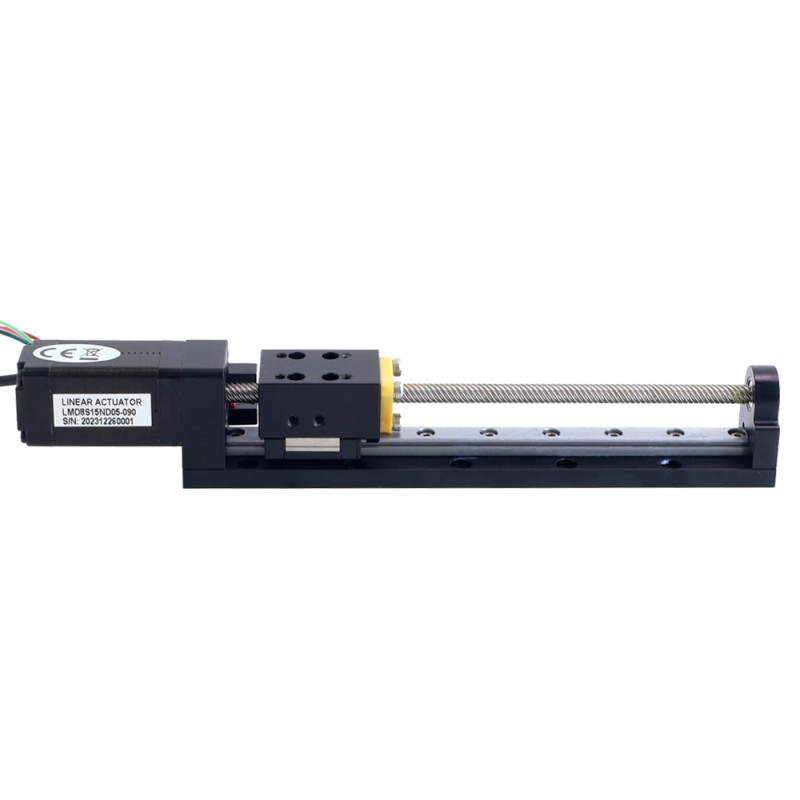

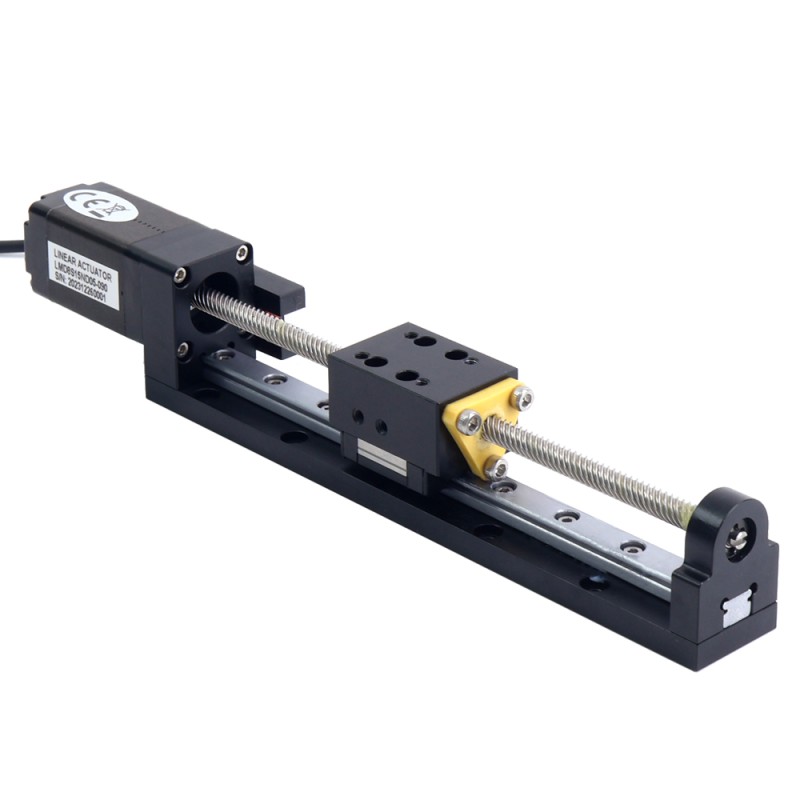

Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4") with Sensor
This is an LMD series Nema 8 stepper motor linear actuator with a lead of 10.16mm(0.4"). This type o... Read More
0 reviews • Write a review
from
C$231.36
5 + C$220.76
10 + C$211.09
50 + C$202.23
100 + C$196.74

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

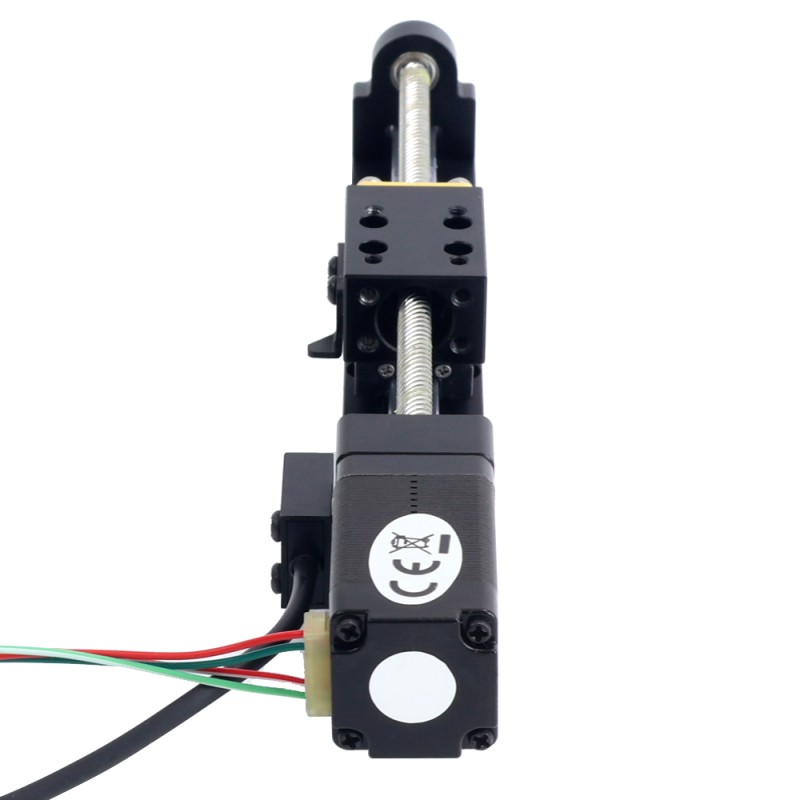

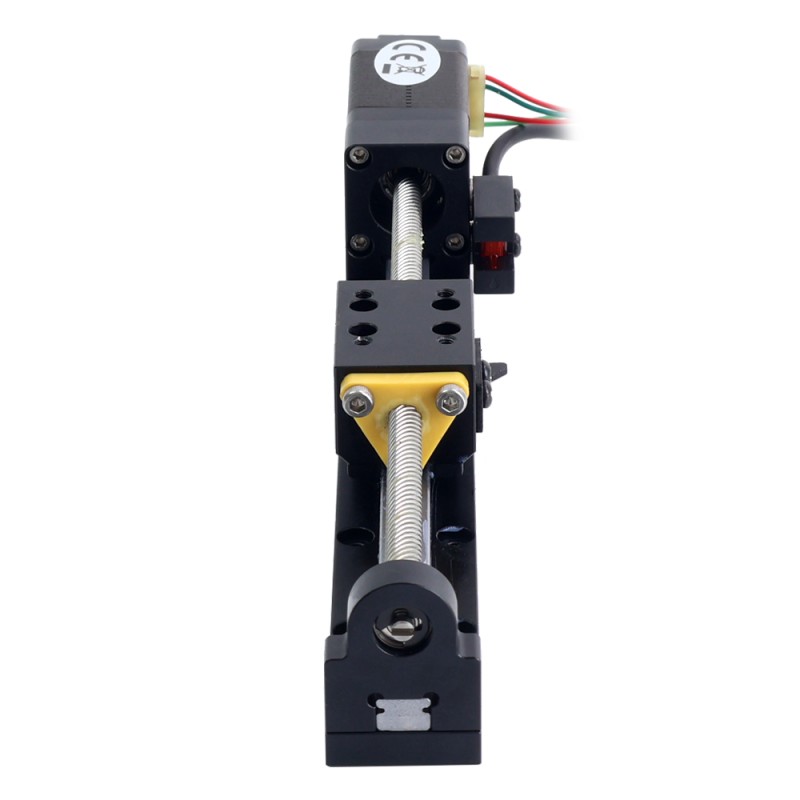

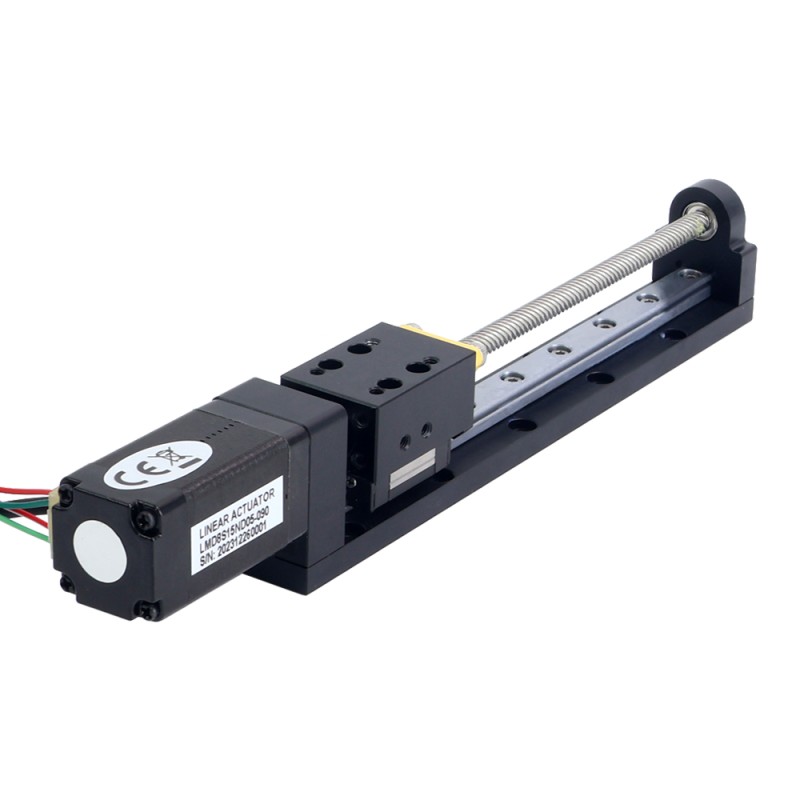

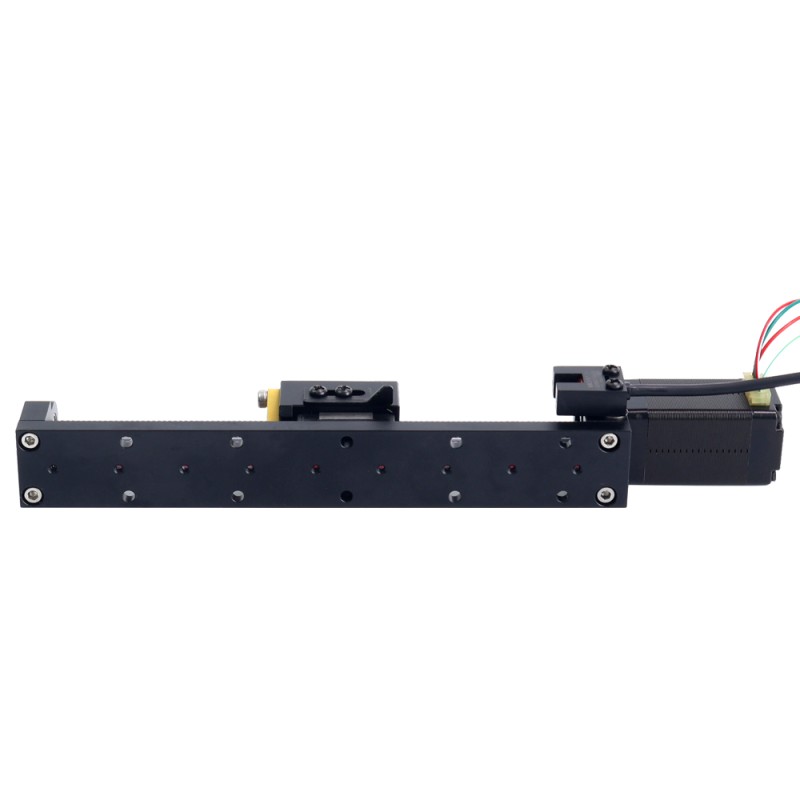

This is an LMD series Nema 8 stepper motor linear actuator with a lead of 10.16mm(0.4"). This type of actuator is composed of a highly integrated linear stepper motor and a guide rail slide. It has the advantages of simple structure and small installation space. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures. In addition, the actuator is equipped with a photoelectric sensor for detecting the zero point position. This actuator is widely used in the medical industry, measurement, laser welding, laser cutting, small CNC machine tools, engraving, milling machines, etc.

Electrical Specification

  • Manufacturer Part Number: LMD8S15ND05-090
  • Screw Type: Trapezoidal Lead Screw
  • Step Angle: 1.8deg
  • Holding Torque: 0.02Nm(2.832oz.in)
  • Rated Load Capacity: 60N
  • Rated Current/phase: 0.5A
  • Phase Resistance: 12.5ohms ± 10%
  • Inductance: 4.5mH ± 20%(1KHz)
  • Sensor Type: NPN

Physical Specification

  • Motor Size: 20 x 20 x 38.2mm
  • Lead Screw Length: 124mm
  • Lead Screw Diameter: 4.76mm
  • Max. Stroke Length: 90mm(3.54")
  • Max. Speed: 152.4mm/s
  • Position Accuracy: ± 0.02mm
  • Lead/Step: 0.0508mm(0.002")
  • Lead/Revolution: 10.16mm(0.4")
  • Number of Leads: 4
  • Cable Length: 320mm
  • Weight: 0.22kg

Motor Connection

Pin No.
1
2
3
4
Bipolar
A+
A-
B+
B-
Wires
Red
Red/White
Green
Green/White

Photoelectric Switch Sequence

Pin No.
1
2
3
4
Bipolar
+5~24V
GND
Signal Line
N/A
Wires
Brown
Blue
Black
White
Electrical Specification
Holding Torque(Ncm)2
Holding Torque(oz.in)2.832
Inductance(mH)4.5
Phase Resistance(ohms)12.5
Rated Current(A)0.5
Rated Load Capacity(N)60
Step Angle(deg.)1.8
Physical Specification
Frame Size(mm)Nema 08 (20 x 20)
Lead Screw Diameter(mm)4.76
Lead Screw Length(mm)124
Lead Travel/Revolution(mm)10.16
Lead Travel/Step(mm)0.0508
Linear Motor TypeLead Screw
Stroke Length(mm/ft)90/0.30
