Nema 8 Stepper Lead Screw Linear Actuator 0.5A Stroke 90mm 0.02Nm(2.832oz.in) Lead 10.16mm(0.4") with Sensor

0 reviews - Write a review

C$236.15

5 + C$225.33

10 + C$215.46

50 + C$206.42

100 + C$200.81

In Stock: 10000
Model: LMD8S15ND05-090
Gross Weight: 0.35kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

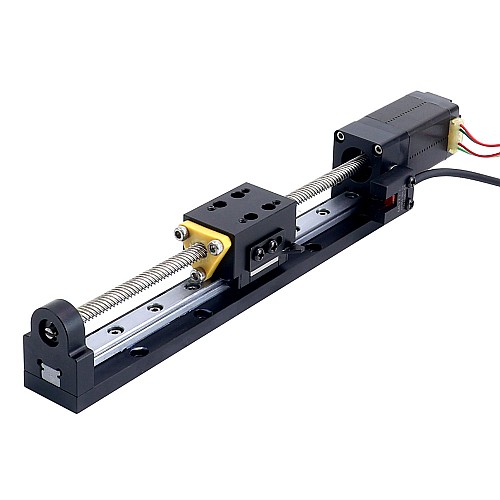

This is an LMD series Nema 8 stepper motor linear actuator with a lead of 10.16mm(0.4"). This type of actuator is composed of a highly integrated linear stepper motor and a guide rail slide. It has the advantages of simple structure and small installation space. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures. In addition, the actuator is equipped with a photoelectric sensor for detecting the zero point position. This actuator is widely used in the medical industry, measurement, laser welding, laser cutting, small CNC machine tools, engraving, milling machines, etc.

Electrical Specification

Manufacturer Part Number: LMD8S15ND05-090
Screw Type: Trapezoidal Lead Screw
Step Angle: 1.8deg
Holding Torque: 0.02Nm(2.832oz.in)
Rated Load Capacity: 60N
Rated Current/phase: 0.5A
Phase Resistance: 12.5ohms ± 10%
Inductance: 4.5mH ± 20%(1KHz)

Physical Specification

Motor Size: 20 x 20 x 38.2mm
Lead Screw Length: 124mm
Lead Screw Diameter: 4.76mm
Max. Stroke Length: 90mm(3.54")
Max. Speed: 152.4mm/s
Position Accuracy: ± 0.02mm
Lead/Step: 0.0508mm(0.002")
Lead/Revolution: 10.16mm(0.4")
Number of Leads: 4
Cable Length: 320mm
Weight: 0.22kg

Motor Connection

Pin No.	1	2	3	4
Bipolar	A+	A-	B+	B-
Wires	Red	Red/White	Green	Green/White

Photoelectric Switch Sequence

Pin No.	1	2	3	4
Bipolar	+5~24V	GND	Single Line	N/A
Wires	Brown	Blue	Black	White

Electrical Specification
Holding Torque(Ncm)	2
Holding Torque(oz.in)	2.832
Inductance(mH)	4.5
Phase Resistance(ohms)	12.5
Rated Current(A)	0.5
Step Angle(deg.)	1.8
Physical Specification
Frame Size(mm)	Nema 08 (20 x 20)
Inventory Method	Dedicated Inventory
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	124
Lead Travel/Revolution(mm)	10.16
Lead Travel/Step(mm)	0.0508
Linear Motor Type	Lead Screw
Stroke Length(mm/ft)	90/0.30
