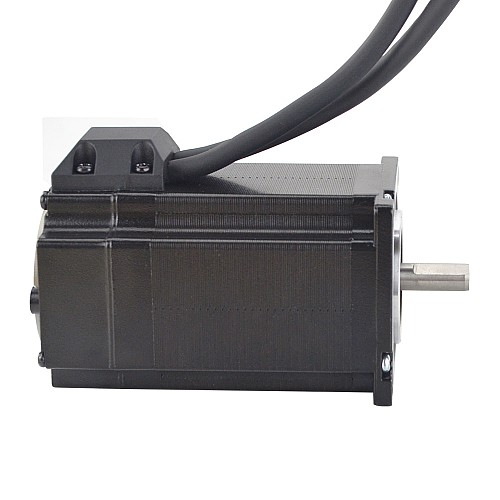

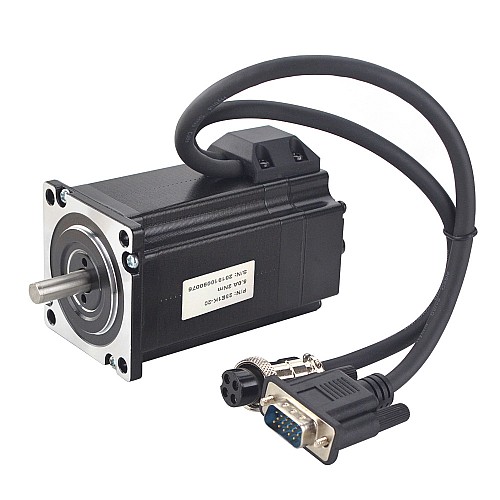

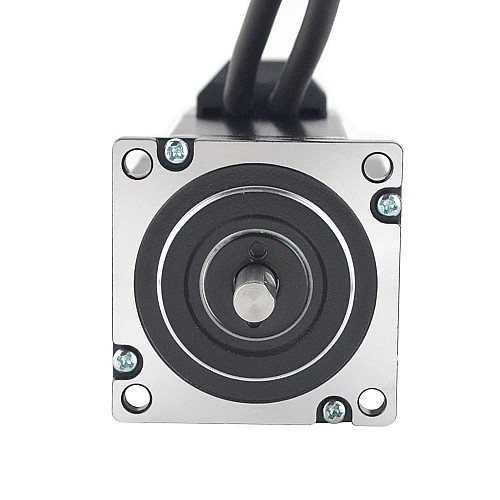

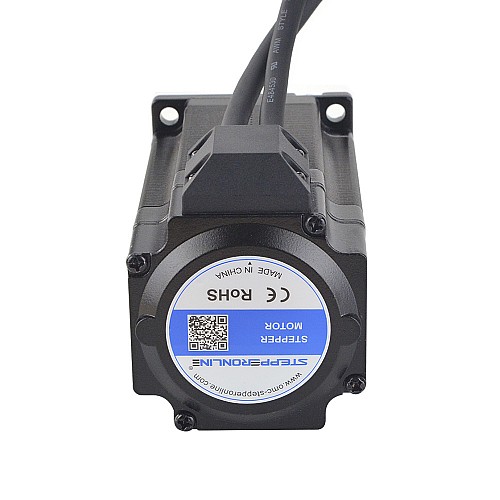

P Series Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)

Hot

P Series Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$57.38

5 + C$55.01

10 + C$52.84

50 + C$50.82

100 + C$48.96

In Stock: 10000
Model: 23E1K-20
Gross Weight: 1.32kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 894

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 23E1K-20
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 2Nm(283.22oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.4ohms
Inductance: 1.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 98.3mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 270mm
Weight: 1.06kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Output Signal Channels: 2 channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	200
Holding Torque(oz.in)	283.22
Inductance(mH)	1.8
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	0.4
Rated Current(A)	5.0
Physical Specification
Body Length(mm)	98.3
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Product Series	P
Shaft Diameter(mm)	8
Shaft Length(mm)	21
