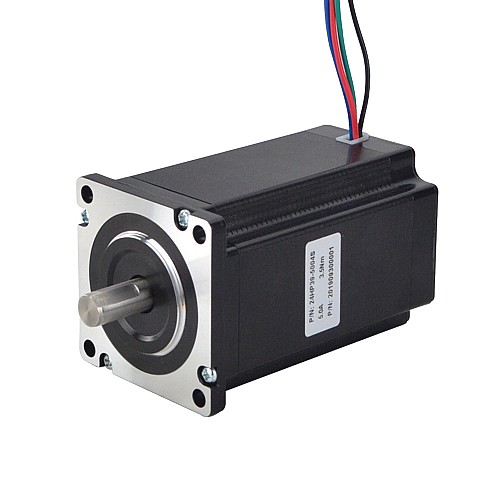

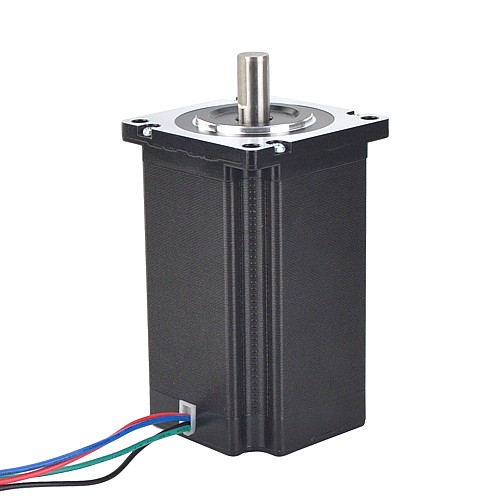

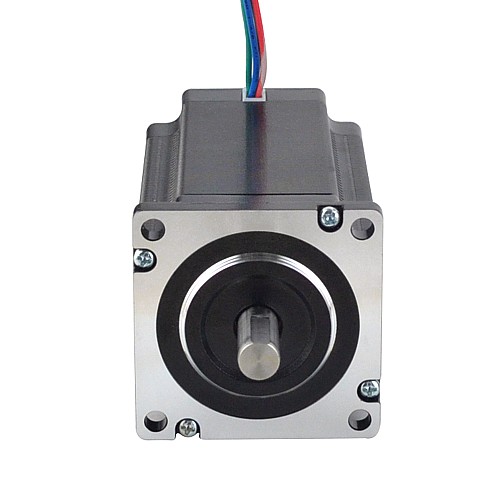

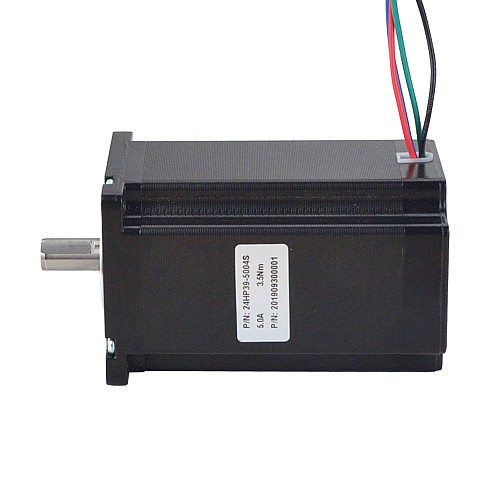

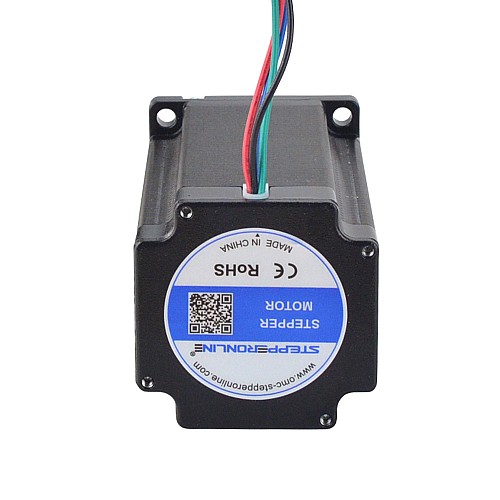

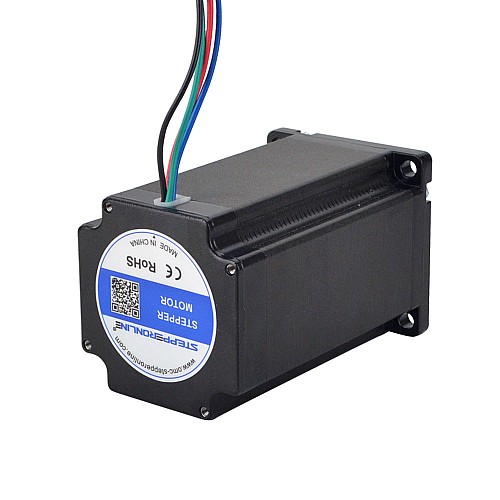

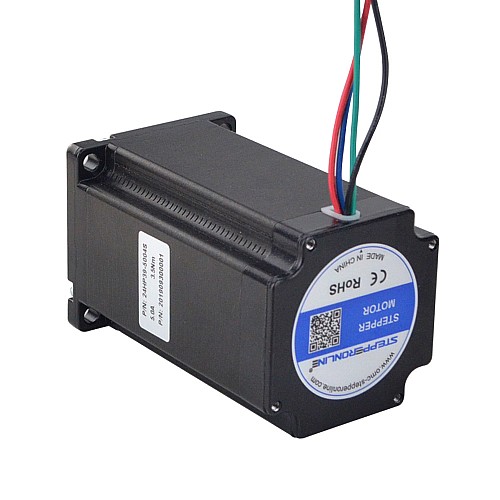

P Series Nema 24 Bipolar 1.8deg 3.5Nm(495.74oz.in) 5.0A 60x60x97.8mm 4 Wires

3 reviews - Write a review

C$62.13

5 + C$58.90

10 + C$55.99

50 + C$53.35

100 + C$50.96

In Stock: 10000
Model: 24HP39-5004S
Gross Weight: 1.70kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 515

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 24HP39-5004S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 3.5Nm(495.74oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.48 ohms± 10%
Inductance: 1.85mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 97.8mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The applicable bracket for this motor is ST-M13.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	350
Holding Torque(oz.in)	495.74
Inductance(mH)	1.85
Phase Resistance(ohms)	0.48
Rated Current(A)	5.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	97.8
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	P
Shaft Diameter(mm)	10
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1600
