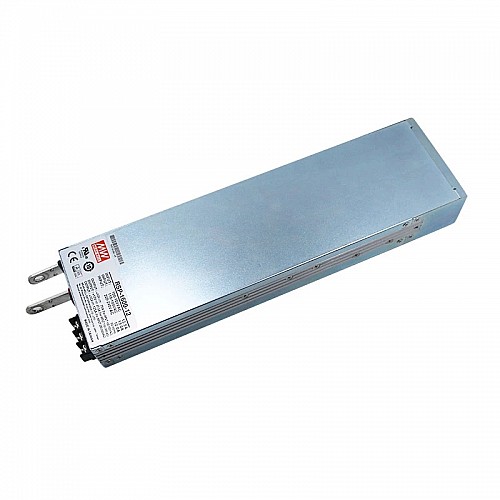

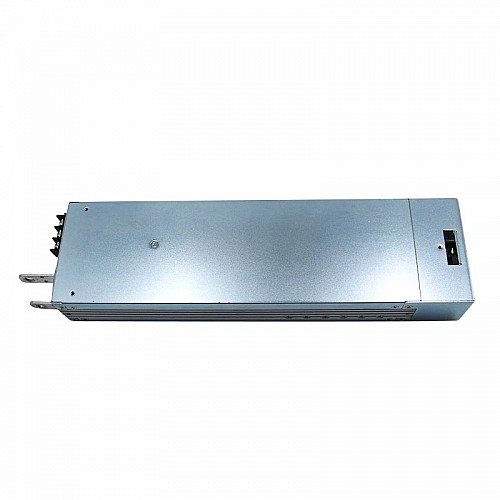

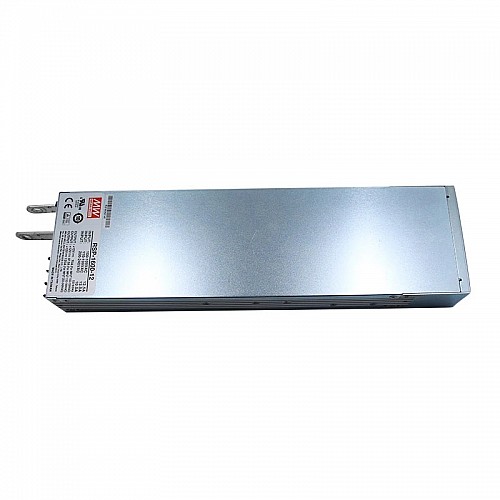

RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output

RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output - RSP-1600-12 | StepperOnline CA
RSP-1600-12 MEANWELL 1500W 12VDC 125A 115/230VAC Power Supply With Single Output
0 reviews - Write a review
C$832.20
5 + C$807.90
10 + C$784.98
50 + C$763.32
100 + C$742.84
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: RSP-1600-12
  • Gross Weight: 2.10kg
  • Certificated: ISO, CE, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

  • Brand MEANWELL
  • 12V DC 125A output
  • AC input voltage range: 90 ~ 264VAC
  • Rated power: 1500W
  • Universal AC input / Full range(Withstand 300VAC surege input for 5 seconds)
  • Built-in active PFC function
  • High efficiency up to 93%
  • Forced air cooling by built-in DC Fan
  • Output voltage and constant current level programmable
  • Active current sharing up to 4000W(3+1)
  • Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional PMBus or CANBus protocol
  • 5 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Aging facility
  • Digital broadcasting
  • Constant current source
  • Redundant system
Electrical Specification
Efficiency(%) 89%
Max. Output Current(A) 125
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 300 x 85 x 41
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 90 - 264 / 127 - 370
Output Voltage(VDC) 12
PFC Function Yes
Power Type Switching Power Supply
Power(W) 1500
Physical Specification
Inventory Method Shared Inventory
File Size
RSP-1600.pdf 818.29KB Download
