Name: RSP-1600-24 | RSP-1600-24 MEANWELL 1608W 24VDC 67A 115/230VAC Power Supply With Single Output | StepperOnline CA
Brand: MEANWELL
SKU: RSP-1600-24
Price: 832.2 CAD
Availability: PreOrder

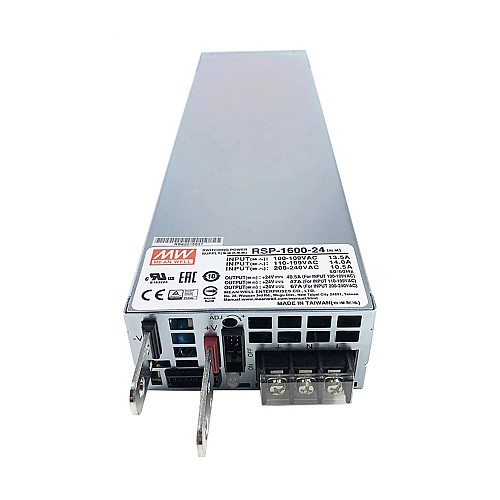

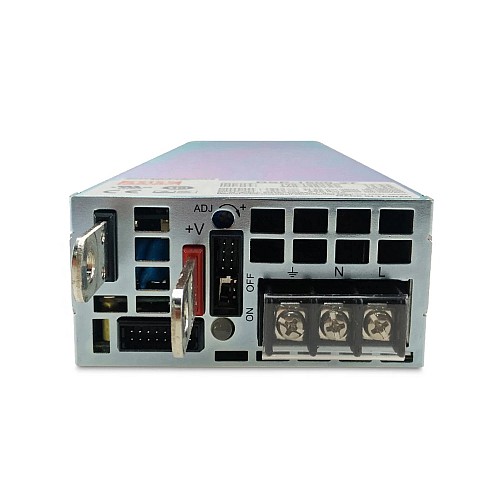

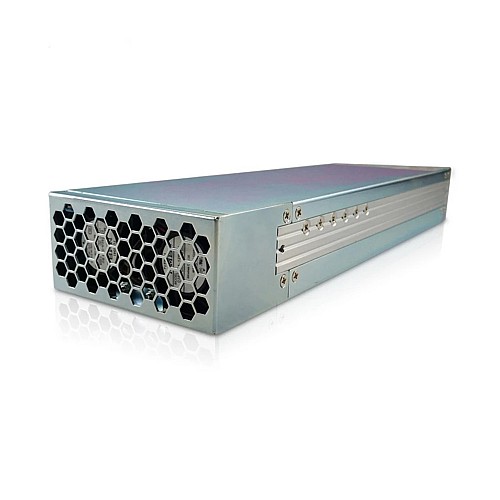

RSP-1600-24 MEANWELL 1608W 24VDC 67A 115/230VAC Power Supply With Single Output

0 reviews - Write a review

C$832.20

5 + C$807.90

10 + C$784.98

50 + C$763.32

100 + C$742.84

In Stock: Pre-order
Brand: MEANWELL
Model: RSP-1600-24
Gross Weight: 2.10kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
24V DC 67A output
AC input voltage range: 90 ~ 264VAC
Rated power: 1608W
Universal AC input / Full range(Withstand 300VAC surege input for 5 seconds)
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC Fan
Output voltage and constant current level programmable
Active current sharing up to 4000W(3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional PMBus or CANBus protocol
5 years warranty

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Aging facility
Digital broadcasting
Constant current source
Redundant system

Electrical Specification
Efficiency(%)	91.5%
Max. Output Current(A)	67
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	300 x 85 x 41
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	90 - 264 / 127 - 370
Output Voltage(VDC)	24
PFC Function	Yes
Power Type	Switching Power Supply
Power(W)	1608
Physical Specification
Inventory Method	Shared Inventory
