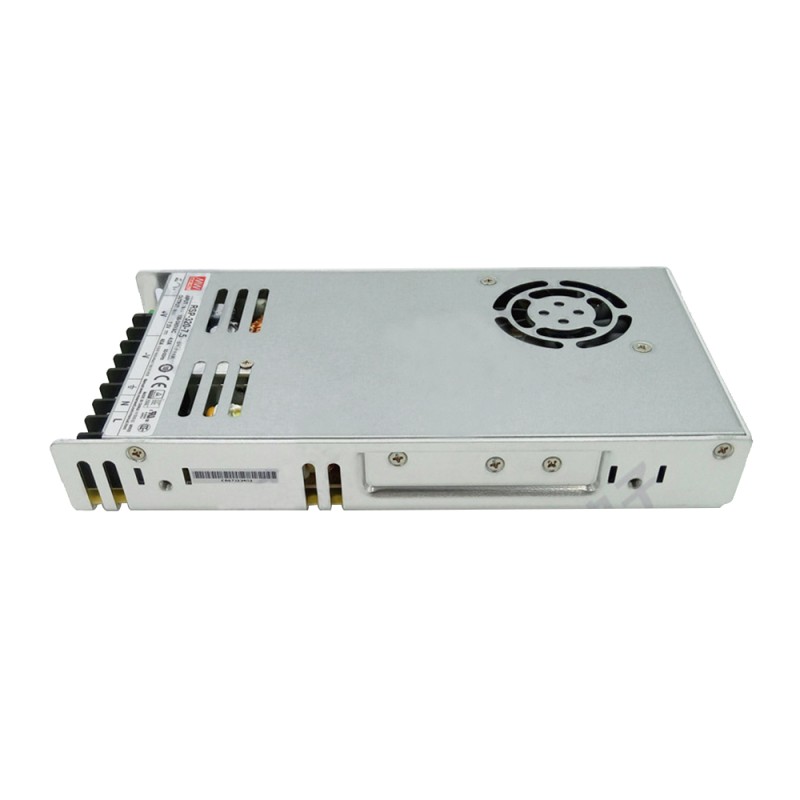

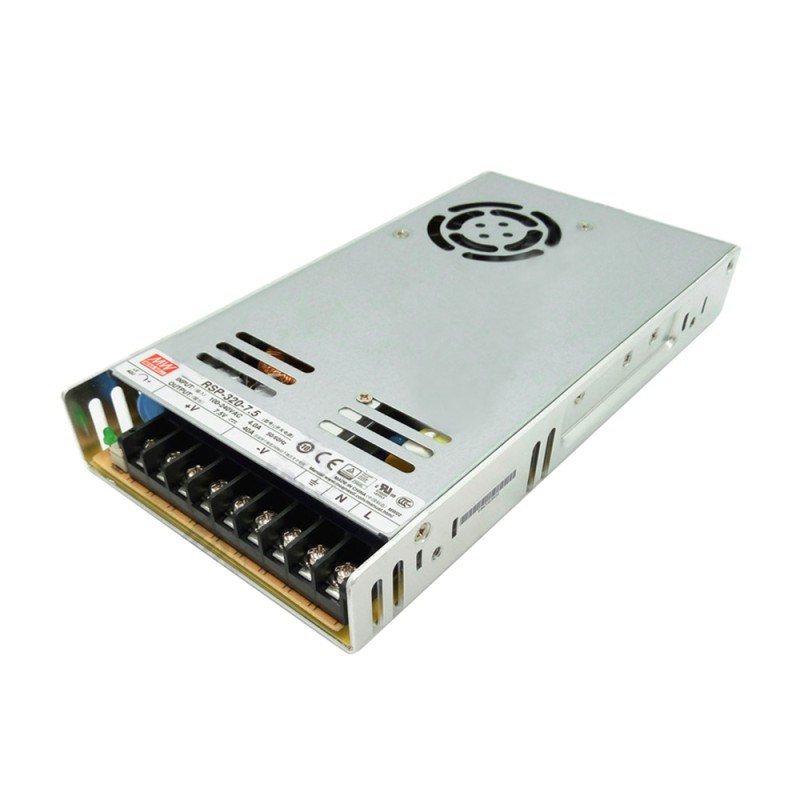

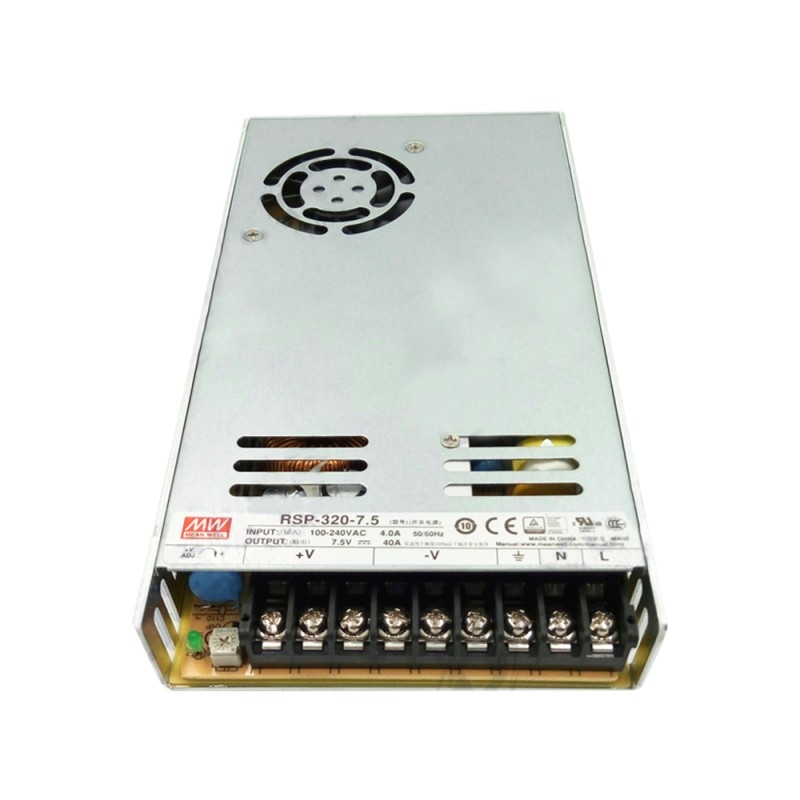

RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function

RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
Pre-order
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function - RSP-320-7.5 | StepperOnline CA
RSP-320-7.5
Output Voltage(VDC)7.5
Power(W)300
Input Voltage(VAC/VDC)88 - 264 / 124 - 370
Question

Downloads

RSP-320.pdfPDF · 887.66KB
Same series
ModelOutput Voltage(VDC)Power(W)Input Voltage(VAC/VDC)PriceStock
ERP-200-1212200.4180 - 264 / 254 - 370—C$42.05Backorder
ERP-200-2424199.92180 - 264 / 254 - 370—C$42.05Backorder
ERP-350-1212320.4180 - 264 / 254 - 370—C$53.00Backorder
ERP-350-2424350.4180 - 264 / 254 - 370—C$53.00Backorder
ERPF-400-121236090 - 264 / 127 - 370—C$61.06Backorder
ERPF-400-2424400.890 - 264 / 127 - 370—C$61.06Backorder
HRP-600-242464885 - 264 / 120 - 370—C$268.13Backorder
HRPG-1000-2424100890 - 264 / 127 - 370—C$273.60In stock
KNX-20E-640-SALE————C$87.00In stock
LE-201-3636201115 / 230—C$21.61In stock
LE-250-3636250115 / 230—C$21.61In stock
LE-250-4848250115 / 230—C$21.61In stock
LE-350-3636350115 / 230—C$25.93In stock
LE-350-36-USED36350115 / 230—C$17.86In stock
LE-350-4848350115 / 230—C$25.93In stock
LE-350-6060350115 / 230—C$25.93In stock
LE-400-2424400115 / 230—C$28.80In stock
LE-400-3636400115 / 230—C$28.80In stock
LE-400-4848400115 / 230—C$28.80In stock
LM100-10C051212-355,12,-129490 - 264/120 - 370—C$26.22Backorder
LM100-10C051515-305,15,-159590 - 264/120 - 370—C$26.22Backorder
LM100-10C052412-205, 24, 129690 - 264/120 - 370—C$26.22Backorder
LM100-10D0524-305,249790 - 264/120 - 370—C$25.07Backorder
LM100-10D1224-2012,249690 - 264/120 - 370—C$25.07Backorder
LM100-20B0559085 - 264/120 - 370—C$15.73Backorder
LM100-20B121210285 - 264/120 - 370—C$14.14Backorder
LM100-20B151510585 - 264/120 - 370—C$14.14Backorder
LM100-20B242410885 - 264/120 - 370—C$13.46Backorder
LM100-20B3636100.885 - 264/120 - 370—C$14.14Backorder
LM100-20B4848110.485 - 264/120 - 370—C$14.14Backorder
View all in category
RSP-320-7.5 MEANWELL 300W 7.5VDC 40A 115/230VAC Single Output With PFC Function
Features Brand MEANWELL 7.5V DC 40A output AC input voltage range: 88 ~ 264VAC Rated power: 30... Read More
0 reviews • Write a review
from
C$79.49
5 + C$77.17
10 + C$74.98
50 + C$72.91
100 + C$70.95

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

Features

  • Brand MEANWELL
  • 7.5V DC 40A output
  • AC input voltage range: 88 ~ 264VAC
  • Rated power: 300W
  • Single and two phase wide input range 85~550VAC
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Forced air cooling by built-in DC Fan with fan speed control function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional conformal coating
  • LED indicator for power on
  • 3 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application
Electrical Specification
Efficiency(%) 88%
Max. Output Current(A) 40
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 215 x 115 x 30
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 88 - 264 / 124 - 370
Output Voltage(VDC) 7.5
PFC Function Yes
Power Type Switching Power Supply
Power(W) 300

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

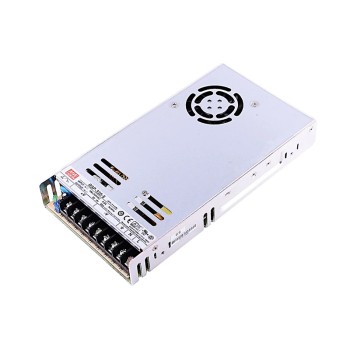

CN On Sale - RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function
