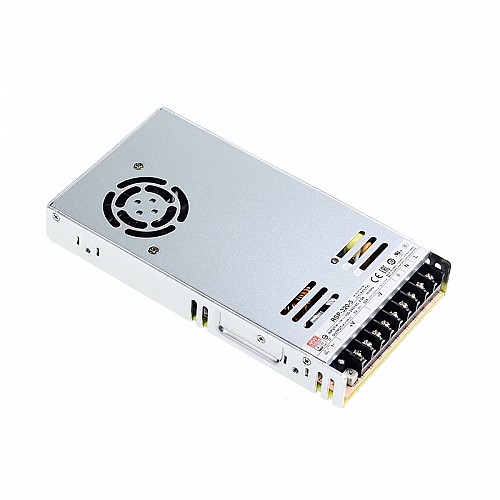

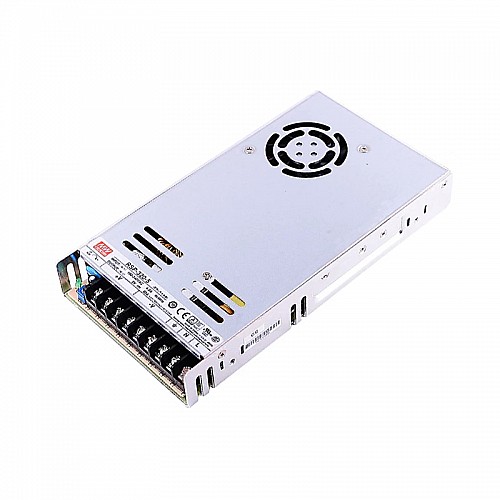

CN On Sale - RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function

RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function - RSP-320-5 | StepperOnline CA
RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function - RSP-320-5 | StepperOnline CA
-34 %
RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function - RSP-320-5 | StepperOnline CA
RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function - RSP-320-5 | StepperOnline CA
CN On Sale - RSP-320-5 MEANWELL 300W 5VDC 60A 115/230VAC Single Output With PFC Function
0 reviews - Write a review
C$94.93
C$63.12
  • In Stock: 10000
  • Brand: MEANWELL
  • Model: CN-RSP-320-5
  • Gross Weight: 0.99kg
  • Certificated: ISO, CE, RoHS
Sold: 0

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

  • Brand MEANWELL
  • 5V DC 60A output
  • AC input voltage range: 88 ~ 264VAC
  • Rated power: 300W
  • Single and two phase wide input range 85~550VAC
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Forced air cooling by built-in DC Fan with fan speed control function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional conformal coating
  • LED indicator for power on
  • 3 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application
Product Type
Product Type Switching Power Supply
Electrical Specification
Efficiency(%) 83%
Max. Output Current(A) 60
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 215 x 115 x 30
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 88 - 264 / 124 - 370
Output Voltage(VDC) 5
PFC Function Yes
Power(W) 300
Physical Specification
Inventory Method Dedicated Inventory
File Size
RSP-320.pdf 887.66KB Download
