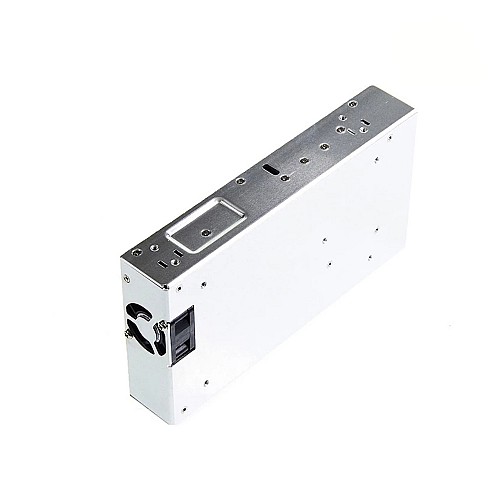

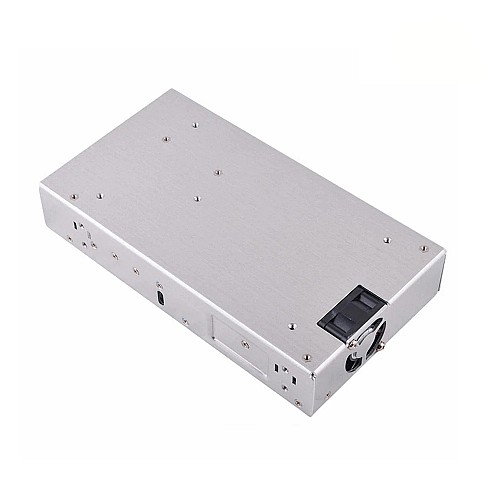

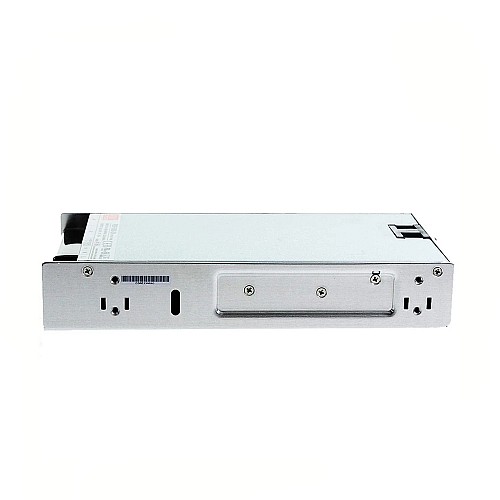

RSP-500-24 MEANWELL 504W 24VDC 21A 115/230VAC Single Output With PFC Function
0 reviews - Write a review
C$144.33
5 + C$140.13
10 + C$136.15
50 + C$132.39
100 + C$128.83
  • In Stock: Pre-order
  • Brand: MEANWELL
  • Model: RSP-500-24
  • Gross Weight: 1.31kg
  • Certificated: ISO, CE, RoHS
Sold: 10

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
What Does Pre-order Mean?
A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

  • Brand MEANWELL
  • 24V DC 21A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 501W
  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90.5%
  • Forced air cooling by built-in DC Fan(Note.5)
  • Built-in remote ON-OFF control / remote sense / DC OK signal
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 3 years warranty

Applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application
Electrical Specification
Efficiency(%) 89%
Max. Output Current(A) 21
Power Supply Specification
Brand MEANWELL
Dim.(LxWxH)(mm) 230 x 127 x 40.5
Input Frequency(Hz) 47 - 63
Input Voltage(VAC/VDC) 88 - 264 / 120 - 370
Output Voltage(VDC) 24
PFC Function Yes
Power Type Switching Power Supply
Power(W) 504
Physical Specification
Inventory Method Dedicated Inventory
File Size
RSP-500.pdf 903.8KB Download
