Dual Shaft Nema 23 CNC Stepper Motor 3.4Nm(481.48oz.in) 60x60x100mm 8 Wires

Hot

Dual Shaft Nema 23 CNC Stepper Motor 3.4Nm(481.48oz.in) 60x60x100mm 8 Wires

4 reviews - Write a review

C$57.26

5 + C$54.57

10 + C$52.11

50 + C$49.86

100 + C$47.80

In Stock: 10000
Model: 24HS39-3008D
Gross Weight: 1.80kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

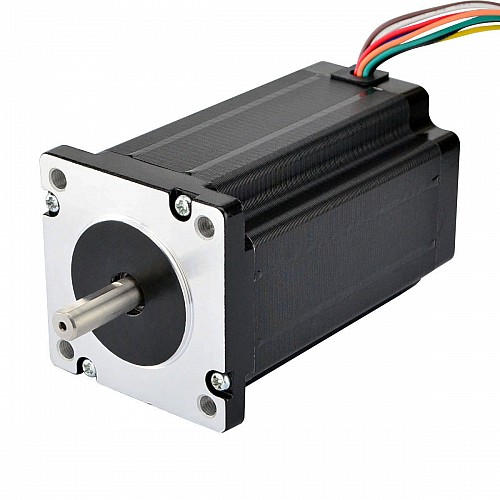

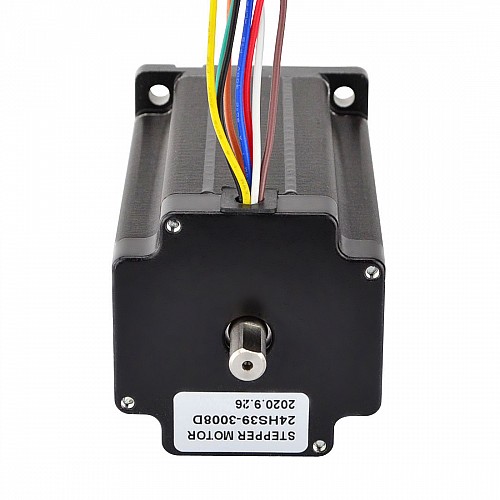

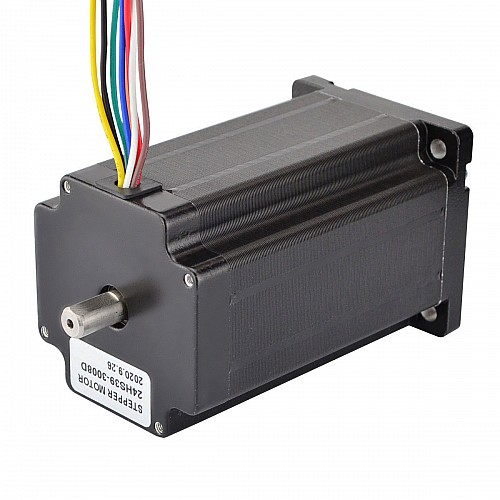

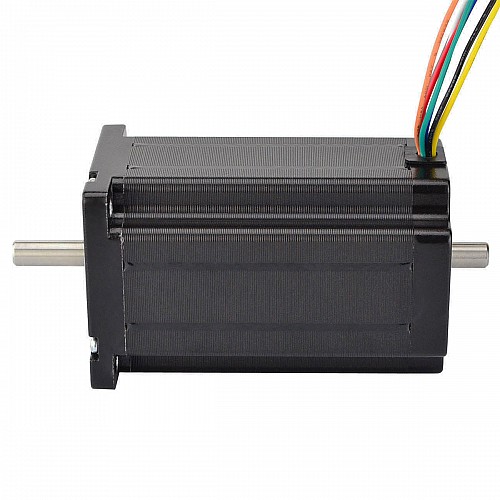

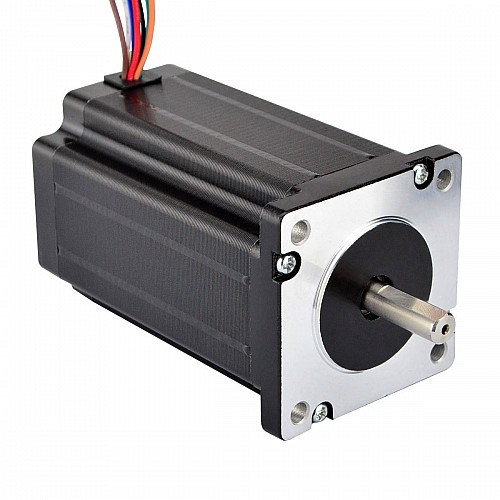

This is the strongest nema 23 stepper motor, it with step angle 1.8deg and size 60x60x100mm. The installation dimensions are the same as the conventional Nema 23 motor, with greater torque. It has 8 wires, which have three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. A rear shaft can mount encoder, hand wheel or equals. It's holding torque reach 2.48Nm(351.3oz.in) with unipolar connection and 3.4Nm(481.48oz.in) with bipolar connection.

Electrical Specification

Manufacturer Part Number: 24HS39-3008D
Motor Type: Unipolar/Bipolar
Step Angle: 1.8deg
Holding Torque(Bipolar): 3.4Nm(481.48oz.in)
Holding Torque(Unipolar): 2.48Nm(351.3oz.in)
Rated Current(Bipolar Serial): 2A
Rated Current(Bipolar Parallel): 4A
Rated Current(Unipolar): 2.8A
Phase Resistance(Bipolar Serial): 2.8ohms
Phase Resistance(Bipolar Parallel): 0.7ohms
Phase Resistance(Unipolar): 1.4ohms
Inductance(Bipolar Serial): 12.0mH±20%(1KHz)
Inductance(Bipolar Parallel): 3.0mH±20%(1KHz)
Inductance(Unipolar): 3.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 100mm
Shaft Diameter: Φ8.0mm
Front Shaft Length: 24mm
Rear Shaft Length: 13mm
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 400mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Red/Blue	Yellow/Black	White/Brown	Orange/Green

The applicable bracket for this motor is ST-M2.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	340
Holding Torque(oz.in)	481.48
Inductance(mH)	3
Phase Resistance(ohms)	0.7
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	100
Frame Size(mm)	Nema 23 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	8
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	1600
